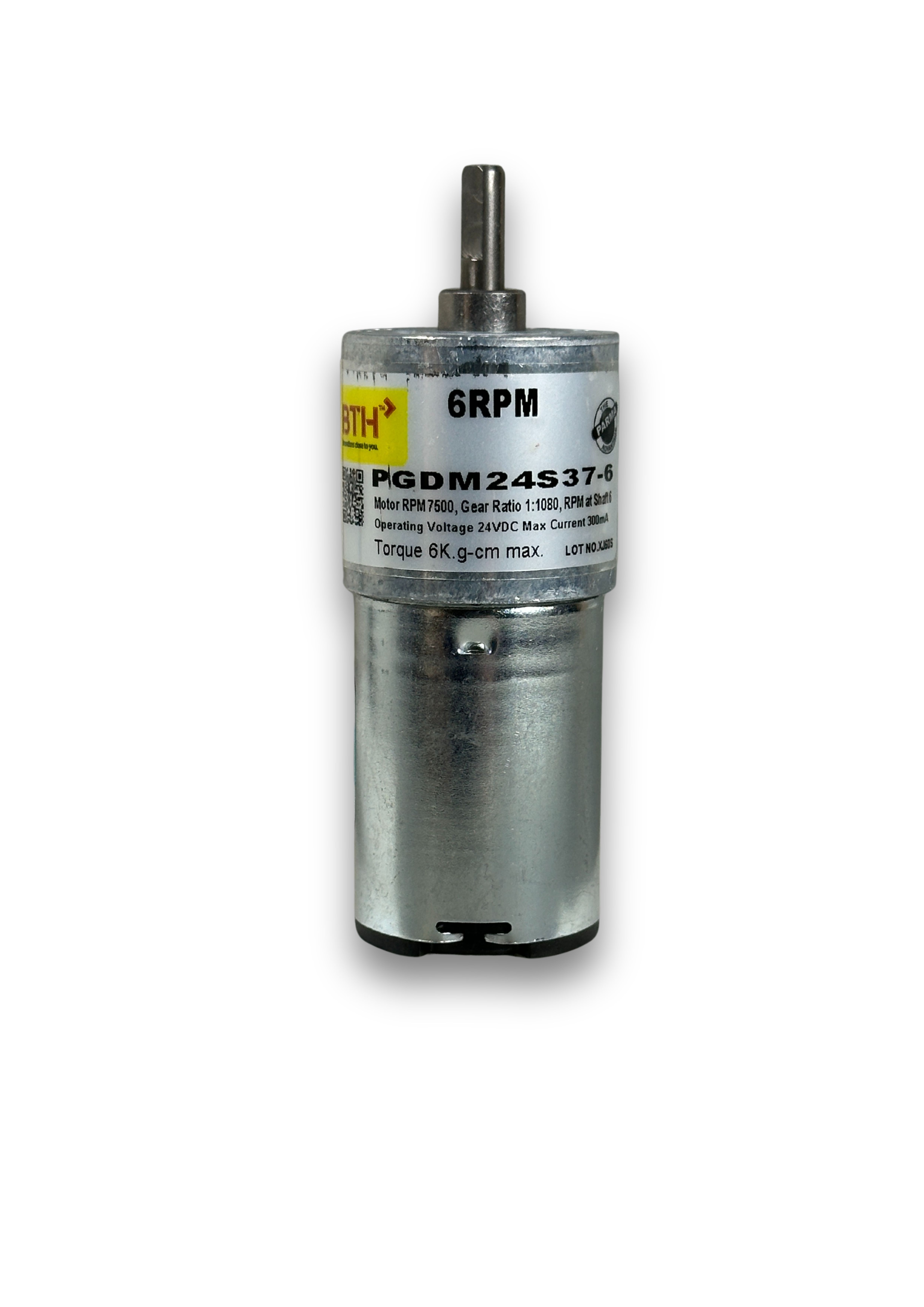

PGDM-24S37-6||24V DC Geared Motors, RPM 6, Gear Ratio 1:1080, Length 81.7mm
PGDM-24S37-6||24V DC Geared Motors, RPM 6, Gear Ratio 1:1080, Length 81.7mm

PGDM-24S37-6||24V DC Geared Motors, RPM 6, Gear Ratio 1:1080, Length 81.7mm

In stock
SKU
PGDM-24S37-6
Special Price ₹1,419.80 Regular Price ₹2,290.00
(18% GST Extra)
Add to Wish List
  • Eccentric output shaft gearbox.
  • Low noise and low current.
  • Long life gearbox.
  • Supply Voltage 24VDC
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Model Speed (rpm)  Torque (kgf-cm) Gear Ratio 1:
PGDM-24S37-6 6 6 1080
KD3448S1 Motor Specifications
Voltage 24V DC Current No Load - 150 mA,
at max. efficiency -500mA, at stall - 3.2 A
Speed No Load - 5200 r/min,
at max. efficiency 4500 r/min
Weight 290g
Torque At max. efficiency - 80 gf-cm, at stall - 830 gf-cm

No specifications available for this product.
