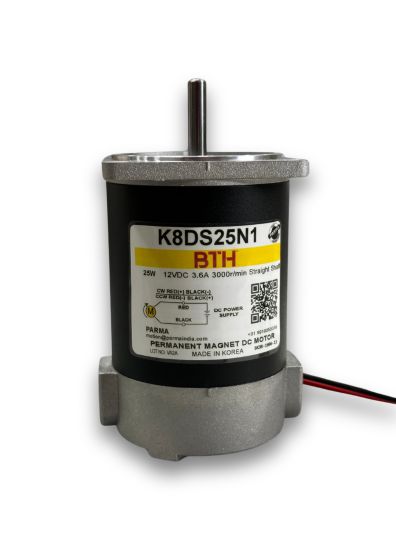

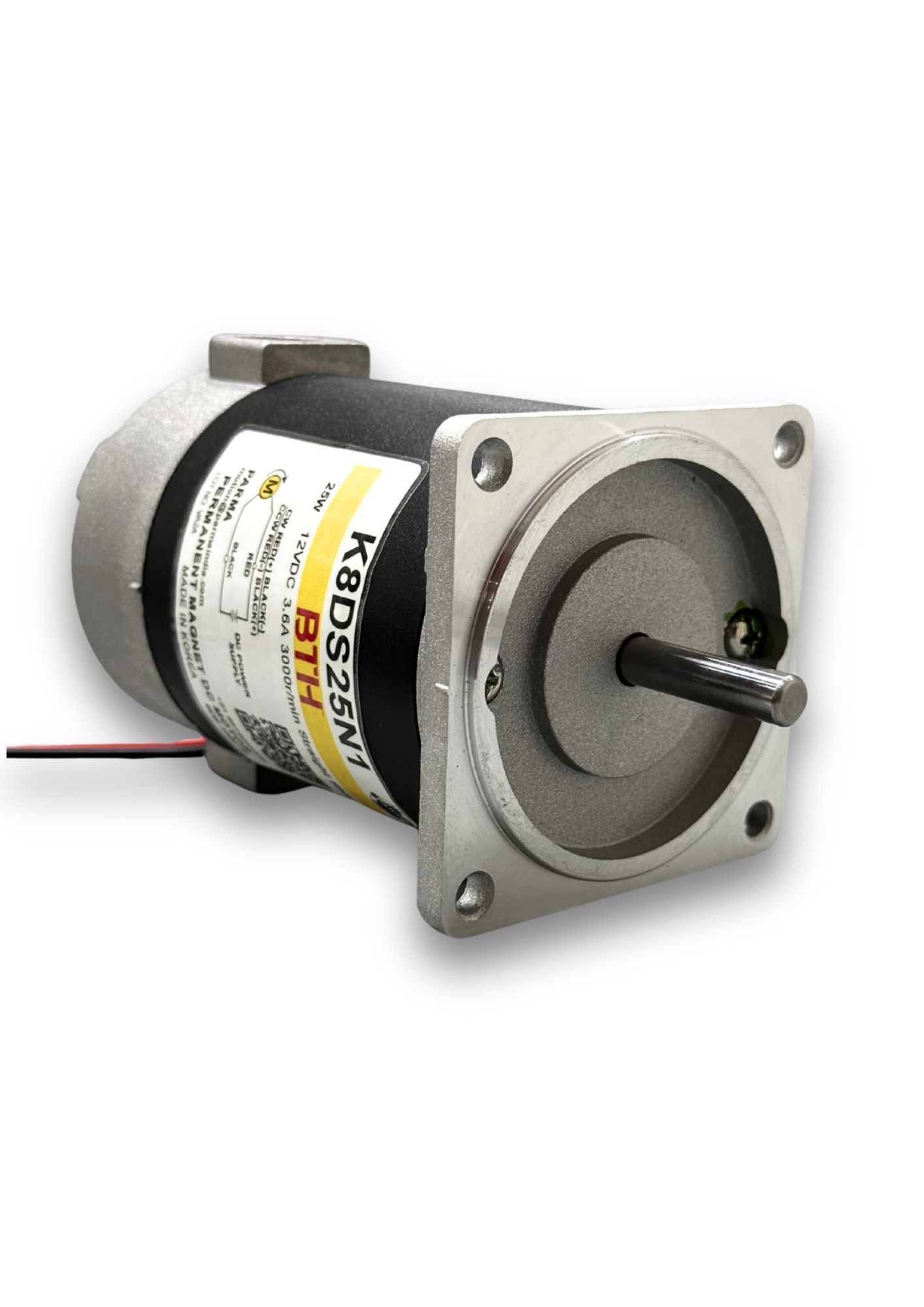

K8DS25N1||25 Watt 12V DC Motor, Straight Shaft, Flange 80mm

K8DS25N1||25 Watt 12V DC Motor, Straight Shaft, Flange 80mm

K8DS25N1||25 Watt 12V DC Motor, Straight Shaft, Flange 80mm

K8DS25N1||25 Watt 12V DC Motor, Straight Shaft, Flange 80mm

Be the first to review this product

In stock

SKU

K8DS25N1

Special Price ₹3,971.50 Regular Price ₹6,110.00

(18% GST Extra)

Qty

Add to Wish List

Permanent Magnet DC Motors are the best solution to motion control and power transmission applications where compact size, wide operating speed range, ability to adapt to arrange of power are required.
Their ability to produce high torque at low speed makes them suitable substitutes for geared motors in many applications.
Compared to the same sized AC motor, it is easy to control the speeds and change the rotation direction with high efficiency.
Straight Shaft

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Supply Voltage: 12VDC
(No Load) Speed(r/min): 3300
(No Load) Current(A): 1.8
(Rated Load) Output(W): 25W
(Rated Load)Speed(r/min): 3100
(Rated Load) Torque(kgf-cm): 0.811
(Rated Load) Current(A): 3.3
(Stall) Torque(kgf-cm): 15.5
(Stall) Current(A): 48

Product Variants

No specifications available for this product.
