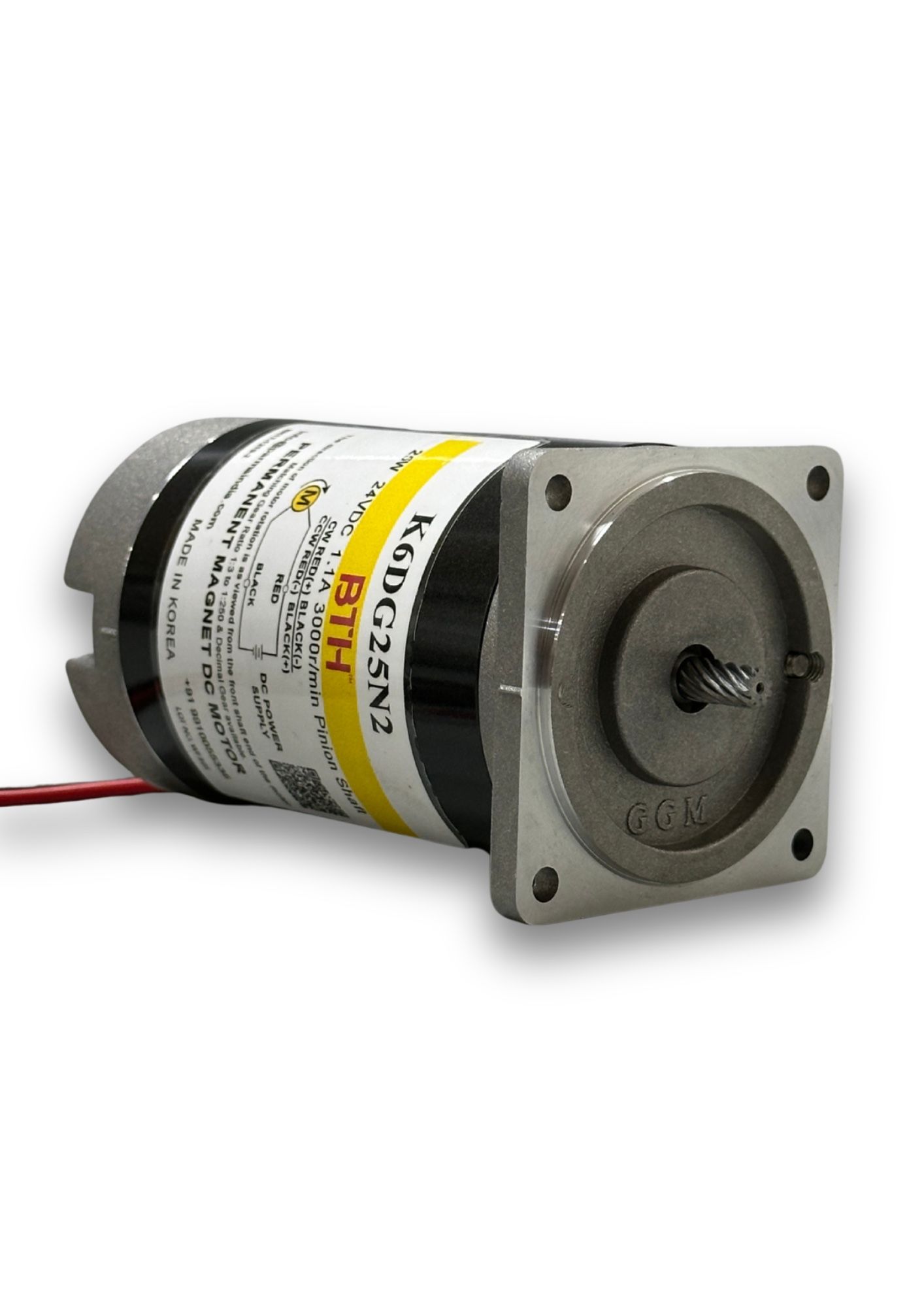

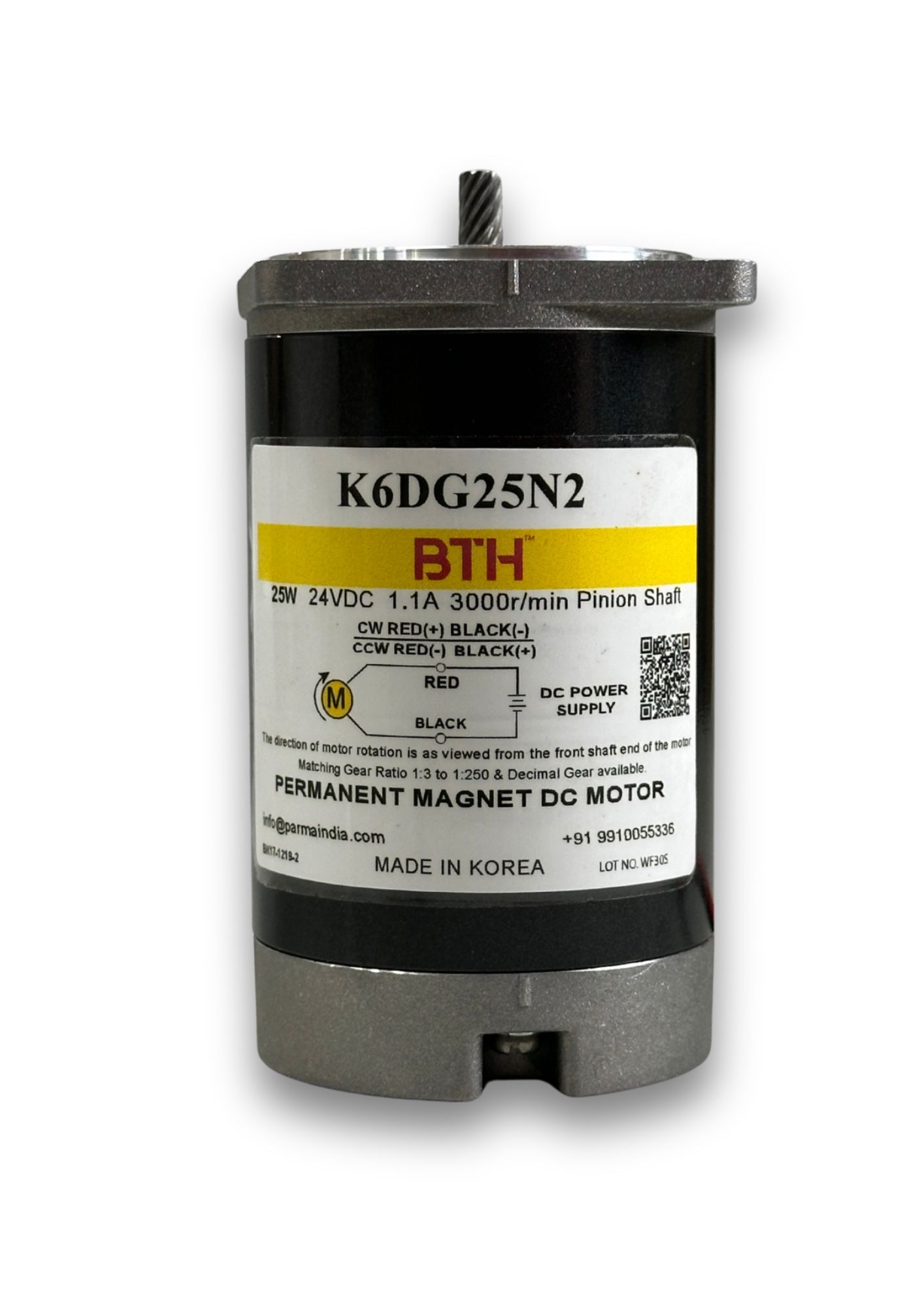

K6DG25N2||25 Watt 24V DC Motor, Pinion Shaft, Flange 60mm

K6DG25N2||25 Watt 24V DC Motor, Pinion Shaft, Flange 60mm

K6DG25N2||25 Watt 24V DC Motor, Pinion Shaft, Flange 60mm

K6DG25N2||25 Watt 24V DC Motor, Pinion Shaft, Flange 60mm

Be the first to review this product

In stock

SKU

K6DG25N2

Special Price ₹3,399.50 Regular Price ₹5,230.00

(18% GST Extra)

Qty

Add to Wish List

Permanent Magnet DC Motors are the best solution to motion control and power transmission applications where compact size, wide operating speed range, ability to adapt to arrange of power are required.
Their ability to produce high torque at low speed make them suitable substitutes for gearmotors in many application.
Compare to the same size AC motor, it is easy to control the speeds and changes the rotation direction with high efficiency.

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Supply Voltage: 24VDC
(No Load) Speed(r/min): 3050
(No Load) Current(A): 0.8
(Rated Load) Output(W): 25
(Rated Load)Speed(r/min): 2900
(Rated Load) Torque(kgf-cm): 0.811
(Rated Load) Current(A): 1.9
(Stall) Torque(kgf-cm): 18
(Stall) Current(A): 29

Product Variants

No specifications available for this product.
