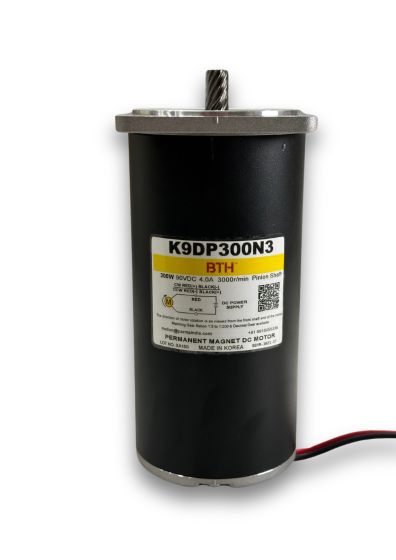

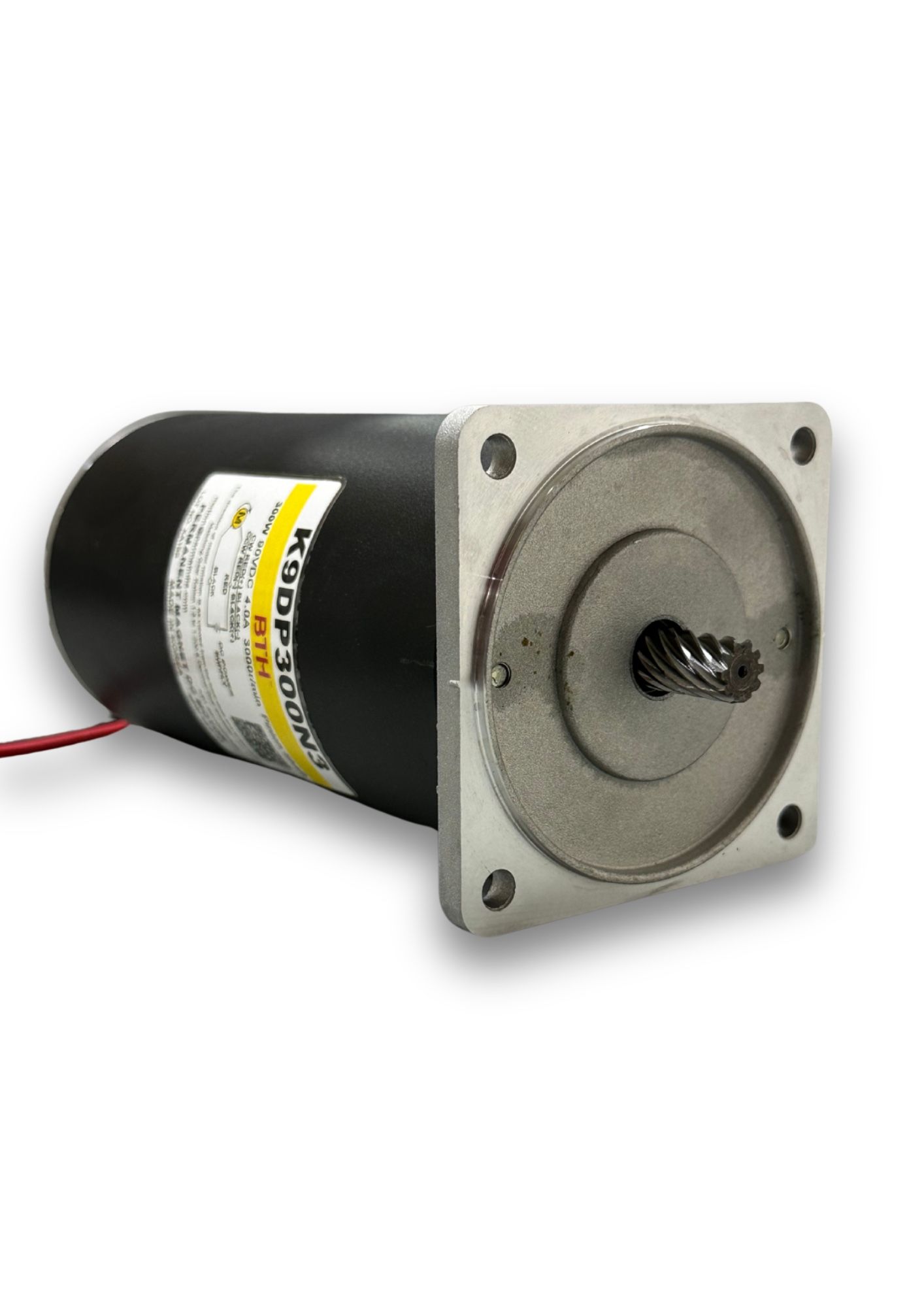

K9DP300N3 ||300 Watt DC Motor, Pinion Shaft, Flange 90mm, Supply 90V DC
K9DP300N3 ||300 Watt DC Motor, Pinion Shaft, Flange 90mm, Supply 90V DC K9DP300N3 ||300 Watt DC Motor, Pinion Shaft, Flange 90mm, Supply 90V DC

K9DP300N3 ||300 Watt DC Motor, Pinion Shaft, Flange 90mm, Supply 90V DC

Be the first to review this product
Out of stock
SKU
K9DP300N3
Special Price ₹16,640.00 Regular Price ₹25,600.00
(18% GST Extra)
  • Permanent Magnet DC Motors are the best solution to motion control and power transmission applications where compact size, wide operating speed range, ability to adapt to arrange of power are required.
  • Their ability to produce high torque at low speed make them suitable substitutes for gearmotors in many application.
  • Compare to the same size AC motor, it is easy to control the speeds and changes the rotation direction with high efficiency.

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Supply Voltage: 90VDC
  • (No Load) Speed(r/min): 3300
  • (No Load) Current(A): 0.5
  • (Rated Load) Output(W): 300W
  • (Rated Load)Speed(r/min): 3000
  • (Rated Load) Torque(kgf-cm): 9.74
  • (Rated Load) Current(A): 4
  • (Stall) Torque(kgf-cm): 125
  • (Stall) Current(A): 58
Product Variants

No specifications available for this product.

Reviews
Write Your Own Review
You're reviewing:K9DP300N3 ||300 Watt DC Motor, Pinion Shaft, Flange 90mm, Supply 90V DC
Your Rating
Downloads
document K9DP300N3-Datasheet (1.20 MB)
