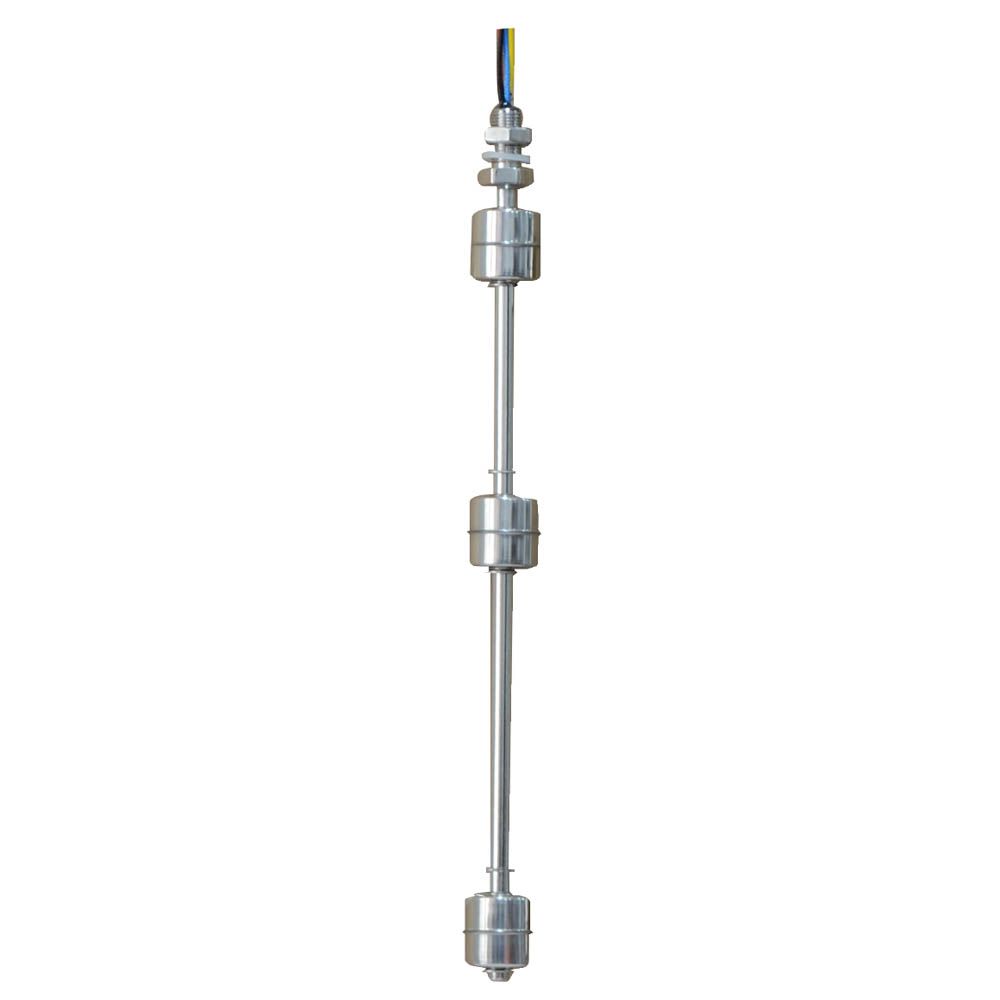

PSB3-300-3-3-S ||300mm Vertical level Sensor, three Ball three Point, SS Body
In stock
SKU
PSB3-300-3-3-S
Special Price
₹1,950.00
Regular Price
₹3,000.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Locking ring: SS304
- Float Ball: SS304 (Float Ball 2828)
- Float stem: SS304
- O Ring: Transparent silicone material
- Nuts: M12 SS304
- Wire: UL3122 24AWG, Silicone insulated for high temp. blue,black & red wire
- Operation Life: 1*10⁶ (DC: 5V, 10mA)
- Insulation Resistance: ≥100MΩ
- Contact Resistance: ≤ 0.4Ω
- Max. Limiting Current: 1.0A
- Max. Switching Current: 0.5A
- Max. Switching Voltage: 100V
- Max. Contact Power: 10W
- Switch Type: Normally Open (NO)
- Min. Shock Resistance: 30G
- Suitable Temperature: -40°C ~ 120°C
- Min. Vibration: 30G(10~50Hz)
- For: Liquid
