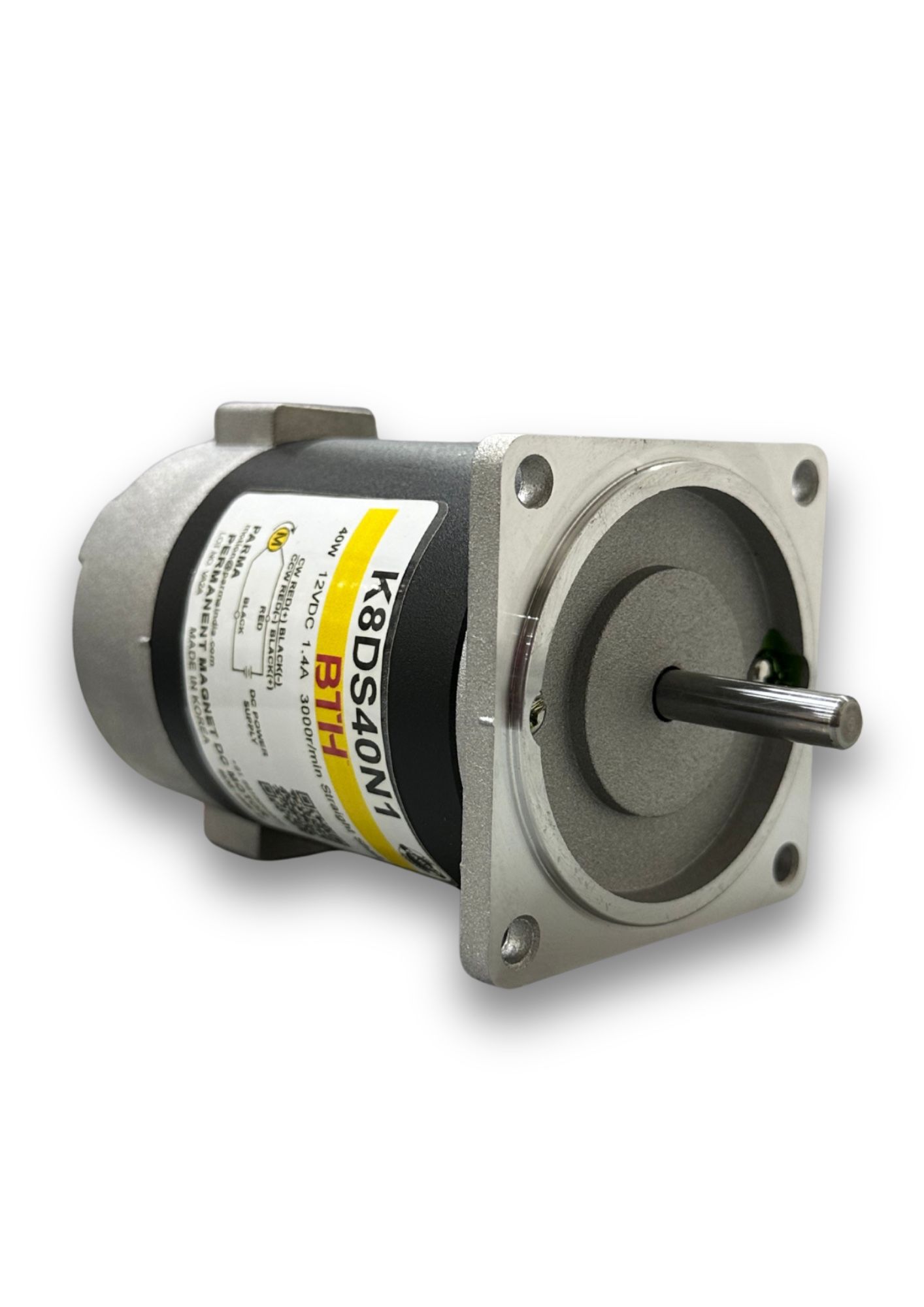

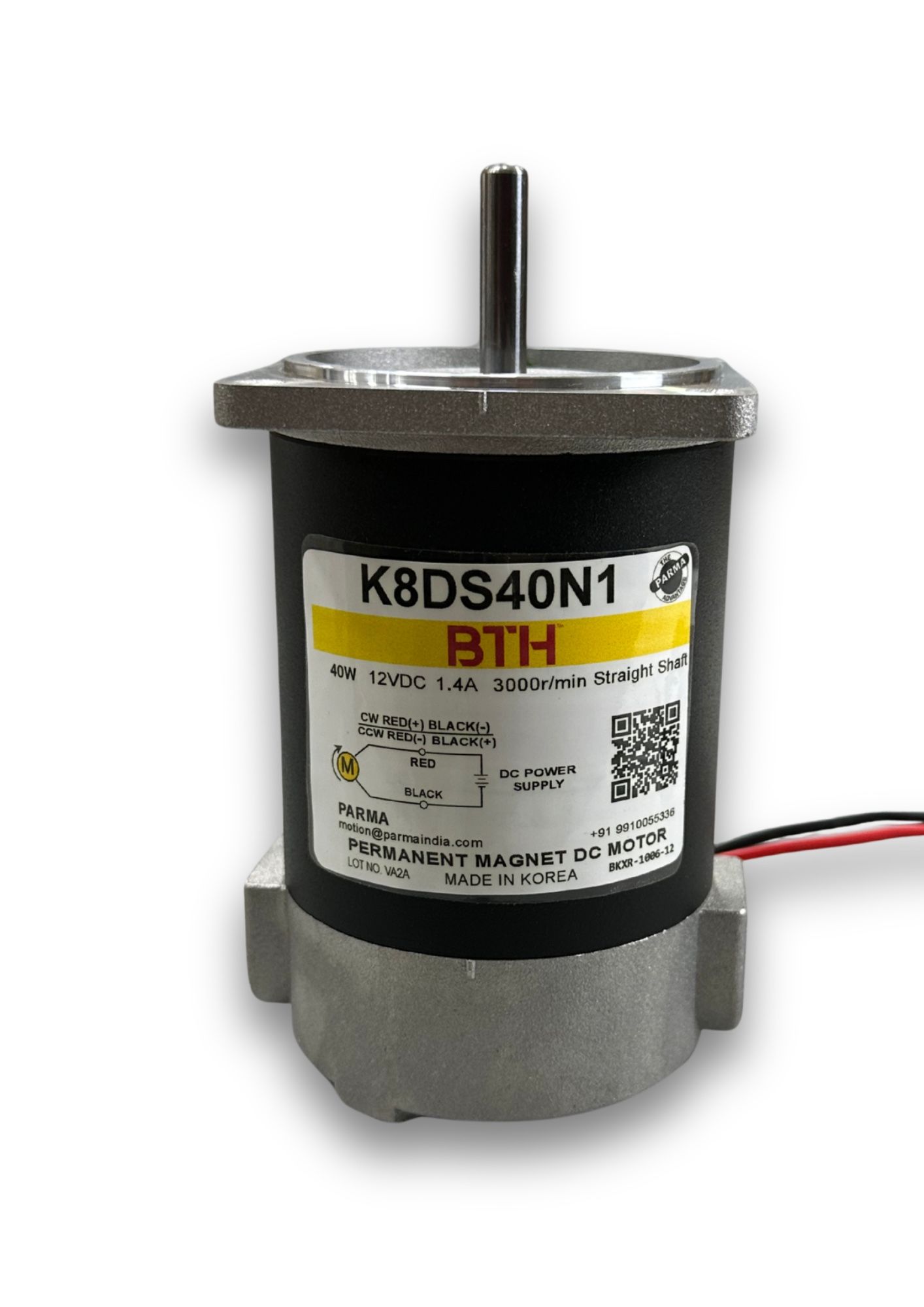

K8DS40N1||40 Watt 12V DC Motor, Straight Shaft, Flange 80mm
K8DS40N1||40 Watt 12V DC Motor, Straight Shaft, Flange 80mm K8DS40N1||40 Watt 12V DC Motor, Straight Shaft, Flange 80mm

K8DS40N1||40 Watt 12V DC Motor, Straight Shaft, Flange 80mm

In stock
SKU
K8DS40N1
Special Price ₹4,725.50 Regular Price ₹7,270.00
(18% GST Extra)
Add to Wish List
  • Permanent Magnet DC Motors are the best solution to motion control and power transmission applications where compact size, wide operating speed range, ability to adapt to arrange of power are required.
  • Their ability to produce high torque at low speed makes them suitable substitutes for geared motors in many applications.
  • Compared to the same sized AC motor, it is easy to control the speeds and change the rotation direction with high efficiency.
  • Straight Shaft
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Supply Voltage: 12VDC
  • (No Load) Speed(r/min): 3300
  • (No Load) Current(A): 1.5
  • (Rated Load) Output(W): 40W
  • (Rated Load)Speed(r/min): 3000
  • (Rated Load) Torque(kgf-cm): 1.3
  • (Rated Load) Current(A): 4.8
  • (Stall) Torque(kgf-cm): 15
  • (Stall) Current(A): 47

No specifications available for this product.
