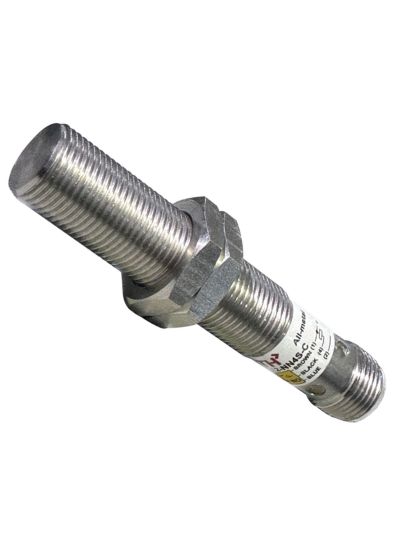

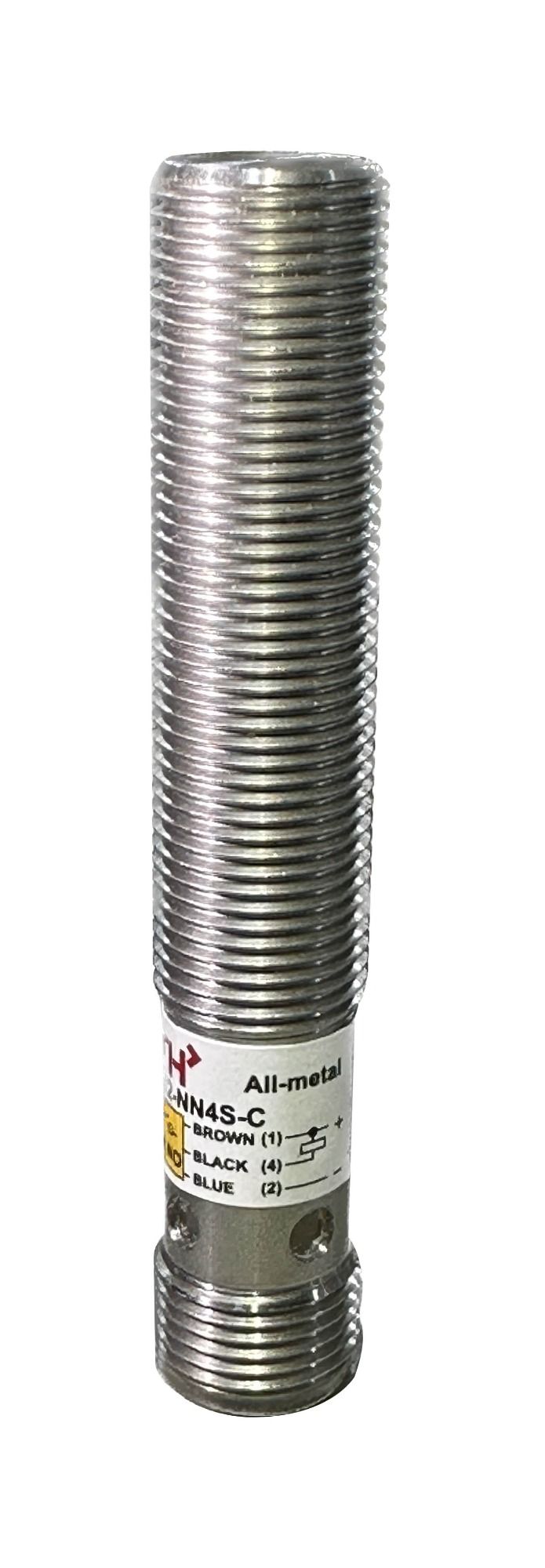

BIR12-NN4S-C ||4Pin M12 Connector Type, Full Stainless Steel Inductive Proximity Sensor, Diameter 12mm, Sensing Range 4mm, NPN NO
BIR12-NN4S-C ||4Pin M12 Connector Type, Full Stainless Steel Inductive Proximity Sensor, Diameter 12mm, Sensing Range 4mm, NPN NO BIR12-NN4S-C ||4Pin M12 Connector Type, Full Stainless Steel Inductive Proximity Sensor, Diameter 12mm, Sensing Range 4mm, NPN NO

BIR12-NN4S-C ||4Pin M12 Connector Type, Full Stainless Steel Inductive Proximity Sensor, Diameter 12mm, Sensing Range 4mm, NPN NO

Be the first to review this product
In stock
SKU
BIR12-NN4S-C
Special Price ₹3,315.00 Regular Price ₹5,100.00
(18% GST Extra)
Add to Wish List
  • One piece stainless steel housing
  • Exceptionally resistant to water jets and aggressive cleansing agents
  • Resistant to sharp edged hot shavings
  • Easy to clean even using harsh methods is no problem
  • Pressure resistant up to 80 bar
  • Perfect solution to maintain clean and hygiene environment
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Function: Make NPN (NO)
  • Size: M12
  • Detecting Distance: 4mm
  • Standard sensing object: 12 x 12 x 1mm (Iron)
  • Detectable object: Ferrous metal 100%, The sensing distance decreases with non-ferrous metal i.e. stainless steel 60%, brass 50%, aluminum 40%, copper 30%
  • Response Frequency: 300Hz
  • Power Supply (Operating Voltage): 10 to 30 VDC, ripple (p-p)
  • Load current: 150mA
  • No load: <10mA
  • Leakage current: <0.01mA
  • Residual Voltage: <1.5V
  • Indicator: Operating LED indicator
  • Protection Circuit: Surge protection circuit, Over current, reverse polarity protection
  • Operating temperature: -25ºC ~ 70ºC
  • Insulation resistance: 50MΩ min (at 500VDC) between current-carrying parts and case
  • Dielectric strength: 1000VAC, 50/60 Hz for 1 minute between current-carrying parts and case
  • Degree of protection: IP67
  • Connection method: M12 4 Pin Connector
  • Material: Stainless Steel
  • Weight: Approx. 50g
Product Variants

No specifications available for this product.

Reviews
Write Your Own Review
You're reviewing:BIR12-NN4S-C ||4Pin M12 Connector Type, Full Stainless Steel Inductive Proximity Sensor, Diameter 12mm, Sensing Range 4mm, NPN NO
Your Rating
Downloads
document BIR12-NN4S-C-Datasheet (1.31 MB)
