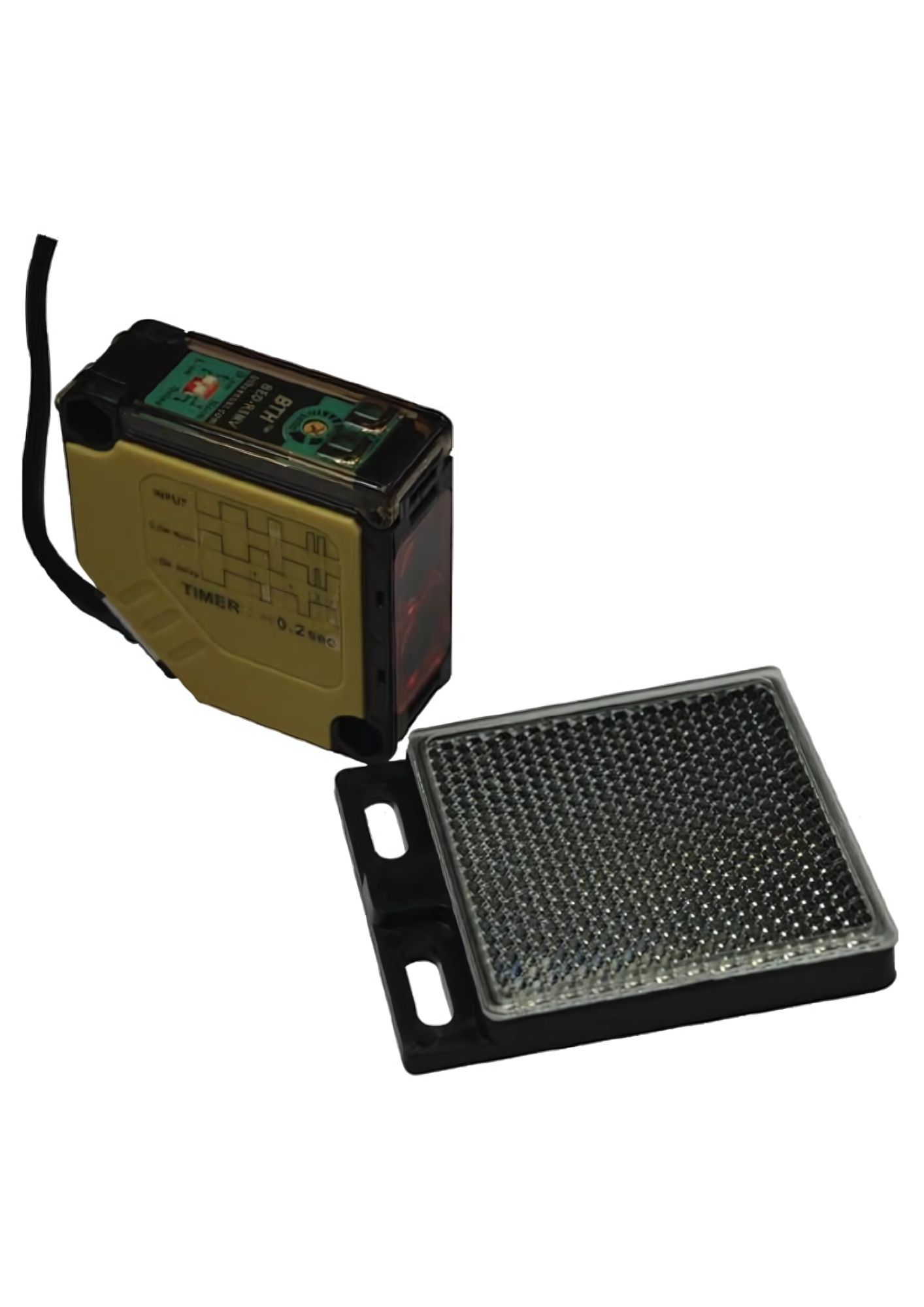

BED-R5MV||50mm Square Body Retroreflective Photo Sensor, Sensing Range 5 Meter, Relay Output

BED-R5MV||50mm Square Body Retroreflective Photo Sensor, Sensing Range 5 Meter, Relay Output

BED-R5MV||50mm Square Body Retroreflective Photo Sensor, Sensing Range 5 Meter, Relay Output

Be the first to review this product

In stock

SKU

BED-R5MV

Special Price ₹3,575.00 Regular Price ₹5,500.00

(18% GST Extra)

Qty

Add to Wish List

Special design of protective hood for dust-proof
Non-spherical optical lens
Visible dual LED Indicator
Selectable PNP/NPN Output
Selectable Light ON/Dark ON mode
Sensitivity Adjuster

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Sensing Type: Retroreflective
Sensing Distance: 5mtr.
Emitting Light: Infrared LED 940 nm
Operating Voltage: 90~260VAC / 24 ~ 30VDC
Current Consumption: 25 mA Max.
Load Current: Relay
Output type (selectable): Relay Out Com/NO
Response Time: 1.5 ms Max.
Time delay function: 0.2 Sec time delay function selectable
Insulation Resistance: 20MΩ min. (DC500V)
Voltage with standability: AC1000V 60Hz for 60 Sec.
Operating Temperature: -20°C ~ + 60°C
Ambient Humidity: 35% ~ 85% RH
Protection Degree: IP65
Material: ABS
Wiring method: Pre-weird Ø4.2 x 2 M / 4-wires
Weight: Approx. 85g
