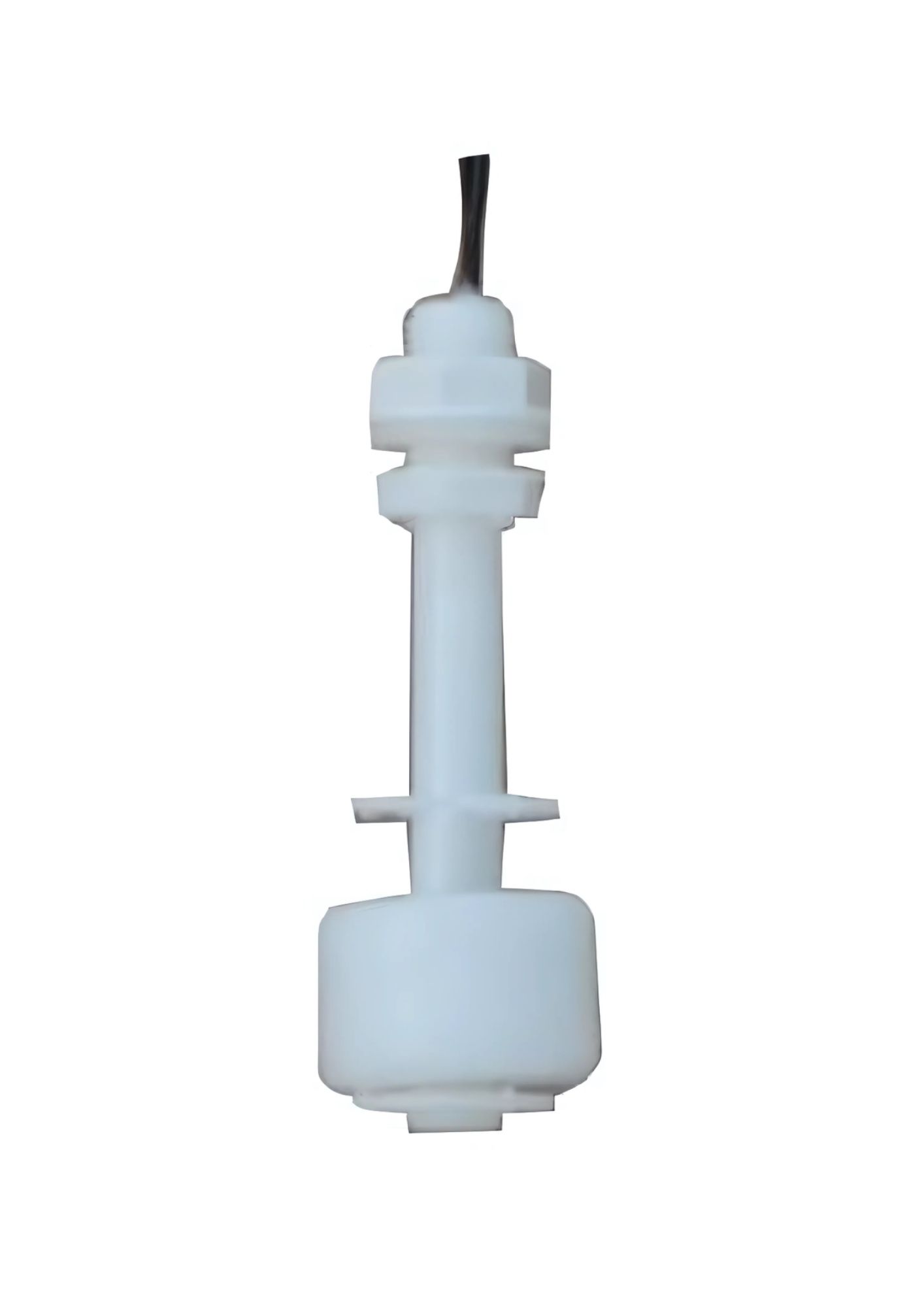

PSA-55-1-1-P ||55mm Vertical Level Sensor, one Ball one Point, Plastic Body

PSA-55-1-1-P ||55mm Vertical Level Sensor, one Ball one Point, Plastic Body

PSA-55-1-1-P ||55mm Vertical Level Sensor, one Ball one Point, Plastic Body

Be the first to review this product

In stock

SKU

PSA-55-1-1-P

Special Price ₹243.75 Regular Price ₹375.00

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Blank: White PP Material
Float Ball: White PP Material
Float Body: White PP Material
Seal Washer: Transparent silicone Pad
Nuts: Beige nylon material
Wire: UL1007 24AWG, black line
Min. Shock Resistance: 30G
Suitable Temperature: -20°C~80°C (Non Freezing)
Min. Vibration: 30G (10~50Hz)
Humidity: 95% RH (80°C)
For: Water
Insulation resistance: ≥ 100MΩ
Contact resistance: ≤ 0.4Ω
Max. limiting Current: 1.0A
Max. Switching Current: 0.5A
Max. Switching Voltage: 100V
Max. Contact Power: 10W
Switch Type: Normally Open (NO)
Switch Operation: Selectable NO or NC by inverting float on unit stem
Reed: 10W
Magnet: Ferrite
Resin: Black resin
Operation Life: 1*10⁶ (DC: 5V, 10mA)
