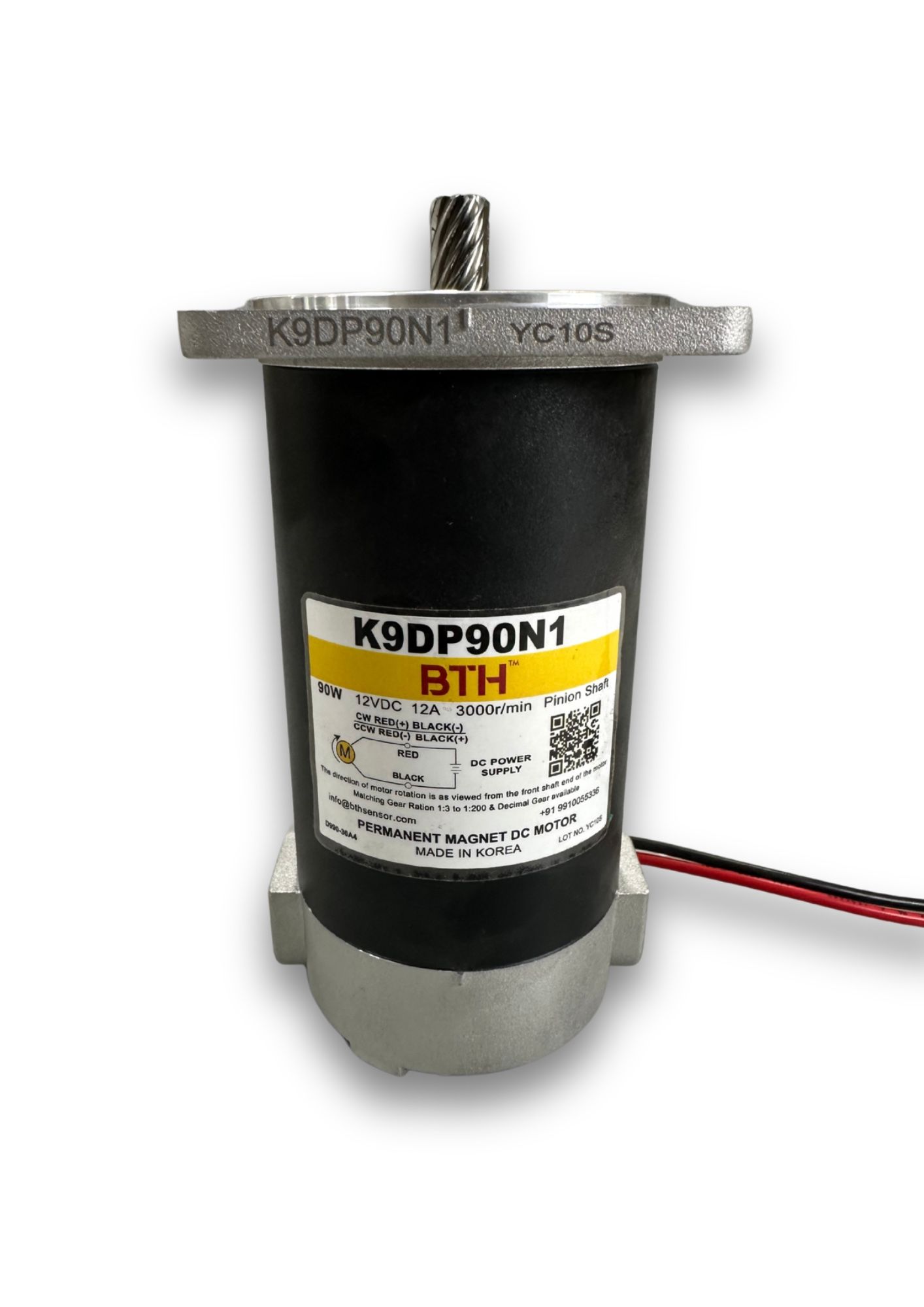

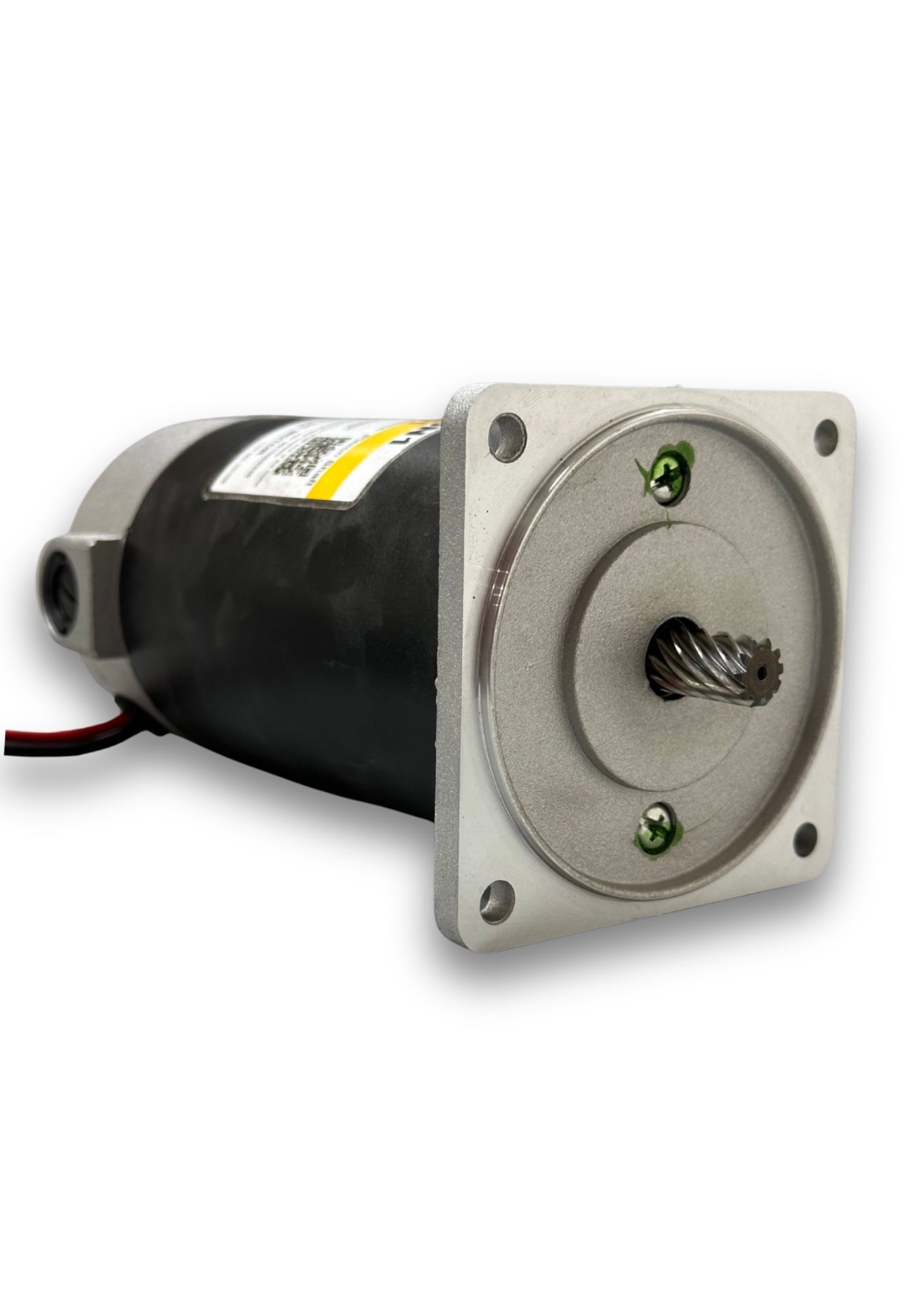

K9DP90N1 ||90 Watt 12V DC Motor, Pinion Shaft, Flange 90mm
K9DP90N1 ||90 Watt 12V DC Motor, Pinion Shaft, Flange 90mm K9DP90N1 ||90 Watt 12V DC Motor, Pinion Shaft, Flange 90mm

K9DP90N1 ||90 Watt 12V DC Motor, Pinion Shaft, Flange 90mm

In stock
SKU
K9DP90N1
Special Price ₹6,194.50 Regular Price ₹9,530.00
(18% GST Extra)
Add to Wish List
  • Permanent Magnet DC Motors are the best solution to motion control
  • nd power transmission applications where compact size, wide operating
  • peed range, ability to adapt to arrange of power.
  • Their ability to produce high torque at low speed make them
  • uitable substitutes for gearmotors in many application.
  • Compare to the same size AC motor, it is easy to
  • ontrol the speeds and changes the rotation direction
  • ith high efficiency.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Supply Voltage: 12VDC
  • (No Load) Speed(r/min): 3400
  • (No Load) Current(A): 3
  • (Rated Load) Output(W): 90
  • (Rated Load)Speed(r/min): 3000
  • (Rated Load) Torque(kgf-cm): 2.92
  • (Rated Load) Current(A): 12
  • (Stall) Torque(kgf-cm): 21
  • (Stall) Current(A): 80
