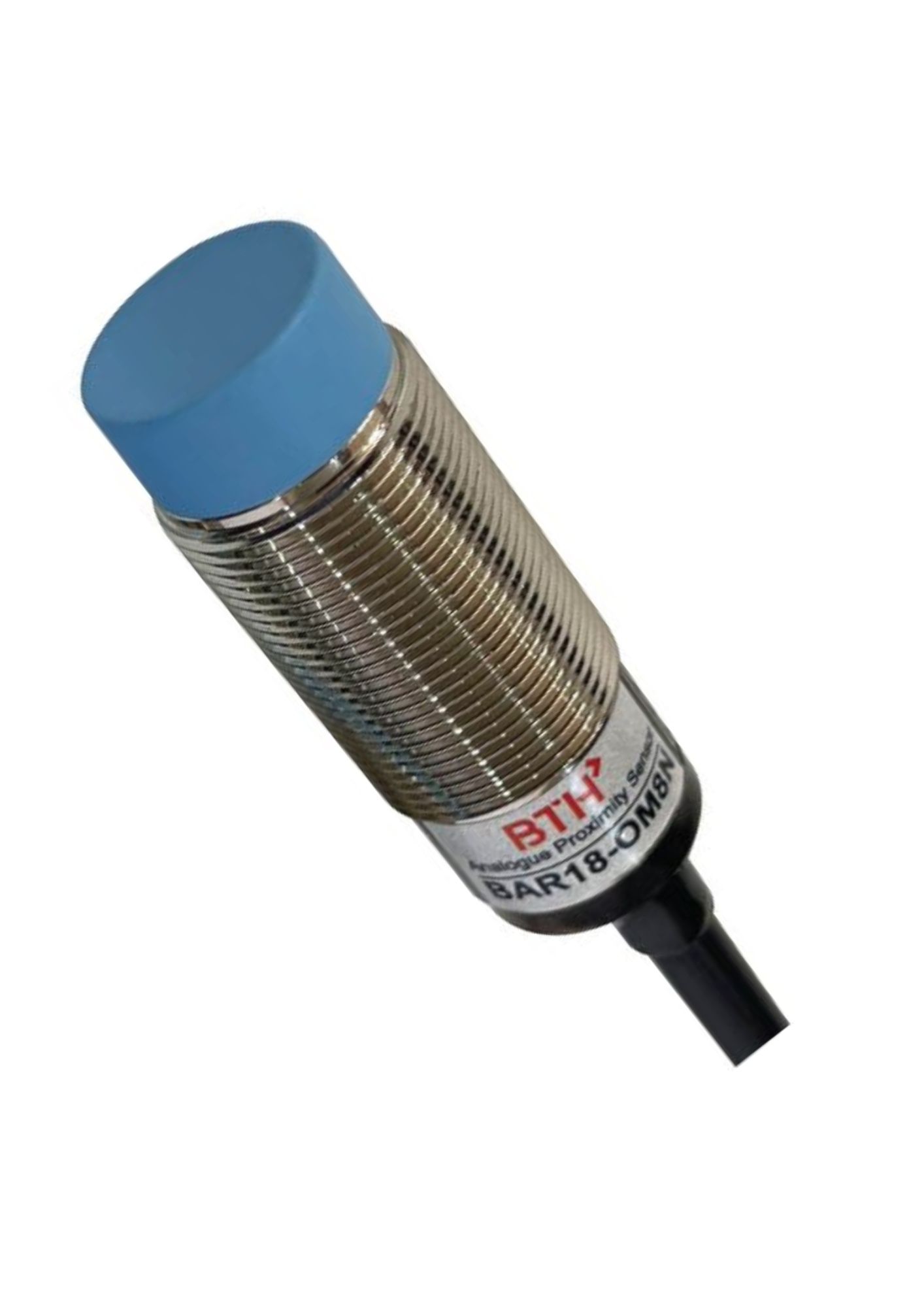

BAR18-OM8N||Analog Output Inductive Proximity Sensor, Diameter 18mm, Sensing Range 8mm, 4~20mA Output
BAR18-OM8N||Analog Output Inductive Proximity Sensor, Diameter 18mm, Sensing Range 8mm, 4~20mA Output

BAR18-OM8N||Analog Output Inductive Proximity Sensor, Diameter 18mm, Sensing Range 8mm, 4~20mA Output

In stock
SKU
BAR18-OM8N
Special Price ₹3,900.00 Regular Price ₹6,000.00
(18% GST Extra)
Add to Wish List
  • Good linear output for machine stability control
  • Application : RPM and displacement control
  • 4~20mA outputs
  • Excellent repeatability
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Model BAR18-OM8N
Output  4~20mA
Sensing Distance 8 mm
Standard Sensing Object Iron 18 x 18 x 1 mm
Ripple ≤20%
Operating Voltage DC 15 ~ 24V
Current Consumption 35 mA Max.
Load Resistance 390Ω 4~20 mA
Output Protection Input power polarity reversal protection / Output power short-circuit protection
No-load Supply Current ≤10mA
Temperature Drift ≤15% Sr
Insulation Resistance 20M Ω min. (DC 500V)
Voltage with Standability AC1000V 60Hz for 60 Sec.
Operating Temperature - 20ºC ~ + 60ºC
Protection Degree 35% ~ 85% RH
Material IP67
Wiring Method Pre-wired Ø5.2 x 2 M / 3wires
Weight Approx.93g
