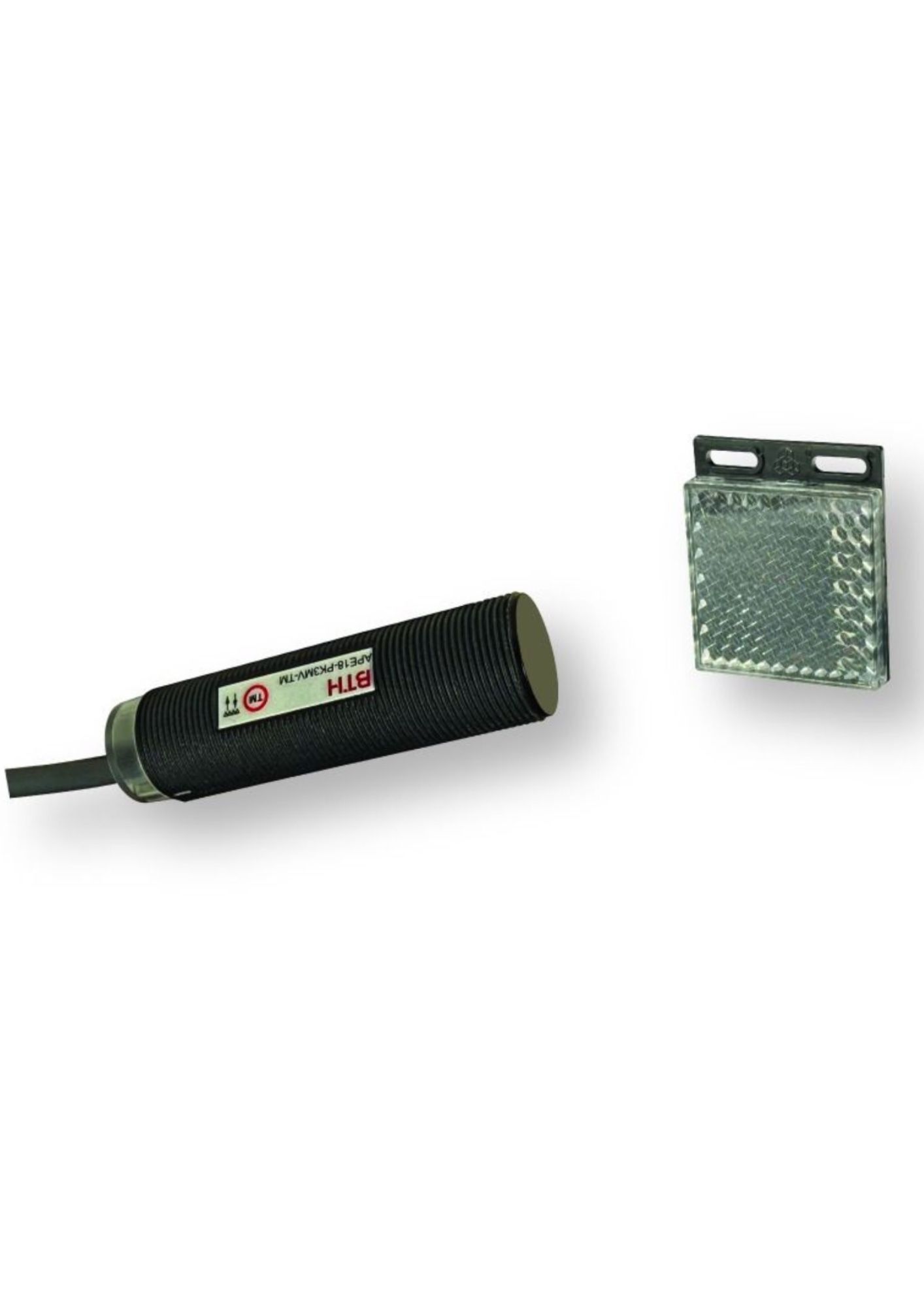

APE18-NK3MV-TM||Ashoka Series Retroreflective Photo Sensor, Diameter 18mm, Sensing Range 3 meter, NPN, Teach Mode

In stock

SKU

APE18-NK3MV-TM

Special Price ₹1,462.50 Regular Price ₹2,250.00

(18% GST Extra)

Qty

Add to Wish List

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

100% Secure Payment

Function: NPN
Outer Diameter: ⌀18mm
Sensing Distance: 3mtr.
Switching: NO+NC (Dark-on / Light-on)
Type of light / wave length: Infrared LED 660nm
Response frequency: 1kHz
Adjustment: Teach Mode TM
Standard sensing object: Reflector
Hysteresis: Within 1%-10% of sensing distance
Supply voltage: 10~30VDC
Output current: 200mA
No load current: Retro-reflective ≤ 30mA
Voltage Drop: Max. 1.5VDC
Temperature Influence: When at –25ºC ~ 70ºC sensing distance within ±15% of sensing distance at rated voltage
Insulation Resistance: 20MΩ min. (at 250VDC)
Dielectric Strength: 500VDC, 50/60Hz for 1min
Vibration Resistance: Withstand
Shock Resistance: Withstand
Indicator: Two LED's (1 green, 1 red), Green solid
Ambient temperature: –25ºC to +60ºC (non-freezing condition) Storage
Ambient Humidity: 35% to 95%RH ; 35%~85% (storage)
Ambient illumination: Incandescent lamp
Protection Circuit: Reverse polarity protection & Short circuit protection
Protection: lP66
Connection: Pre wired 2mtr. PVC cable
Housing Material: PC
Approval: CE
