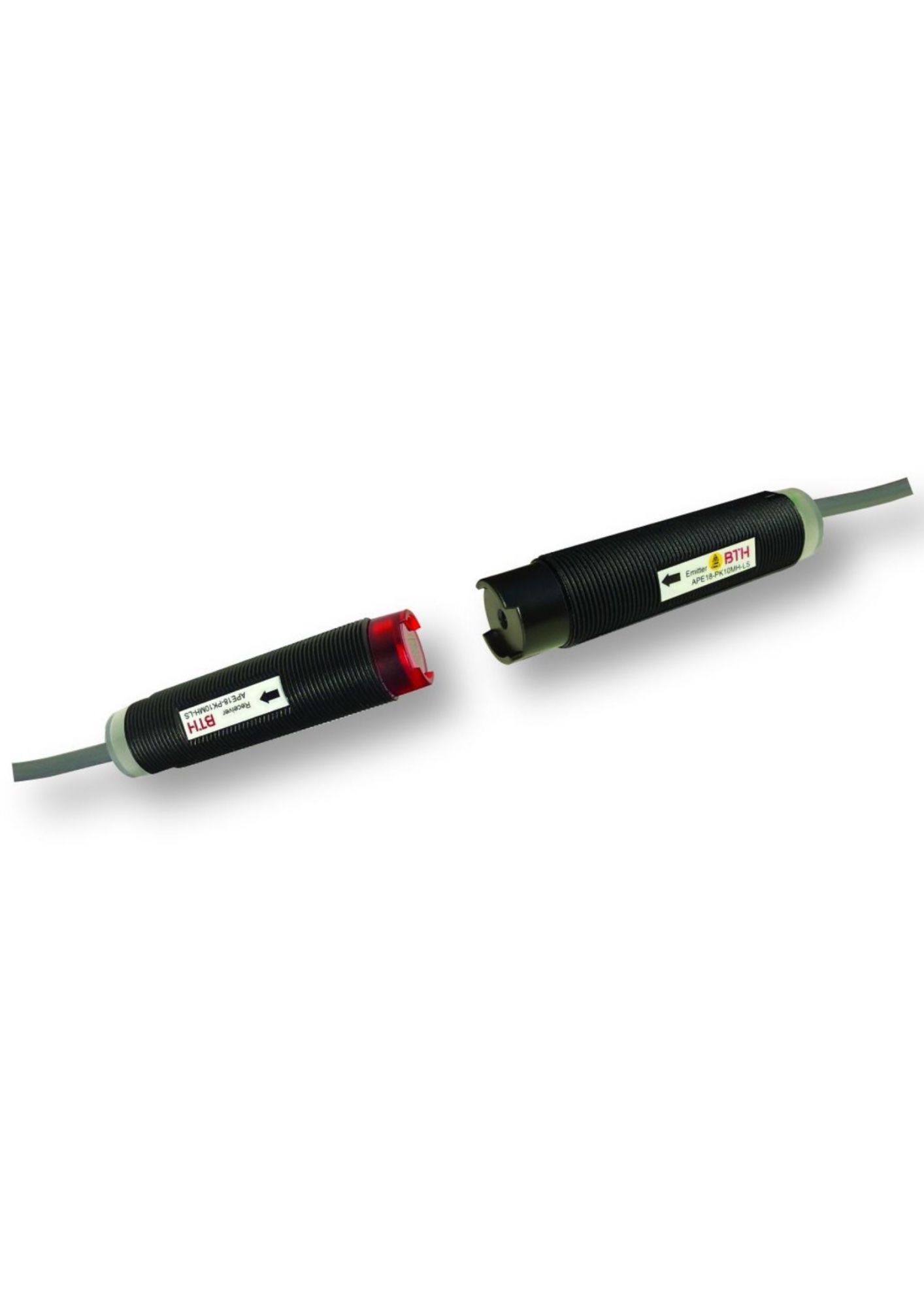

APE18-NK10MH-LS||Ashoka Series Through beam Photo Sensor, Diameter 18mm, Sensing Range 10 meter, NPN
APE18-NK10MH-LS||Ashoka Series Through beam Photo Sensor, Diameter 18mm, Sensing Range 10 meter, NPN

APE18-NK10MH-LS||Ashoka Series Through beam Photo Sensor, Diameter 18mm, Sensing Range 10 meter, NPN

In stock
SKU
APE18-NK10MH-LS
Special Price ₹2,437.50 Regular Price ₹3,750.00
(18% GST Extra)
Add to Wish List
  • Sensitivity adjustment by Teach-in programming
  • Single TM-teach mode button (sensing range)
  • Dark/Light switching function selectable via cable
  • LED indication for output & power ON
  • Protection
  • Excellent EMC performance
  • Cylindrical photoelectric sensor M18
  • Visible laser light in Thru-Beam sensor
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Function: NPN
  • Outer Diameter: ⌀18mm
  • Sensing Distance: 10mtr.
  • Switching: NO+NC (Dark-on / Light-on)
  • Type of light / wave length: Visible laser light & Infrared LED 880nm
  • Response frequency: 1kHz
  • Adjustment: Fixed
  • Standard sensing object: 5x5cm white matt paper
  • Hysteresis: Within 1%-10% of sensing distance
  • Supply voltage: 10~30VDC
  • Output current: 200mA
  • No load current: Through-beam Emitter 25mA + Reciever 25mA
  • Voltage Drop: Max. 1.5VDC
  • Temperature Influence: When at –25ºC ~ 70ºC sensing distance within ±15% of sensing distance at rated voltage
  • Insulation Resistance: 20MΩ min. (at 250VDC)
  • Dielectric Strength: 500VDC, 50/60Hz for 1min
  • Vibration Resistance: Withstand
  • Shock Resistance: Withstand
  • Indicator: Two LED's (1 green, 1 red), Green solid
  • Ambient temperature: –25ºC to +60ºC (non-freezing condition) Storage
  • Ambient Humidity: 35% to 95%RH ; 35%~85% (storage)
  • Ambient illumination: Incandescent lamp
  • Protection Circuit: Reverse polarity protection & Short circuit protection
  • Protection: lP66
  • Connection: Pre wired 2mtr. PVC cable
  • Housing Material: PC
  • Approval: CE
