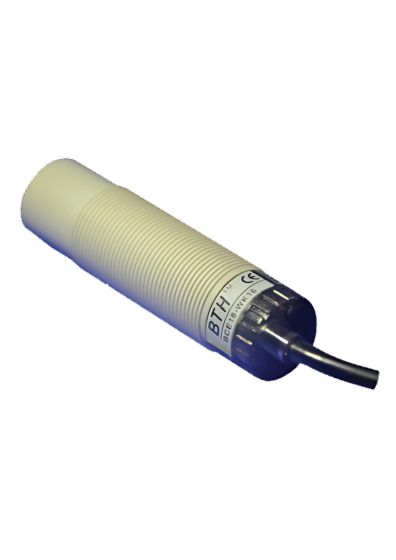

BCE18-WK16 ||Capacitive Proximity Sensor, DC 4Wire, Diameter 18mm, Sensing Range 1-16mm, PNP/NPN/NO/NC

BCE18-WK16 ||Capacitive Proximity Sensor, DC 4Wire, Diameter 18mm, Sensing Range 1-16mm, PNP/NPN/NO/NC

BCE18-WK16 ||Capacitive Proximity Sensor, DC 4Wire, Diameter 18mm, Sensing Range 1-16mm, PNP/NPN/NO/NC

Be the first to review this product

In stock

SKU

BCE18-WK16

Special Price ₹2,925.00 Regular Price ₹4,500.00

(18% GST Extra)

Qty

Add to Wish List

Threaded Cylindrical Capacitive Sensor
Adjustable Sensitivity
Extended Switching Distance
IP66 Protection
Bulk Material, Liquid, Level detection
Output, PNP / NPN / NO / NC, Selectable

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Outer Diameter: M18
Standard Sensing Object: Conducting Neutral
Sensing Distance: 1~16mm
Hysteresis: ≤10 % of sensing distance
Response Time: 14.3 ms Max
Power Supply (Operating Voltage): 12-24VDC
Current Consumption: ≤22 mA no-load
Load Current: 100 mA Max at DC 24V
Leakage Current: ≤1.1 mA no-load
Residual Voltage: ≤DC 1.5V
Insulation Resistance: 20MΩ min. (DC500V)
Voltage with Standability: AC1000V 60Hz for 60 Sec.
Operating Temperature: - 20ºC ~ + 60ºC
Protection Degree: IP66
Wiring Method: Pre-wired Ø4.2 x 2 M / 4-wires
Weight: Approx. 70g
