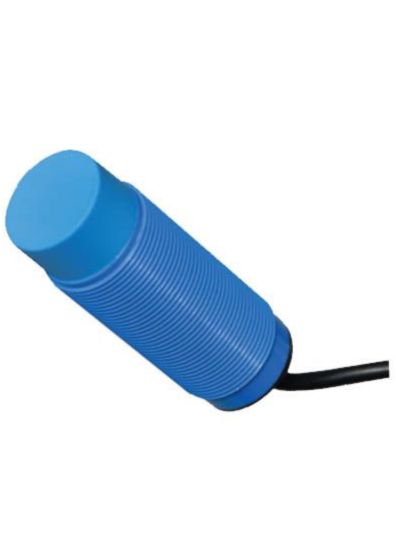

BCE30-PN30 ||Capacitive Proximity Sensor, Diameter 30mm, Sensing Range 2-30mm, PNP NO, Plastic Body
BCE30-PN30 ||Capacitive Proximity Sensor, Diameter 30mm, Sensing Range 2-30mm, PNP NO, Plastic Body

BCE30-PN30 ||Capacitive Proximity Sensor, Diameter 30mm, Sensing Range 2-30mm, PNP NO, Plastic Body

In stock
SKU
BCE30-PN30
Special Price ₹1,787.50 Regular Price ₹2,750.00
(18% GST Extra)
Add to Wish List
  • Reverse power polarity protection.
  • Surge protection function.
  • Over current protection function.
  • Long life cycle and high reliability.
  • Able to check the status of operation by Red LED Indicator.
  • Wide range of applications, for replacement of Micro switch, Limit switch.
  • Structure by IP 65.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Function: PNP Make (NO)
  • Detecting Distance: 2~30mm Adjustable
  • Switching Hysteresis: Max. 15% of Sr
  • Standard Detecting Target: 30 x 30 x 1mm (Iron)
  • Setting Distance: 2~30mm ± 10%
  • Power Supply (Operating Voltage): 10-40VDC
  • Current Consumption: <10mA
  • Response Frequency: 100 Hz
  • Residual Voltage: Max. 1.5V
  • Temperature Drift: ±10% Max. of detecting distance at +20ºC within temperature range of –25 to +70ºC
  • Control Output: 400mA
  • Connection Type: Cable 2mtr.
  • Housing Type: Cylindrical Threaded (1mm), 30mm dia, length 80mm
  • Housing Material: PBT Resin
  • Vibration & Shock: 1mm amplitude at frequency of 10 to 55Hz in each of X, Y, Z directions for 2 hours 500m/s² (50G) in X, Y,Z direction for 3 times
  • Indicator: Operating indicator (RED LED)
  • Ambient Temperature: –25 to +70ºC (non–freezing condition)
  • Storage Temperature: –30 to +80ºC (non-freezing condition)
  • Ambient Humidity: 35 to 95% RH
  • Protection Circuit: Surge protection circuit, Overload & short circuit protection
  • Protection: IP65
  • Weight: Approx. 195g
  • Approval: CE
