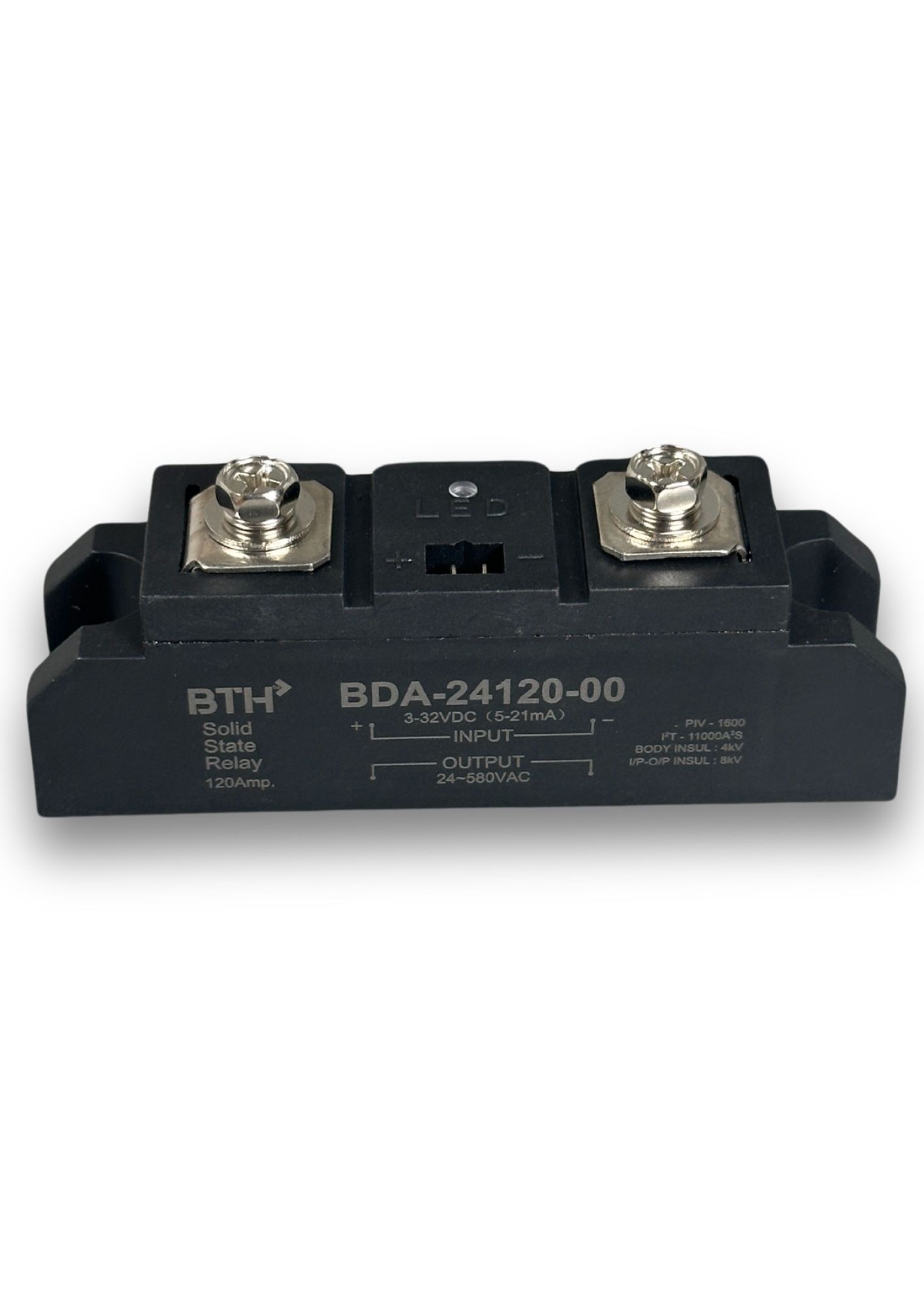

BDA-24120-00||DC Input AC Output, 120A Solid State Relay, Long Heavy Duty, Single Phase

BDA-24120-00||DC Input AC Output, 120A Solid State Relay, Long Heavy Duty, Single Phase

BDA-24120-00||DC Input AC Output, 120A Solid State Relay, Long Heavy Duty, Single Phase

Be the first to review this product

In stock

SKU

BDA-24120-00

Special Price ₹2,217.60 Regular Price ₹3,520.00

(18% GST Extra)

Qty

Add to Wish List

Current rating 60 to 400 Amps
Output working voltage 24-480 VAC
Operation indicator enables monitoring operation
Heavy duty terminal for industrial application
Zero Cross Switching

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Maximum load current (Amps): 120Amp.
Load switching voltage AC Vrms: 24~480VAC (47-63Hz)
On voltage drop VAC: ≤1.6VAC
Leakage current (off state) mA: ≤10mA
Operating Voltage: 3~32VDC
Control current : 5-25mA
Turn-ON voltage Vmin: 3VDC max.
Turn-OFF voltage V: 1VDC min.
Maximum Turn-On Time (msec): ≤10mS
Maximum Turn-Off Time (msec): ≤10mS
Insulation resistance: 500MΩ 500VDC
Transient Voltage: 1600VAC
Operating time: ≤ 10ms
Release time: ≤ 10ms
Dimensions (L x W x H): Upto 150 Amp. W25*H43*L92
Weight: 135g
storage: -30 to 80°C
operating: -30 to 80°C (with derating). Heat sink is required.
Dielectric Strength, Input/Output/Base (50/60Hz: ≥2500VAC
