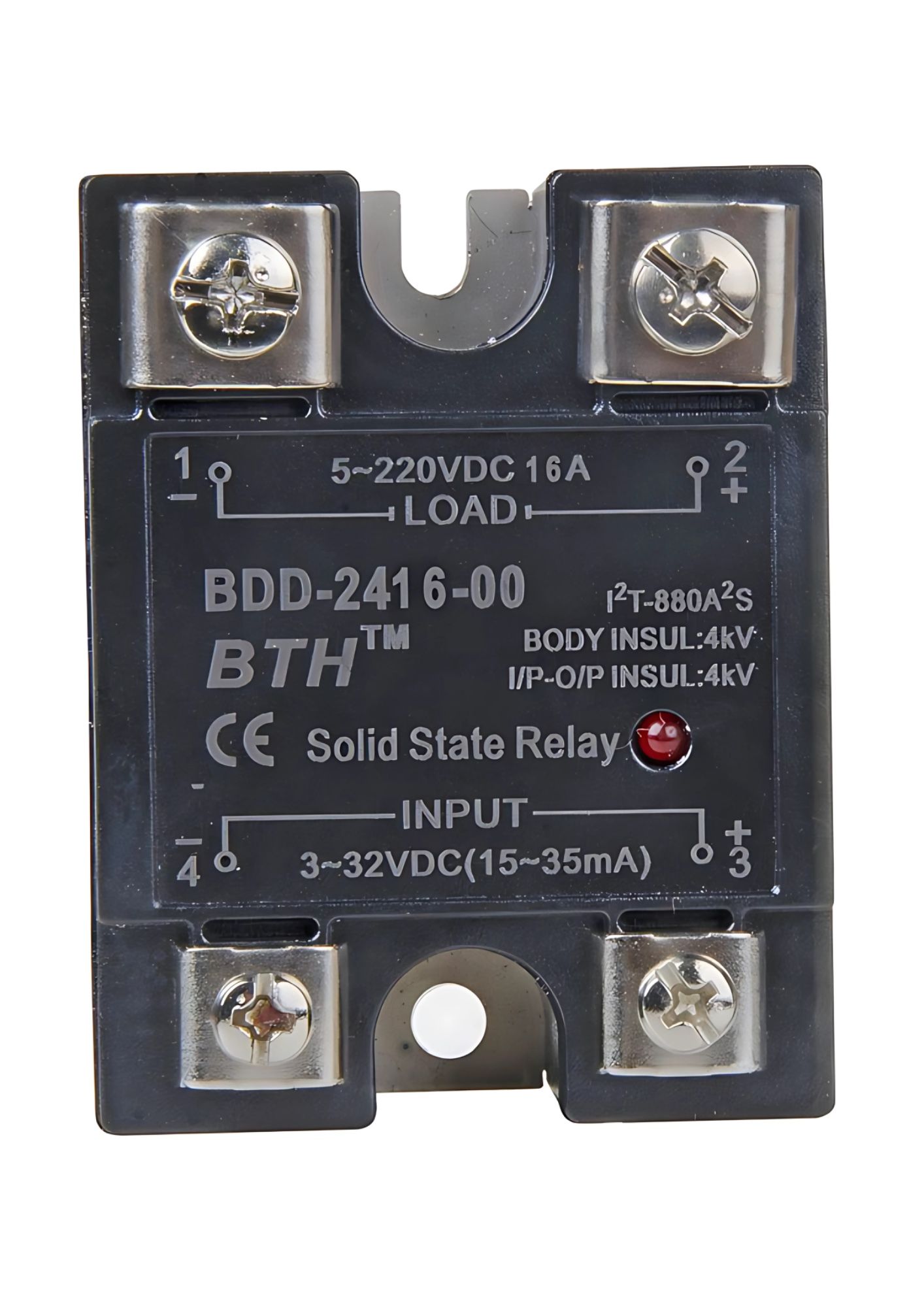

BDD-2416-00||DC Input DC Output, 16A Solid State Relay, Single Phase
BDD-2416-00||DC Input DC Output, 16A Solid State Relay, Single Phase

BDD-2416-00||DC Input DC Output, 16A Solid State Relay, Single Phase

In stock
SKU
BDD-2416-00
Special Price ₹516.60 Regular Price ₹820.00
(18% GST Extra)
Add to Wish List
  • Current rating 10 to 100 Amp.
  • Output working voltage 12-250 VDC
  • Operation indicator enables monitoring operation
  • Improved SEMS screw and washer
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Maximum load current (Amps): 16Amp.
  • Load type: SPST-NO (1 N/O) Resistive
  • Load switching voltage AC Vrms: 12~250VDC (47-63Hz)
  • Maximum peak voltage AC Vpk: 1600V
  • Switch type: Zero Cross
  • On voltage drop VAC: 1.5V (RMS) max
  • Leakage current (off state) mA: 5mA max. (at 100 VAC), 10mA max. (at 200 VAC)
  • Operating Voltage: 5~32VDC
  • Control current: <20mA
  • Turn-ON voltage Vmin: 3VDC max.
  • Turn-OFF voltage V: 1VDC min.
  • Maximum Turn-On Time (msec): 1/2 Cycle (6)
  • Maximum Turn-Off Time (msec): 1/2 Cycle
  • Insulation resistance: ≤ 100MΩ at 500VDC, 50%RH
  • Maximum Capacitance, Input/Output: 8pF
  • Operating time: ≤ 10ms
  • Release time: ≤ 10ms
  • Dimensions (L x W x H): 60 x 45.1 x 27.5mm
  • Weight: 98~120g
  • Ambient temperature (Storage): -30 to 80°C
  • Ambient temperature (Operating): -30 to 80°C (with derating). Heat sink is required.
  • Protection Class: IP20 protection by flaps/Cover on terminals.
  • Maximum 1/2 Cycle I2T for Fusing (50/60Hz) (A2 sec): 81~20,000
  • Dielectric Strength Input/Output/Base (50/60Hz): 4000VRMS
  • Minimum Power Factor (Max Load): 0.5
