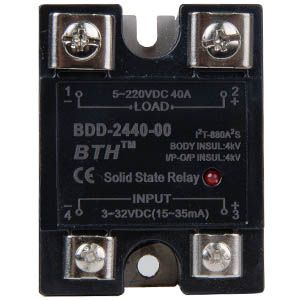

BDD-2440-00||DC Input DC Output, 40A Solid State Relay, Single Phase
In stock
SKU
BDD-2440-00
Special Price
₹674.10
Regular Price
₹1,070.00
Check Delivery Options at your Area


FREE SHIPPING
Free Shipping by Surface Only*


SECURE PAYMENT
100% Secure Payment
- Maximum load current (Amps): 40Amp.
- Load type: SPST-NO (1 N/O) Resistive
- Load switching voltage AC Vrms: 12~250VDC (47-63Hz)
- Maximum peak voltage AC Vpk: 1600V
- Switch type: Zero Cross
- On voltage drop VAC: 1.5V (RMS) max
- Leakage current (off state) mA: 5mA max. (at 100 VAC), 10mA max. (at 200 VAC)
- Operating Voltage: 5~32VDC
- Control current: <20mA
- Turn-ON voltage Vmin: 3VDC max.
- Turn-OFF voltage V: 1VDC min.
- Maximum Turn-On Time (msec): 1/2 Cycle (6)
- Maximum Turn-Off Time (msec): 1/2 Cycle
- Insulation resistance: ≤ 100MΩ at 500VDC, 50%RH
- Maximum Capacitance, Input/Output: 8pF
- Operating time: ≤ 10ms
- Release time: ≤ 10ms
- Dimensions (L x W x H): 60 x 45.1 x 27.5mm
- Weight: 98~120g
- Ambient temperature (Storage): -30 to 80°C
- Ambient temperature (Operating): -30 to 80°C (with derating). Heat sink is required.
- Protection Class: IP20 protection by flaps/Cover on terminals.
- Maximum 1/2 Cycle I2T for Fusing (50/60Hz) (A2 sec): 81~20,000
- Dielectric Strength Input/Output/Base (50/60Hz): 4000VRMS
- Minimum Power Factor (Max Load): 0.5
