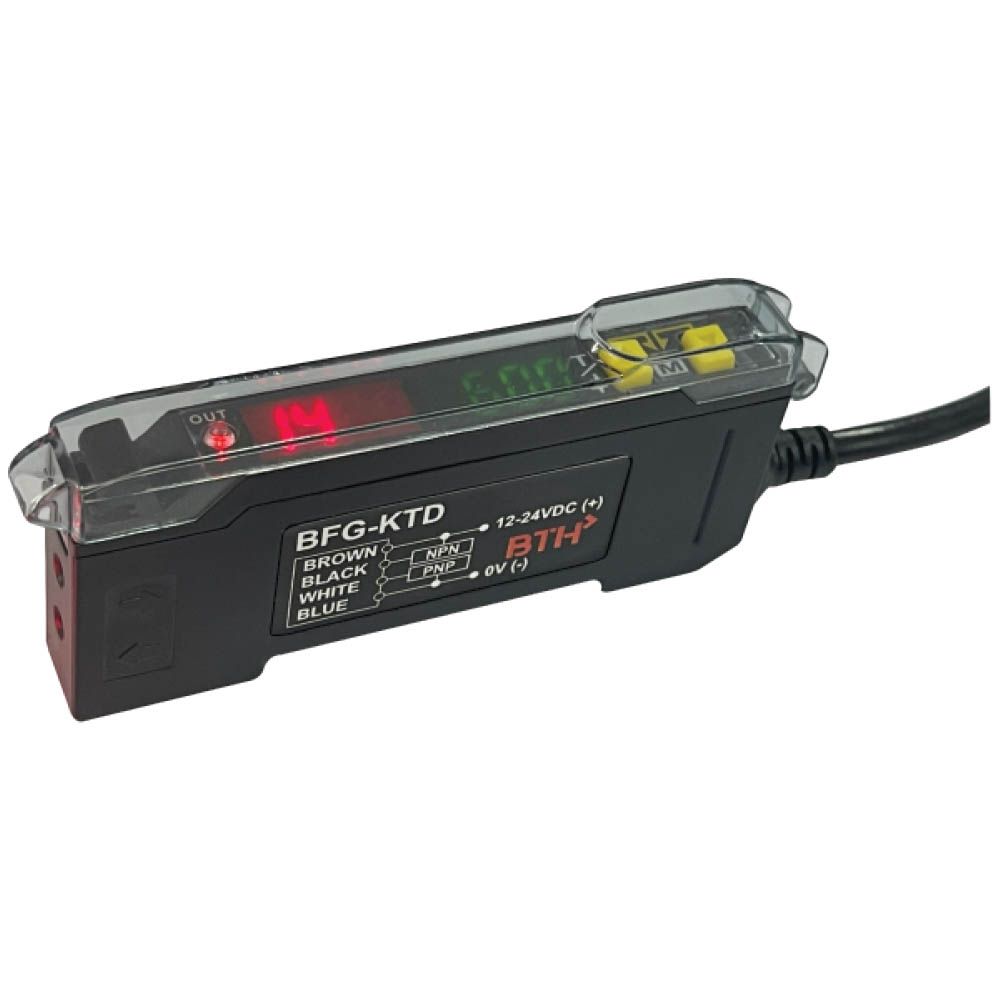

BFG-KTD||Digital Fiber Sensor Amplifier Unit, PNP/NPN Output
In stock
SKU
BFG-KTD
Special Price
₹4,647.50
Regular Price
₹7,150.00
Check Delivery Options at your Area


FREE SHIPPING
Free Shipping by Surface Only*


SECURE PAYMENT
100% Secure Payment
- Emitting Light: LED 660 nm
- Operating Voltage: 12 ~ 24 VDC ± 10%
- Current Consumption: 30 mA Max.
- Load Current: 100mA Max. at 24VDC
- Output: NPN/PNP/Dark-ON/Light-ON
- Proection circuit: Reversed supply circuit protection
- Response Time: 1000/1500 Hz
- Indicators: Output
- Sensitivity adjustment: 4 (0000~4000)
- Insulation Resistance Voltage: 20MΩ min. (DC500V)
- Voltage with standability: AC500V 60Hz for 60 Sec.
- Operating Temperature: -10°C ~ + 60°C
- Ambient Humidity: 35% ~ 85% RH
- Protection Degree: IP50
- Material: ABS
- Wiring method: Pre-weird Ø4.2 x 2 M / 4-wires
- Weight: Approx. 65g
No specifications available for this product.
Write Your Own Review
Downloads
Related Products
Check items to add to the cart or
-
BPRC-320||Fiber Optic Cable Diffuse-Anti Bending, Diameter 3mm, Sensing Range 50mmSpecial Price ₹926.25 Regular Price ₹1,425.00
-
BPR-420||Fiber Optic Cable Diffuse-Anti Bending, Diameter 4mm, Sensing Range 50mmSpecial Price ₹926.25 Regular Price ₹1,425.00
-
BPRS-320||Fiber Optic Cable Diffuse-Anti Bending, Side View, Diameter 3mm, Sensing Range 30mmSpecial Price ₹1,381.25 Regular Price ₹2,125.00
-
BPRL-620||Fiber Optic Cable Diffuse-Anti Bending, Extended Tube, Diameter 6mm, Sensing Range 30mmSpecial Price ₹1,056.25 Regular Price ₹1,625.00
-

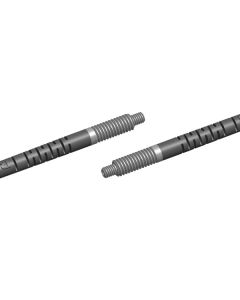

BPT-420-B1||Fiber Optic Through Beam Cable, Diameter 4mm, Sensing Range 500mmSpecial Price ₹1,202.50 Regular Price ₹1,850.00
-
