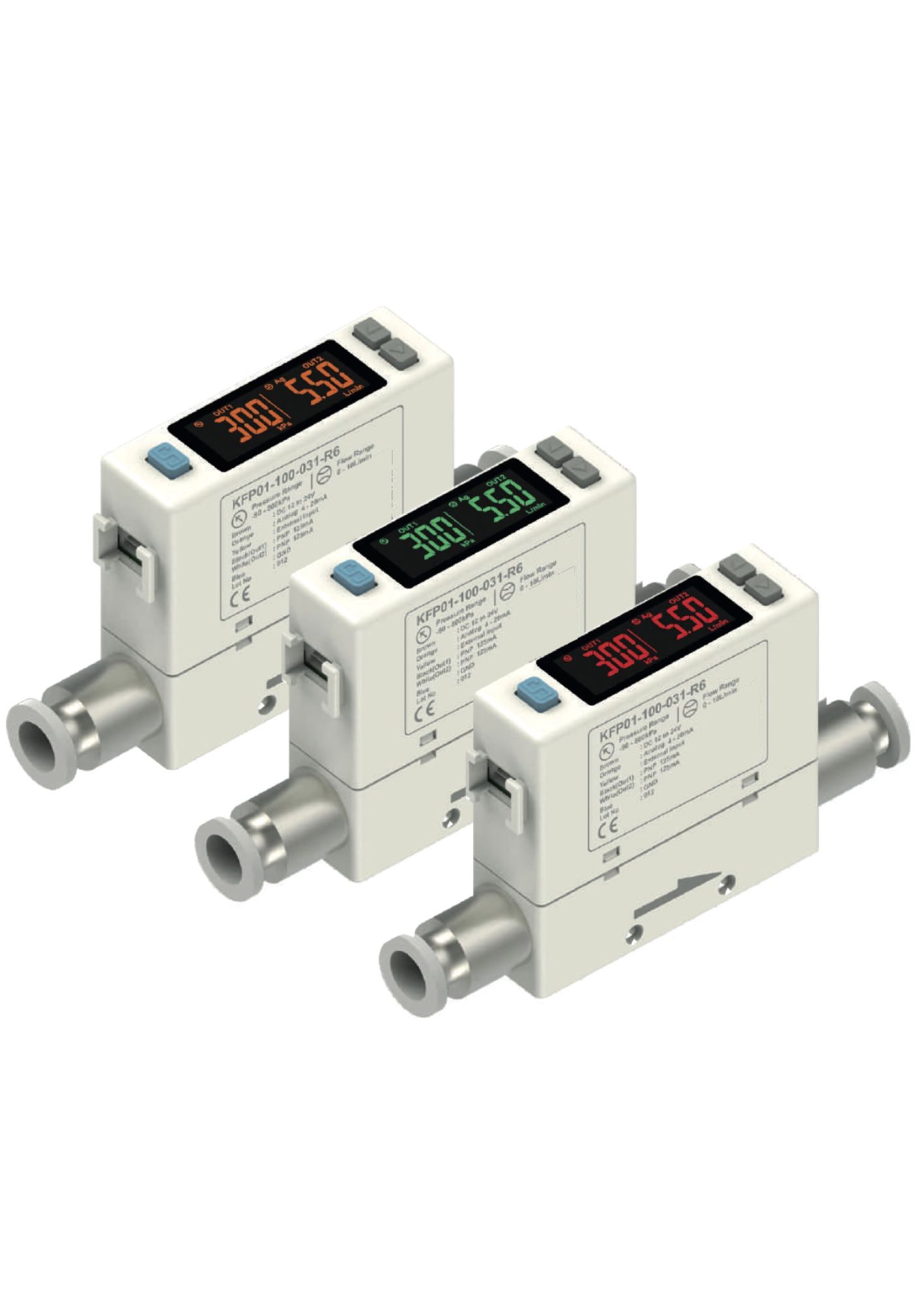

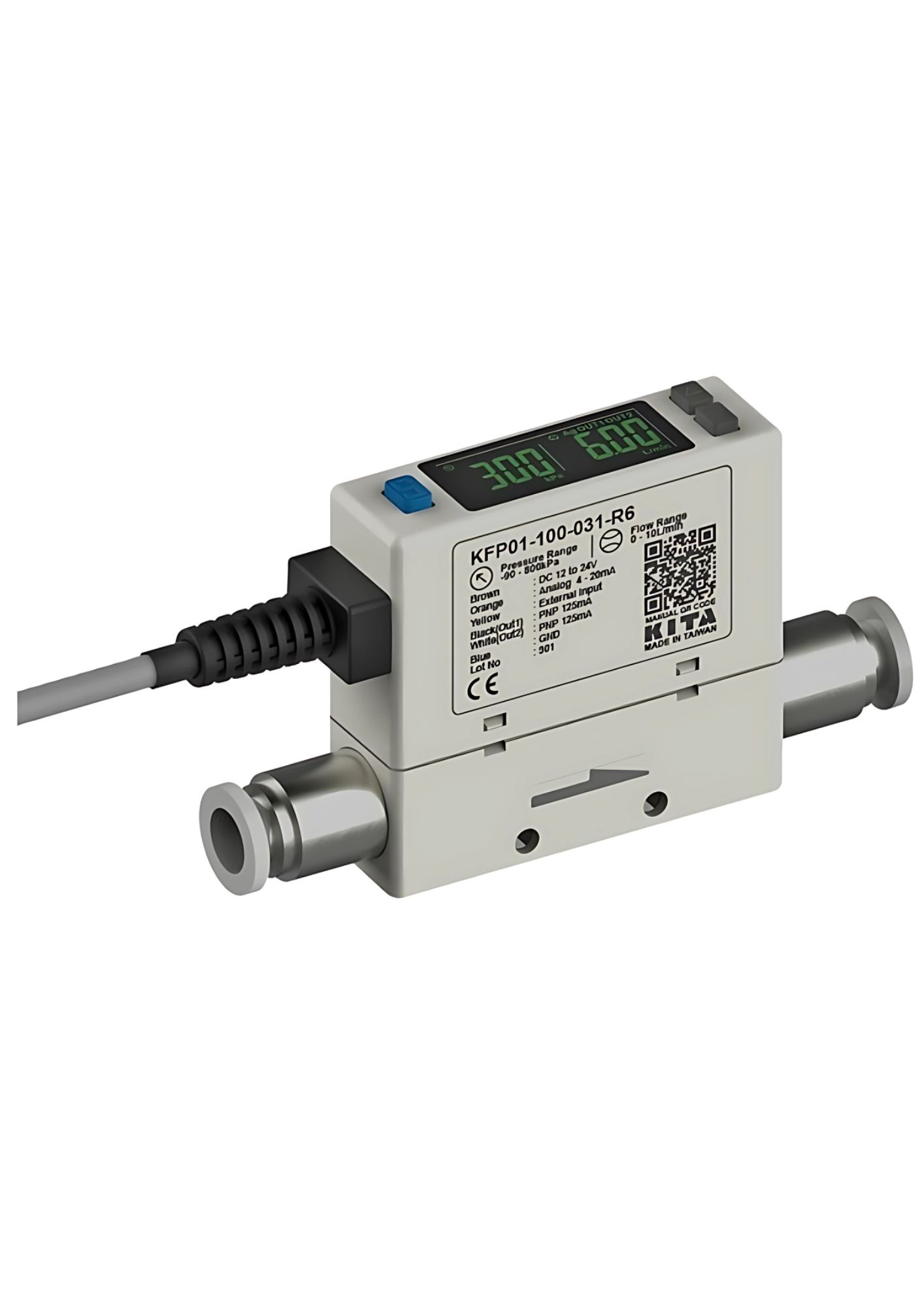

KFP01-100-010-R6 | Digital Flow & Pressure Sensor, 4 digit 7 segment dual LCD display
Out of stock
SKU
KFP01-100-010-R6
Special Price
₹15,843.75
Regular Price
₹24,375.00
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Fluid: Dry air, N2 , Non-corrosive / Non-flammable gas
- Measured Flow Rate Range: 0 ~ 10 L/min
- Flow Direction: Unidirection
- Rated Pressure Range: -100 ~ 1000 kPA
- Diaplay: 4 digit x 4 digit, 7 segment LCD display (Red/Green/Orange)
- Voltage Output: Voltage Output Range
- Output Impedance : 1 kΩ
- Current Output: Current Output Range
- Load Impedance: ≤300 Ω
- Externel Input: Non-voltage input < 0.4 V, ≥ 30 ms
- Communication Interface: RS485
- Power Supply Voltage: 12 ~ 24 V DC ± 10% Ripple (P-P) ≤ 10%
- Current Consumption: ≤ 50 mA
- Lead Wire: Ø4 Oil-resistance cable (PVC) - 26 AWG (0.15mm2)-6 cores
- Weight (with 2 meter lead wire): Approx. 112.1g (Ø6 port) ; Approx. 116g (Ø8 port) ; Approx.122.4 g (Rc1/4" port) ; Approx.132.4g (Rc1/8' port)
No specifications available for this product.
