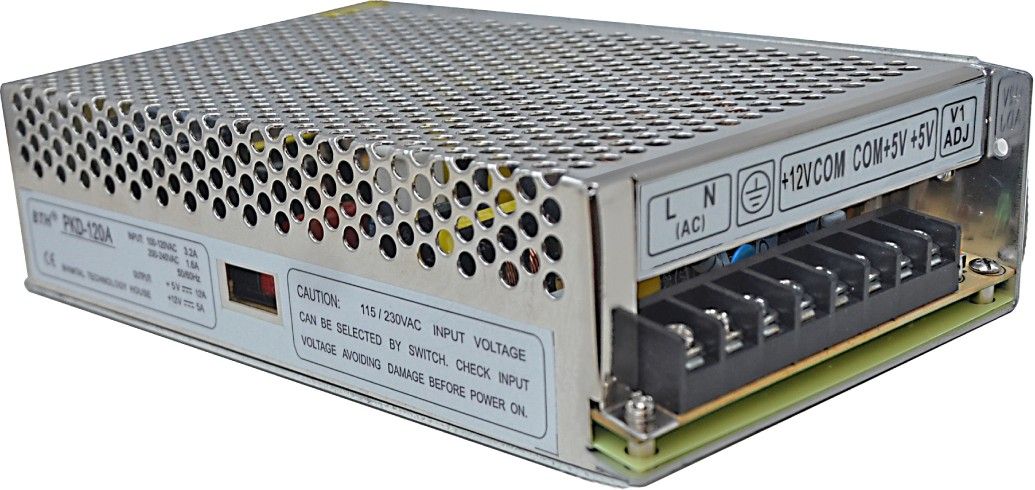

PKD-120A||Dual Output Power Supply, 5V/12A, 12V/5A Output, Panel Mount
PKD-120A||Dual Output Power Supply, 5V/12A, 12V/5A Output, Panel Mount

PKD-120A||Dual Output Power Supply, 5V/12A, 12V/5A Output, Panel Mount

Out of stock
SKU
PKD-120A
Special Price ₹2,620.80 Regular Price ₹4,160.00
(18% GST Extra)
  • AC input selectable by switch
  • High efficiency, high reliability
  • 100% full load and machine test
  • Protection characteristics
  • Air cooling
  • Working frequency 37 KHz
  • Size: 199 x 110 x 50mm

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • . DC output Voltage, Current: 5V 0~12A / 5V 0~12A
  • Wave and Noise: 60mVp-p 120mVp-p
  • Inlet Wire Stability: ± 0.5% ± 1%
  • Load Stability: ± 0.5% ± 6%
  • Efficiency: 78% 78%
  • Adjustable Range for DC Voltage: ± 10% ± 5%
  • Input Voltage Range: 90~132VAC / 180~264VAC by switch 254~370VDC 47~63Hz
  • Impact Current: 30A/115VAC 60A/230VAC Cold start current
  • Overload Protection:
  • Setup, Rise, Hold up time: 200ms, 50ms, 20ms/230VAC at full load
  • Withstand Voltage: I/P–O/P
  • Isolation Resistance: I/P–O/P I/P–FG O/P–FG
  • Working Temperature: – 10°C ~ +50°C
  • Dimension and Weight: 0.9kg 199 x 110 x 50mm
