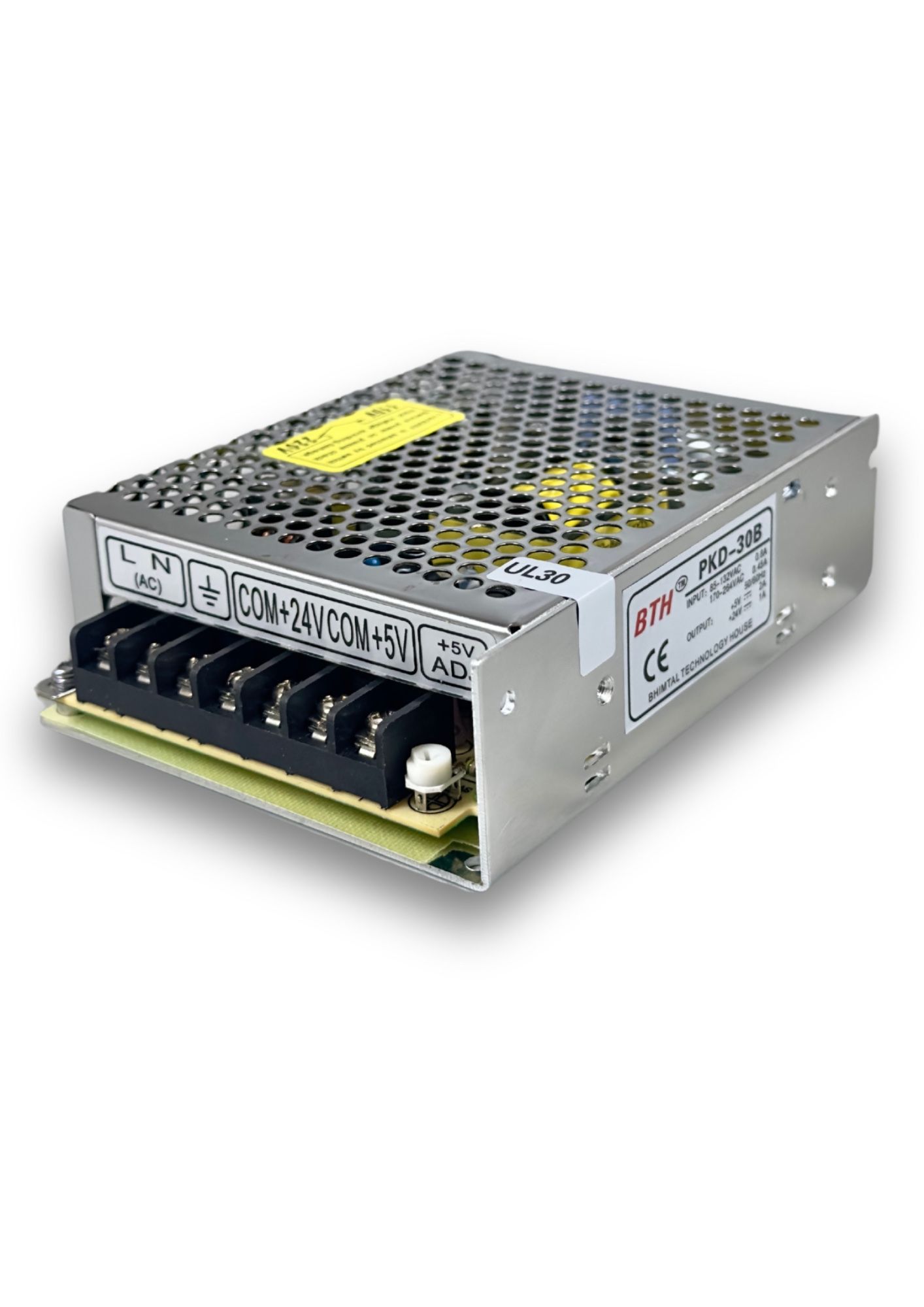

PKD-30B||Dual Output Power Supply, 5V/2A, 24V/1A Output, Panel Mount
In stock
SKU
PKD-30B
Special Price
₹1,020.60
Regular Price
₹1,620.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- DC output Voltage, Current: 5V 0~2A / 24V; 0~1A
- Wave and Noise: 50mVp-p 100mVp-p
- Inlet wire Stability: ± 0.5% ± 1%
- Load Stability: ± 0.5% ± 4%
- Efficiency: 74% 74%
- Adjustable Range for DC Voltage: ± 10% ± 5%
- Input Voltage Range: 85~132VAC 170~264VAC 47~63Hz
- Over Load Protection: ≥100MΩ
- Impact Current: 18A/115VAC 36A/230VACCold start current
- Withstand Voltage: I/P–O/P
- Isolation Resistance: I/P–O/P I/P–FG O/P–FG
- Working Temperature: – 10°C ~ +50°C
- Dimension and Weight: 0.4kg 129 x 98 x 38mm
No specifications available for this product.
