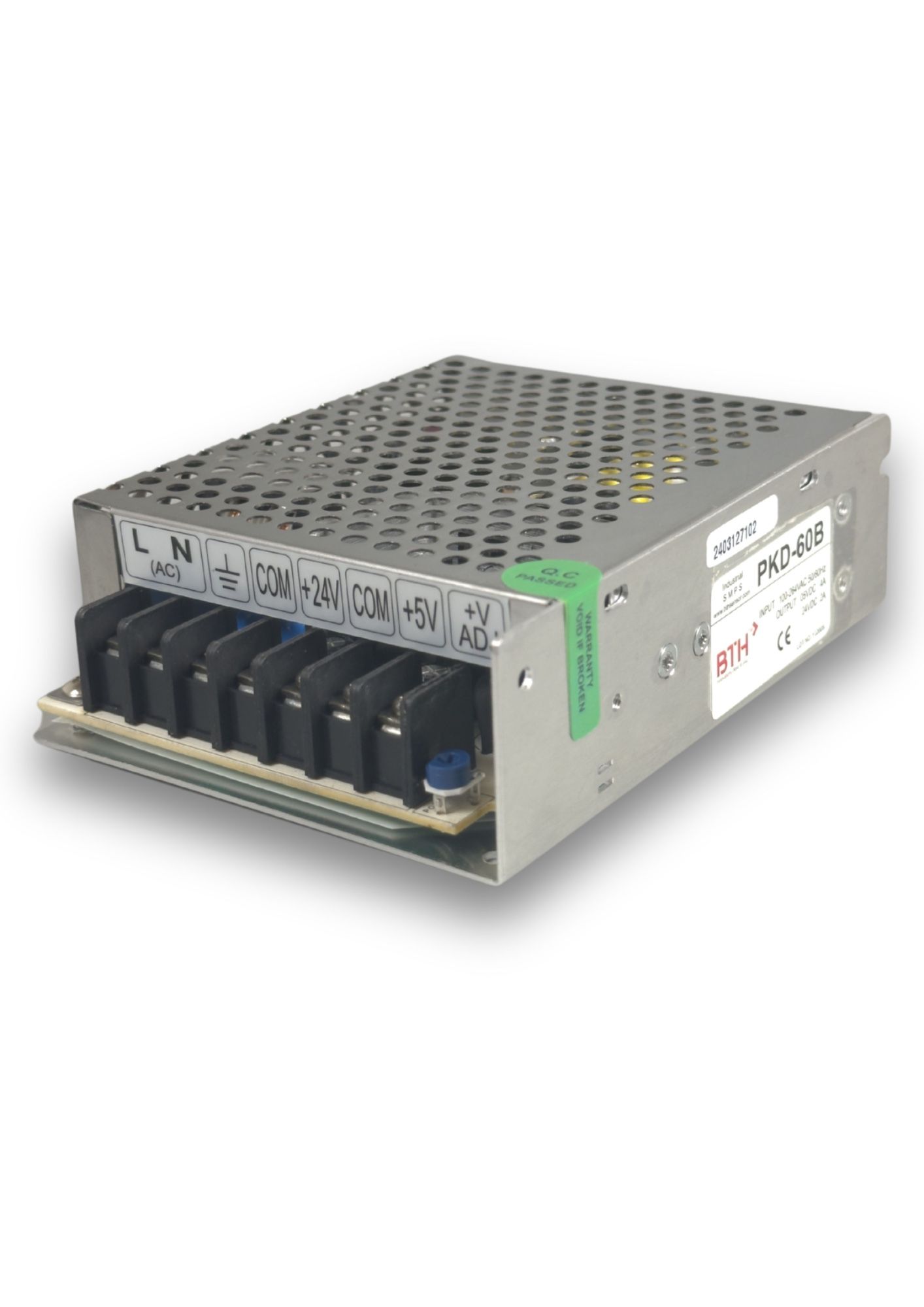

PKD-60B||Dual Output Power Supply, 5V/3A, 24V/2A Output, Panel Mount
In stock
SKU
PKD-60B
Special Price
₹1,297.80
Regular Price
₹2,060.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- DC output Voltage, Current: 5V 0~3A / 24V 0~1.8A
- Wave and Noise: 75mVp-p 150mVp-p
- Inlet Wire Stability: ± 0.5% ± 0.5%
- Load Stability: ± 0.5% ± 4%
- Efficiency: 76% 76%
- Adjustable Range for DC Voltage: ± 10% ± 5%
- Input Voltage Range: 85~264VAC 120~370VDC 47~63Hz
- Impact Current: 30A/115VAC 60A/230VACCold start current
- Overload Protection: 105% ~ 150% cut off the output, automatic recovery
- Setup, Rise, Hold up time: 300ms, 50ms, 80ms/230VAC at full load
- Withstand Voltage: I/P–O/P
- Isolation Resistance: I/P–O/P I/P–FG O/P–FG
- Working Temperature: – 10°C ~ +50°C
- Dimension and Weight: 0.55kg159 x 98 x 38mm
No specifications available for this product.
Write Your Own Review
Downloads
