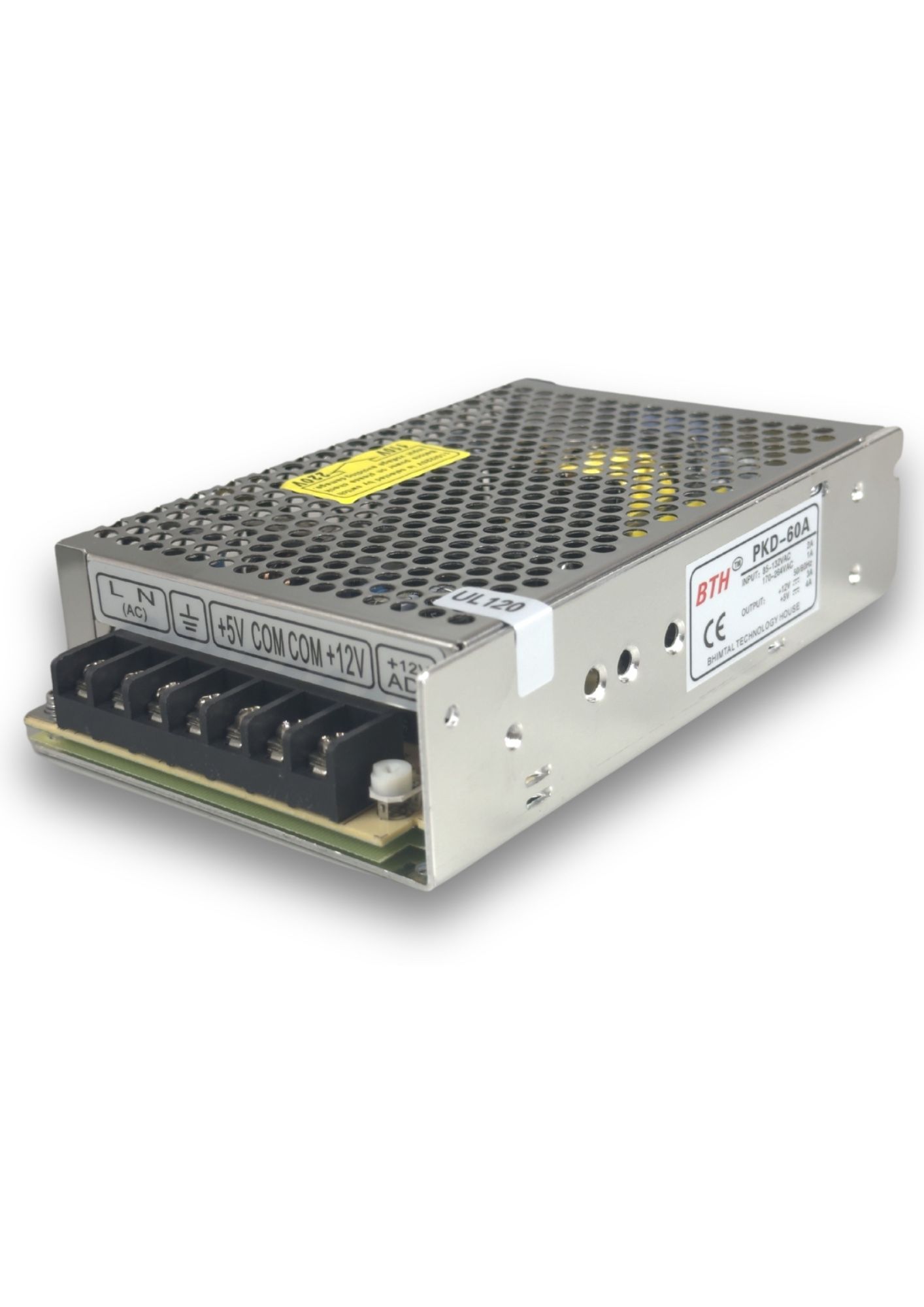

PKD-60A||Dual Output Power Supply, 5V/4A, 12V/3A Output, Panel Mount
PKD-60A||Dual Output Power Supply, 5V/4A, 12V/3A Output, Panel Mount

PKD-60A||Dual Output Power Supply, 5V/4A, 12V/3A Output, Panel Mount

In stock
SKU
PKD-60A
Special Price ₹1,297.80 Regular Price ₹2,060.00
(18% GST Extra)
Add to Wish List
  • High efficiency, high reliability
  • 100% full load and machine test
  • Protection characteristics
  • Air cooling
  • Working frequency 37 KHz
  • Size: 159 x 98 x 38mm
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • DC output Voltage, Current: 5V 0~4A / 12V 0~3A
  • Wave and Noise: 70mVp-p 150mVp-p
  • Inlet Wire Stability: ± 0.5% ± 1%
  • Load Stability: ± 0.5% ± 4%
  • Efficiency: 73% 73%
  • Adjustable Range for DC Voltage: ± 10% ± 5%
  • Input Voltage Range: 85~264VAC 120~370VDC 47~63Hz
  • Impact Current: 30A/115VAC 60A/230VACCold start current
  • Overload Protection: 105%~150% cut off the output, automatic recovery
  • Setup, Rise, Hold up time: 300ms, 50ms, 80ms/230VAC at full load
  • Withstand Voltage: I/P–O/P
  • Isolation Resistance: I/P–O/P I/P–FG O/P–FG
  • Working Temperature: – 10°C ~ +50°C
  • Dimension and Weight: 0.55kg159 x 98 x 38mm
