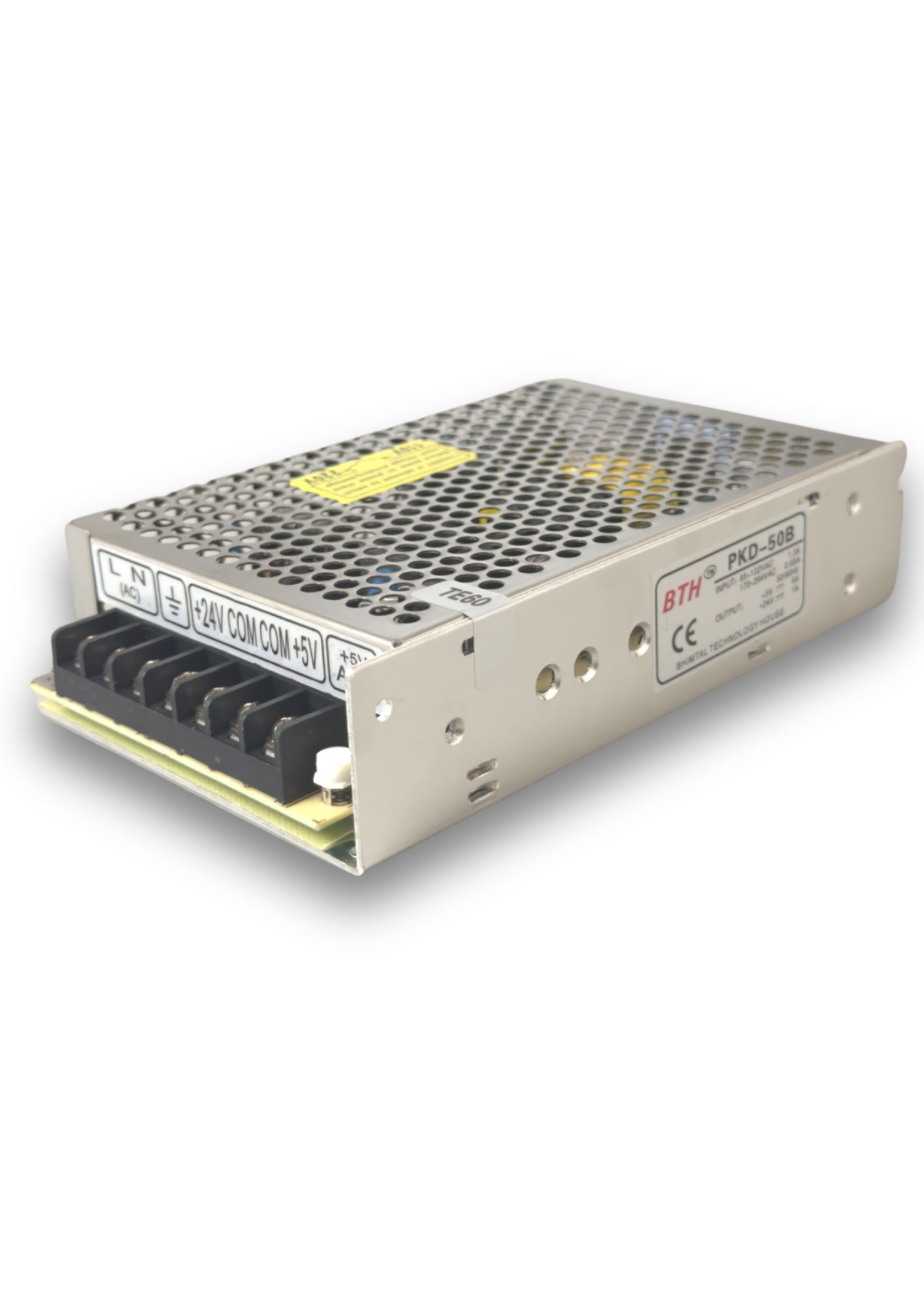

PKD-50B||Dual Output Power Supply, 5V/6A, 24V/1A Output, Panel Mount
PKD-50B||Dual Output Power Supply, 5V/6A, 24V/1A Output, Panel Mount

PKD-50B||Dual Output Power Supply, 5V/6A, 24V/1A Output, Panel Mount

In stock
SKU
PKD-50B
Special Price ₹1,127.70 Regular Price ₹1,790.00
(18% GST Extra)
Add to Wish List
  • High efficiency, high reliability
  • 100% full load and machine test
  • Protection characteristics
  • Air cooling
  • Working frequency 37 KHz
  • Size: 159 x 98 x 38mm
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • DC output Voltage, Current: 5V 0~6A / 24V 0~1A
  • Wave and Noise: 50mVp-p 100mVp-p
  • Inlet Wire Stability: ± 0.5% ± 1%
  • Load Stability: ± 0.5% ± 1%
  • Efficiency: 73% 73%
  • Adjustable Range for DC Voltage: ± 10% ± 5%
  • Input Voltage Range: 90~32VAC / 180~264VAC by switch 254~370VDC 47~63Hz
  • Impact Current: 18A/115VAC 36A/230VACCold start current
  • Overload Protection: 105% ~ 150% cut off the output, automatic recovery
  • Setup, Rise, Hold up time: 200ms, 100ms, 30ms/230VAC at full load
  • Withstand Voltage: I/P–O/P
  • Isolation Resistance: I/P–O/P I/P–FG O/P–FG
  • Working Temperature: – 10°C ~ +50°C
  • Dimension and Weight: 0.55kg159 x 98 x 38mm
