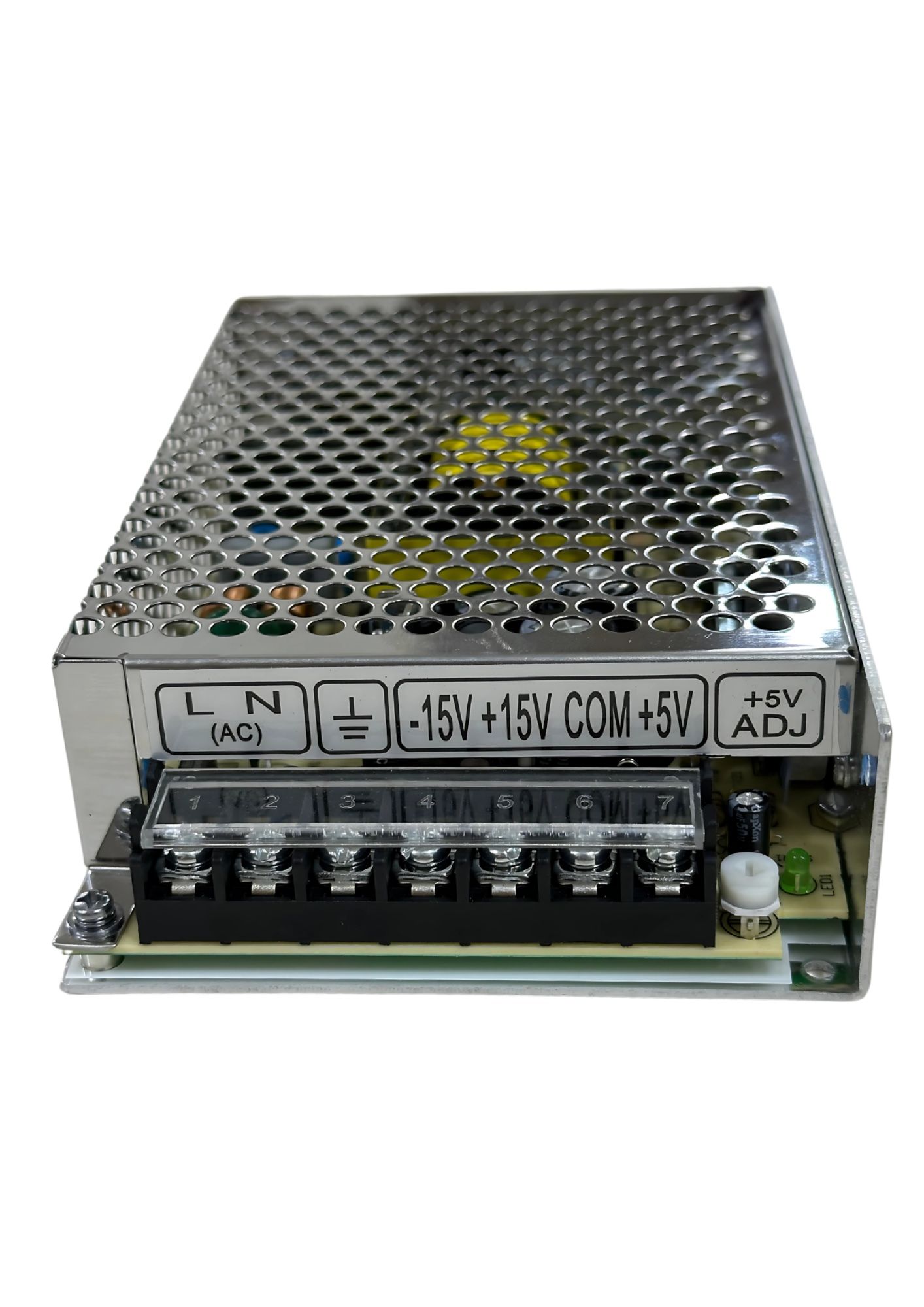

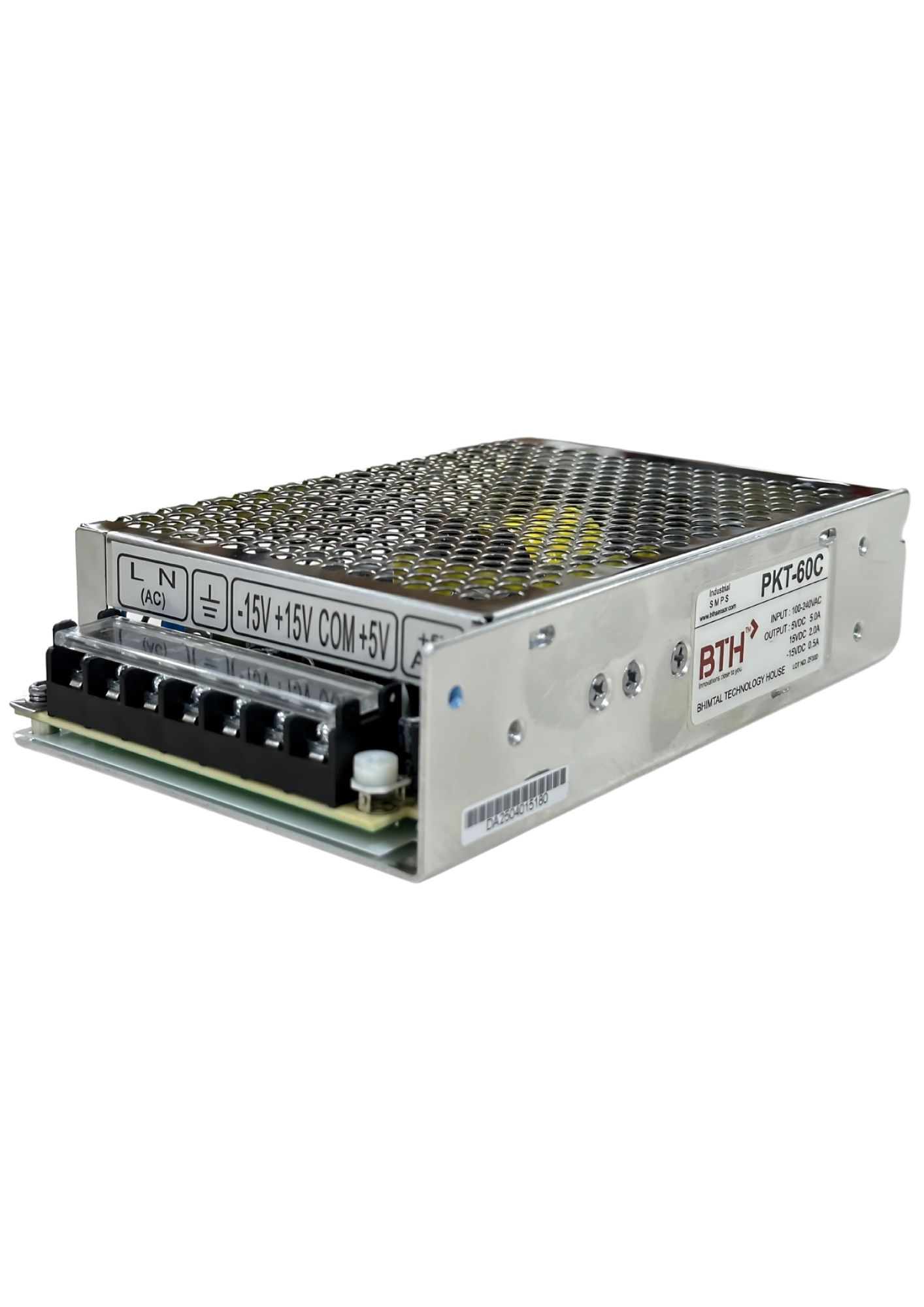

PKT-60C||Triple output Power Supply, 5V 5A, 15V 2A, -15V 0.5A, DC
PKT-60C||Triple output Power Supply, 5V 5A, 15V 2A, -15V 0.5A, DC PKT-60C||Triple output Power Supply, 5V 5A, 15V 2A, -15V 0.5A, DC

PKT-60C||Triple output Power Supply, 5V 5A, 15V 2A, -15V 0.5A, DC

In stock
SKU
PKT-60C
Special Price ₹1,360.80 Regular Price ₹2,160.00
(18% GST Extra)
Add to Wish List
  • High efficiency, high reliability
  • 100% full load and machine test
  • Protection characteristics: short circuit/overload
  • Air cooling
  • Working frequency 37 KHz
  • Size: 159 x 98 x 38mm
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • DC output Voltage, Current: 5V 0~5A, 15V 0~2A, –15V 0~0.5A
  • Wave and Noise: 100mVp-p, 120mVp-p, 120mVp-p
  • Inlet Wire Stability: ± 0.5%, ± 1%, ± 0.5%
  • Load Stability: ± 4%, ± 4%, ± 1%
  • Efficiency: 72%
  • Adjustable Range for DC Voltage: ± 10%, ± 5%, ± 5%
  • Input Voltage Range: 85~264VAC 120~370VDC 47~63Hz
  • Impact Current: Cold start current, 30A/115VAC, 60A/230VAC
  • Overload Protection: 105% ~ 150% cut off the output, automatic recovery
  • Setup, Rise, Hold up time: 300ms, 50ms, 80ms/230VAC at full load
  • Withstand Voltage: I/P–O/P: 1.5kV I/P–FG: 1.5kV O/P–FG 0.5kV 1minute
  • Isolation Resistance: I/P–O/P I/P–FG O/P–FG: 500VDC/100MΩ
  • Working Temperature: – 10°C ~ +50°C
  • Dimension and Weight: 159 x 98 x 38mm 0.55kg
