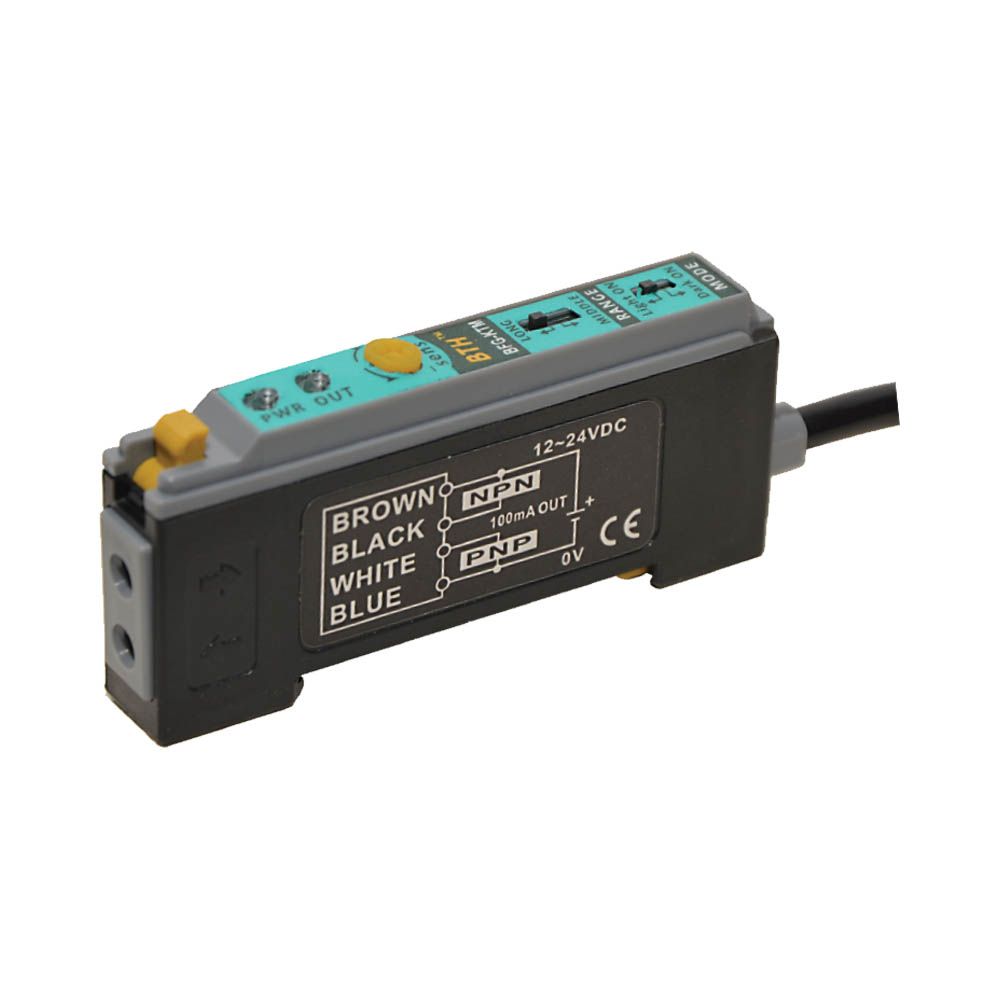

BFG-KTM||Fiber Sensor Amplifier Unit, PNP/NPN Output
In stock
SKU
BFG-KTM
Special Price
₹3,380.00
Regular Price
₹5,200.00
Check Delivery Options at your Area


FREE SHIPPING
Free Shipping by Surface Only*


SECURE PAYMENT
100% Secure Payment
- Emitting Light: Red LED 680 nm
- Operating Voltage: 12 ~ 24 VDC ± 5%
- Current Consumption: 40 mA Max.
- Load Current: 100mA Max. at 24VDC
- Proection circuit: Reversed polarity protection, over-current protection
- Response Time: on 1 ms, off 1 ms
- Indicators: Output indicatore
- Sensitivity adjustment: 20 turns trimmer
- Insulation Resistance Voltage: 20MΩ min. (DC500V)
- Voltage with standability: AC500V 60Hz for 60 Sec.
- Operating Temperature: -10°C ~ + 60°C
- Ambient Humidity: 35% ~ 85% RH
- Protection Degree: IP50
- Material: ABS
- Wiring method: Pre-weird Ø4.2 x 2 M / 4-wires
- Weight: Approx. 55g
No specifications available for this product.
Write Your Own Review
Downloads
Related Products
Check items to add to the cart or
-
BPRC-320||Fiber Optic Cable Diffuse-Anti Bending, Diameter 3mm, Sensing Range 50mmSpecial Price ₹926.25 Regular Price ₹1,425.00
-
BPRC-620||Fiber Optic Cable Diffuse-Anti Bending, Diameter 6mm, Sensing Range 50mmSpecial Price ₹926.25 Regular Price ₹1,425.00
-
BPR-420||Fiber Optic Cable Diffuse-Anti Bending, Diameter 4mm, Sensing Range 50mmSpecial Price ₹926.25 Regular Price ₹1,425.00
-
BPRL-620||Fiber Optic Cable Diffuse-Anti Bending, Extended Tube, Diameter 6mm, Sensing Range 30mmSpecial Price ₹1,056.25 Regular Price ₹1,625.00
-
BPRS-320||Fiber Optic Cable Diffuse-Anti Bending, Side View, Diameter 3mm, Sensing Range 30mmSpecial Price ₹1,381.25 Regular Price ₹2,125.00
-
BPT-320-B1||Fiber Optic Through Beam Cable, Diameter 3mm, Sensing Range 500mmSpecial Price ₹1,072.50 Regular Price ₹1,650.00
-

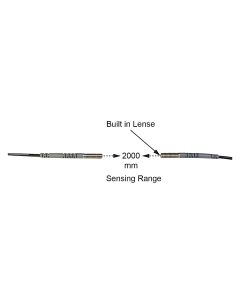

BPT-420-B3||Fiber Optic Through Beam Cable, Diameter 4mm, Sensing Range 2000mmSpecial Price ₹1,690.00 Regular Price ₹2,600.00
