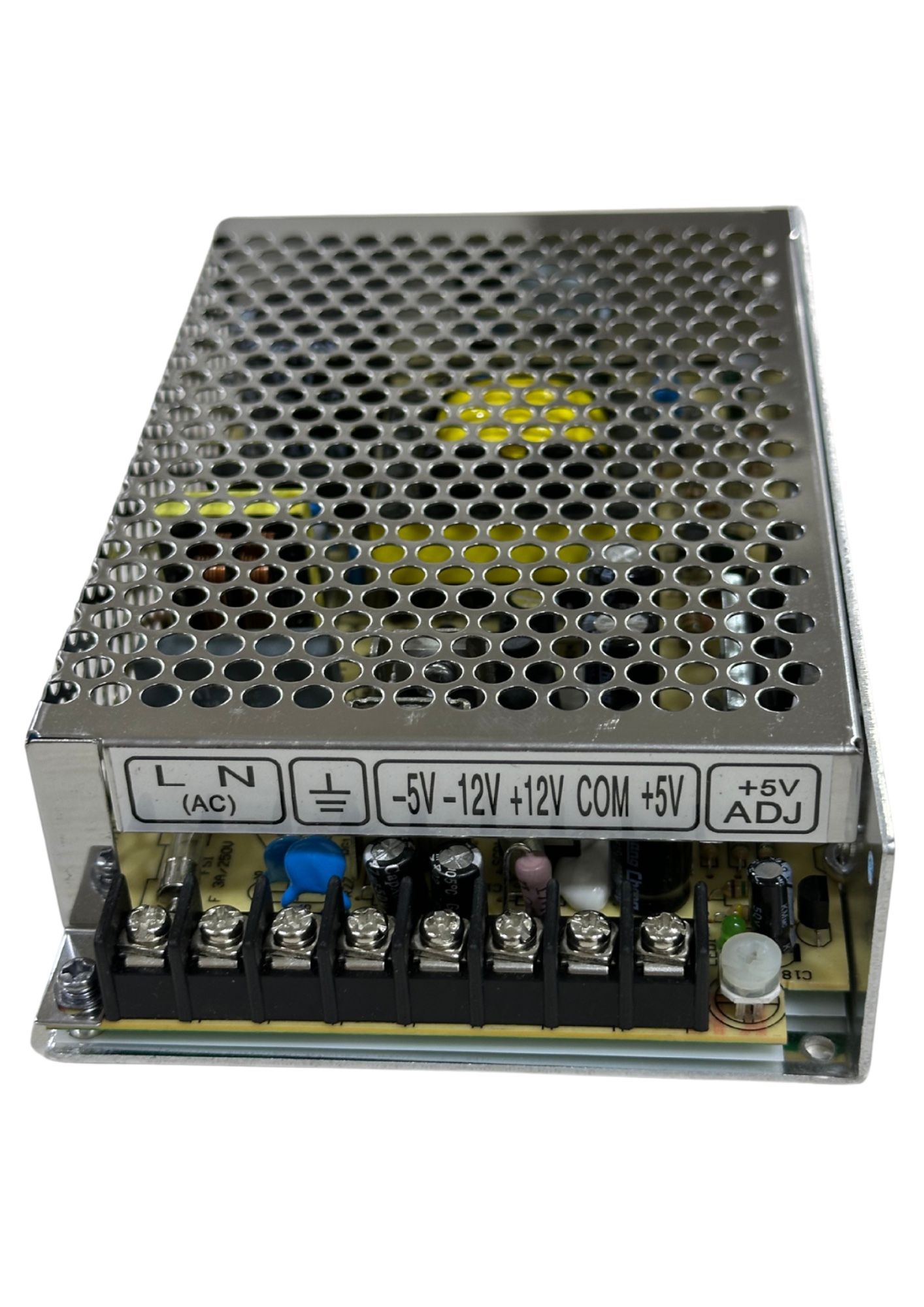

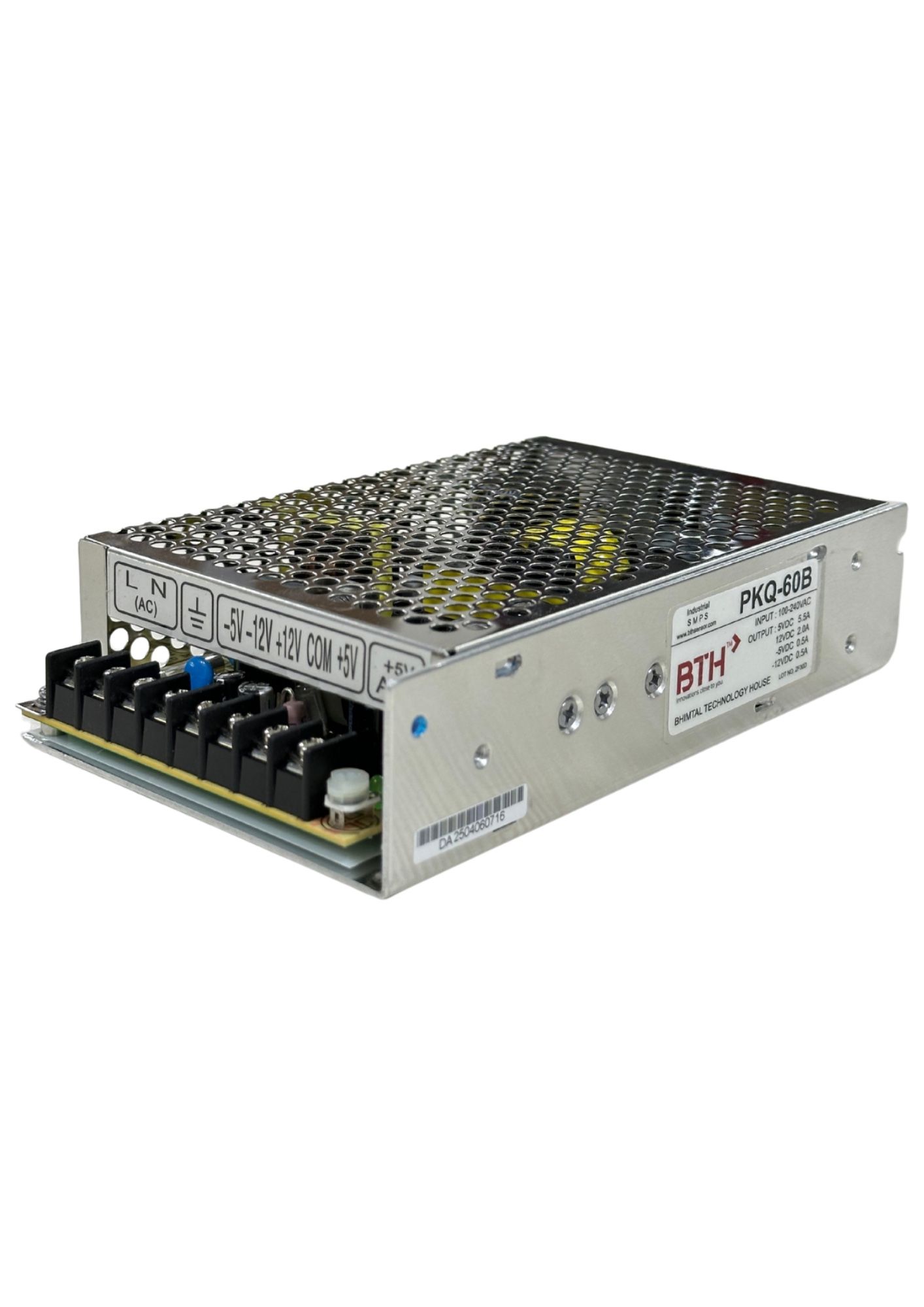

PKQ-60B||Four Output Power Supply, 5V 5.5A, 12V 2A, -5V 0.5A, -12V 0.5A, DC
PKQ-60B||Four Output Power Supply, 5V 5.5A, 12V 2A, -5V 0.5A, -12V 0.5A, DC PKQ-60B||Four Output Power Supply, 5V 5.5A, 12V 2A, -5V 0.5A, -12V 0.5A, DC

PKQ-60B||Four Output Power Supply, 5V 5.5A, 12V 2A, -5V 0.5A, -12V 0.5A, DC

In stock
SKU
PKQ-60B
Special Price ₹1,417.50 Regular Price ₹2,250.00
(18% GST Extra)
Add to Wish List
  • High efficiency, high reliability
  • 100% full load and machine test
  • Protection characteristics
  • Air cooling
  • Working frequency 37 KHz
  • Size: 159 x 98 x 38mm
  • Isolated
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • DC output Voltage, Current: 12V 0~2.5A / –12V 0~2.5A
  • Wave and Noise: 100mVp-p 100mVp-p
  • Inlet Wire Stability: ± 1% ± 1%
  • Load Stability: ± 0.5% ± 5%
  • Efficiency: 73% 73%
  • Adjustable Range for DC Voltage: ± 10% ± 5%
  • Input Voltage Range: 90~132VAC / 180~264VAC by switch 254~370VDC 47 ~ 63Hz
  • Impact Current: 30A/115VAC 60A/230VAC Cold start current
  • Overload Protection: 105% ~ 150% cut off the output, automatic recovery
  • Setup, Rise, Hold up time: 300ms, 50ms, 80ms/230VAC at full load
  • Withstand Voltage: I/P–O/P
  • Isolation Resistance: I/P–O/P I/P–FG O/P–FG
  • Working Temperature: – 10°C ~ +50°C
  • Dimension and Weight: 0.55kg 159 x 98 x 38mm
