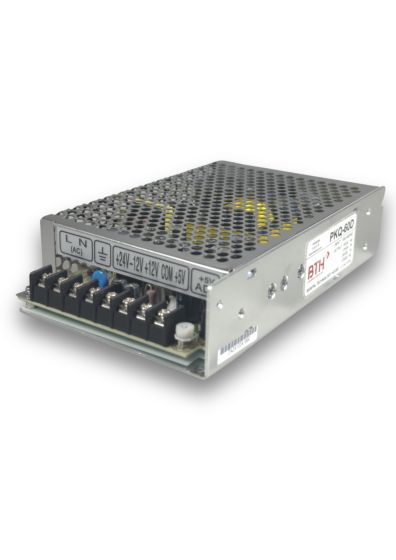

PKQ-60D||Four Output Power Supply, 5V/4A, 12V/1A, 24V/1A, -12V/.5A Output, Panel Mount
PKQ-60D||Four Output Power Supply, 5V/4A, 12V/1A, 24V/1A, -12V/.5A Output, Panel Mount

PKQ-60D||Four Output Power Supply, 5V/4A, 12V/1A, 24V/1A, -12V/.5A Output, Panel Mount

In stock
SKU
PKQ-60D
Special Price ₹1,417.50 Regular Price ₹2,250.00
(18% GST Extra)
Add to Wish List
  • High efficiency, high reliability
  • 100% full load and machine test
  • Protection characteristics
  • Air cooling
  • Working frequency 37 KHz
  • Size: 159 x 98 x 38mm
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • DC output Voltage, Current: 5V-0~4A / 12V-0~1A / 24V-0~1A / –12V-0~0.5A
  • Wave and Noise: 100mVp-p 120mVp-p 150mVp-p 120mVp-p
  • Inlet Wire Stability: ± 0.5% ± 1% ± 2% ± 0.5%
  • Load Stability: ± 0.5% ± 4% ± 4% ± 1%
  • Efficiency: 75% 75% 75% 75%
  • Adjustable Range for DC Voltage: CH1
  • Input Voltage Range: 85~264VAC 120~370VDC 47~63Hz
  • Impact Current: 15A/115VAC 30A/230VAC Cold start current
  • Overload Protection: 105% ~ 150% cut off the output, automatic recovery
  • Setup, Rise, Hold up time: 800ms, 20ms, 60ms/230VAC at full load
  • Withstand Voltage: I/P–O/P
  • Isolation Resistance: I/P–O/P I/P–FG O/P–FG
  • Working Temperature: – 10°C ~ +60°C
  • Dimension and Weight: – 159 x 98 x 38mm 0.55kg
