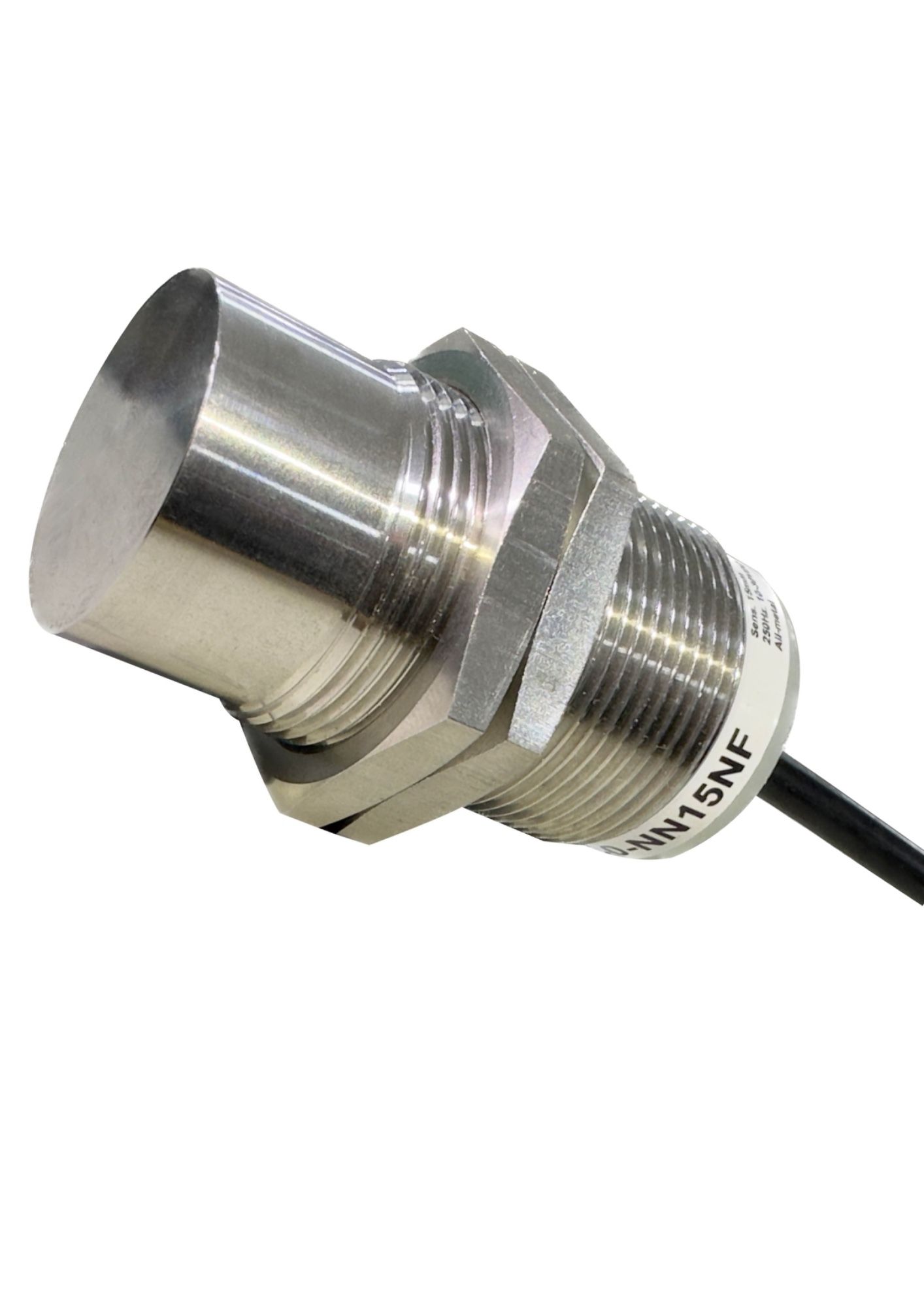

BIW30-PN15NF ||Full Stainless Steel Inductive Proximity Sensor, Diameter 30mm, Sensing Range 15mm, PNP NO

In stock

SKU

BIW30-PN15NF

Special Price ₹4,225.00 Regular Price ₹6,500.00

(18% GST Extra)

Qty

Add to Wish List

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

100% Secure Payment

Function: Make PNP (NO)
Size: M30
Detecting Distance: 15mm
Standard sensing object: 30 x 30 x 1mm (Iron)
Detectable object: Ferrous metal 100%, The sensing distance decreases with non-ferrous metal i.e. stainless steel 60%, brass 50%, aluminum 40%, copper 30%
Response Frequency: 200Hz
Power Supply (Operating Voltage): 10 to 30 VDC, ripple (p-p)
Load current: 150mA
No load: <10mA
Leakage current: <0.01mA
Residual Voltage: <1.5V
Indicator: Operating LED indicator
Protection Circuit: Surge protection circuit, Over current, reverse polarity protection
Operating temperature: -25ºC ~ 70ºC
Insulation resistance: 50MΩ min (at 500VDC) between current-carrying parts and case
Dielectric strength: 1000VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Degree of protection: IP67
Connection method: Pre-wired models - standard cable
Material: Stainless Steel
Weight: Approx. 170g

No specifications available for this product.
