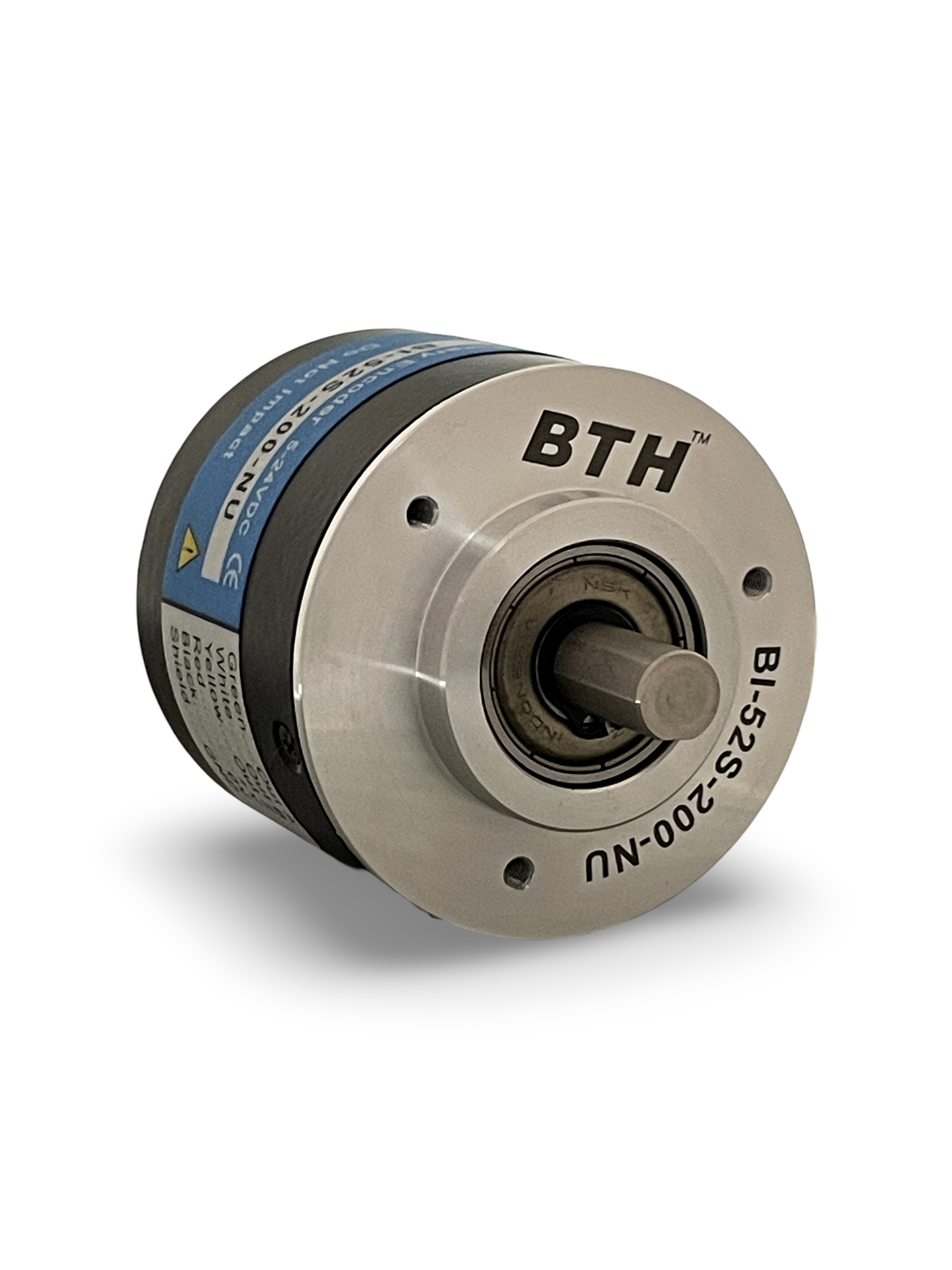

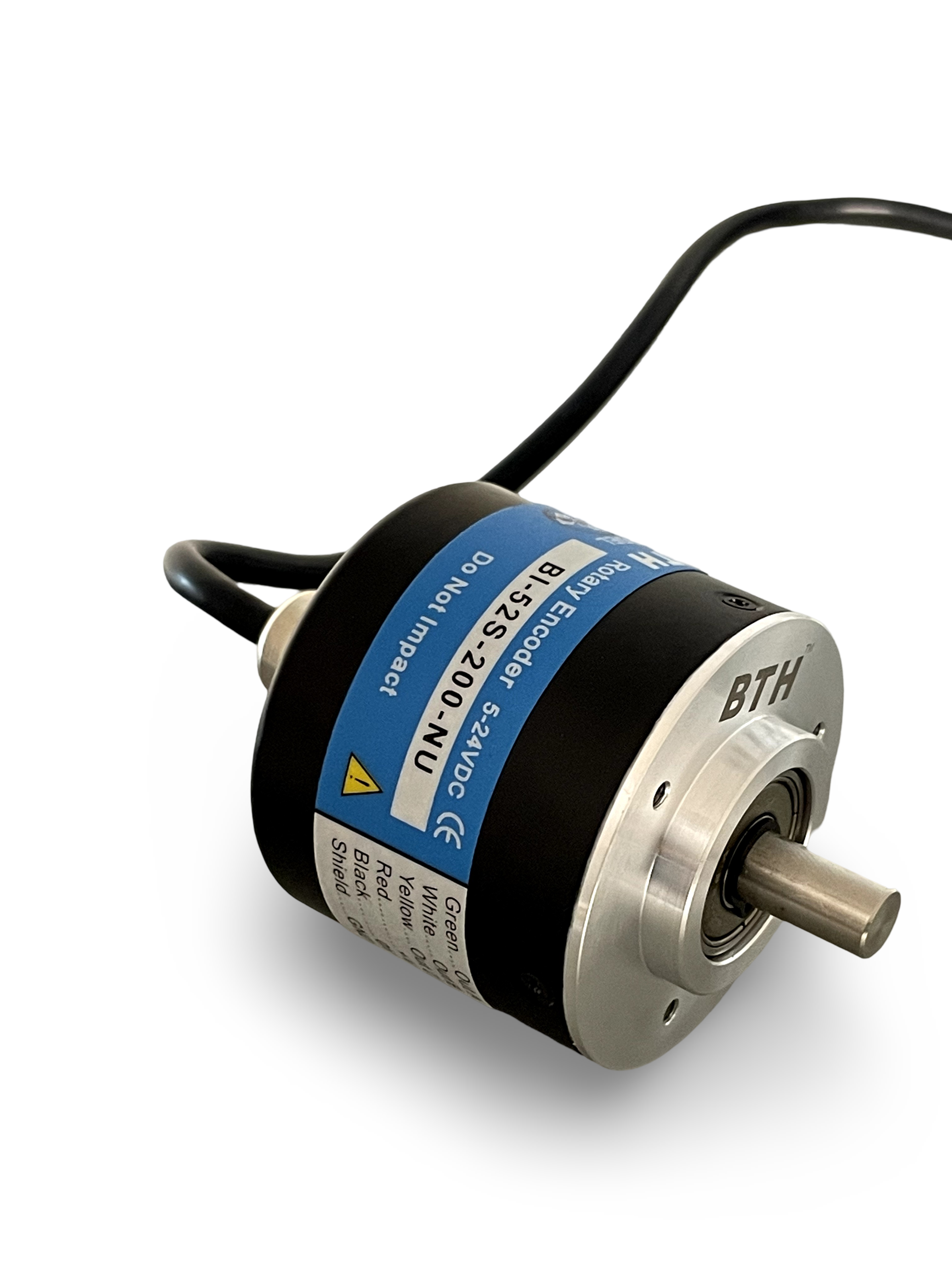

BI-52S-200-NU||Incremental Rotary Encoder, Diameter 52mm, Shaft Type, Shaft Diameter 8mm, PPR 200, NPN, 5~24V DC
BI-52S-200-NU||Incremental Rotary Encoder, Diameter 52mm, Shaft Type, Shaft Diameter 8mm, PPR 200, NPN, 5~24V DC BI-52S-200-NU||Incremental Rotary Encoder, Diameter 52mm, Shaft Type, Shaft Diameter 8mm, PPR 200, NPN, 5~24V DC

BI-52S-200-NU||Incremental Rotary Encoder, Diameter 52mm, Shaft Type, Shaft Diameter 8mm, PPR 200, NPN, 5~24V DC

Be the first to review this product
In stock
SKU
BI-52S-200-NU
Special Price ₹4,705.80 Regular Price ₹7,590.00
(18% GST Extra)
Add to Wish List
  • Thin design with an external diameter of Ø52 mm / depth of 47.5 mm
  • Easy installation, excellent for middle duty load
  • Small diameter lineup with resolution up to 5000 P/R
  • Low price contributes to cost reduction of system
  • IP54 protective structure
  • Wide range of power sources
  • Various output types
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Output Circuit: NPN Open Collector
  • Supply Voltage: 5~24VDC
  • Outer Diameter: 52mm
  • Shaft Diameter: 8mm
  • Pulse Per Revolution (PPR): 200 PPR
  • Max. Speed: 6000RPM
  • Max. Speed Continuous: Max. Response Frequency/ Resolution
  • Rotor Moment of Inertia: approx. 1.8 x 10-6 kgm²
  • Shock Resistance: 75G/11ms
  • Vibration Resistance: 10G , 10-200Hz
  • Starting Torque: Max. 80gf .cm (6,860 µN . m)
  • Shaft Material: SS
  • Body Material: Aluminum alloy 2A12
  • Outer Case Material: Iron
  • Disk Material: Glass
  • Cable: 2 Mtr. Black shield cable, side entry
  • Degree of Protection: IP 54
  • Weight: 300g
  • Position Deflection of Allowable Shaft: Radial
  • Allowable Shaft Load: Radial
  • Operating Temperature Range: -30ºC ~ +85ºC (No freezing) at 30% ~ 85% RH
Product Variants

No specifications available for this product.

Reviews
Write Your Own Review
You're reviewing:BI-52S-200-NU||Incremental Rotary Encoder, Diameter 52mm, Shaft Type, Shaft Diameter 8mm, PPR 200, NPN, 5~24V DC
Your Rating
Downloads
document BI-52S-200-NU-Datasheet (132.03 kB)
