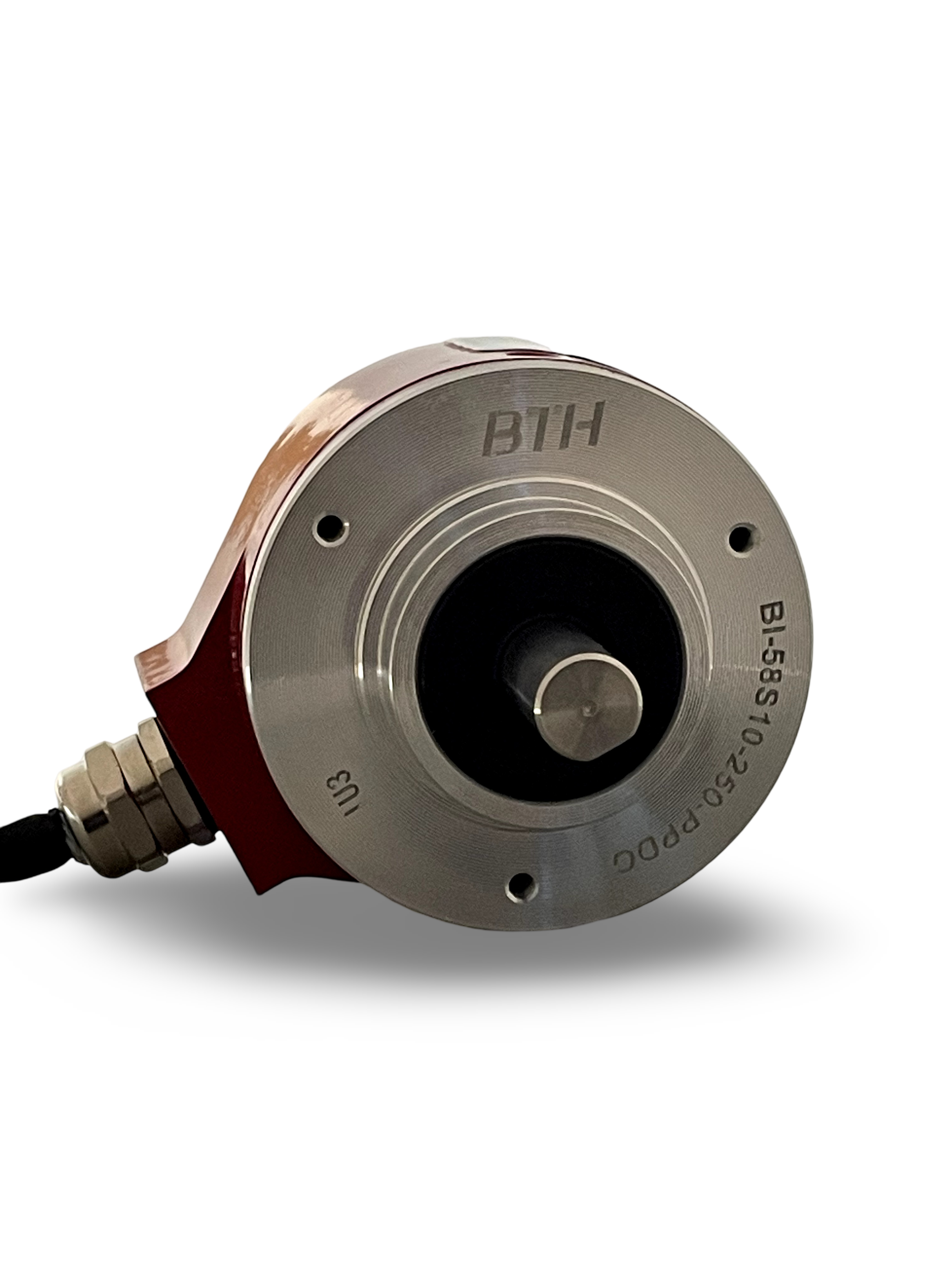

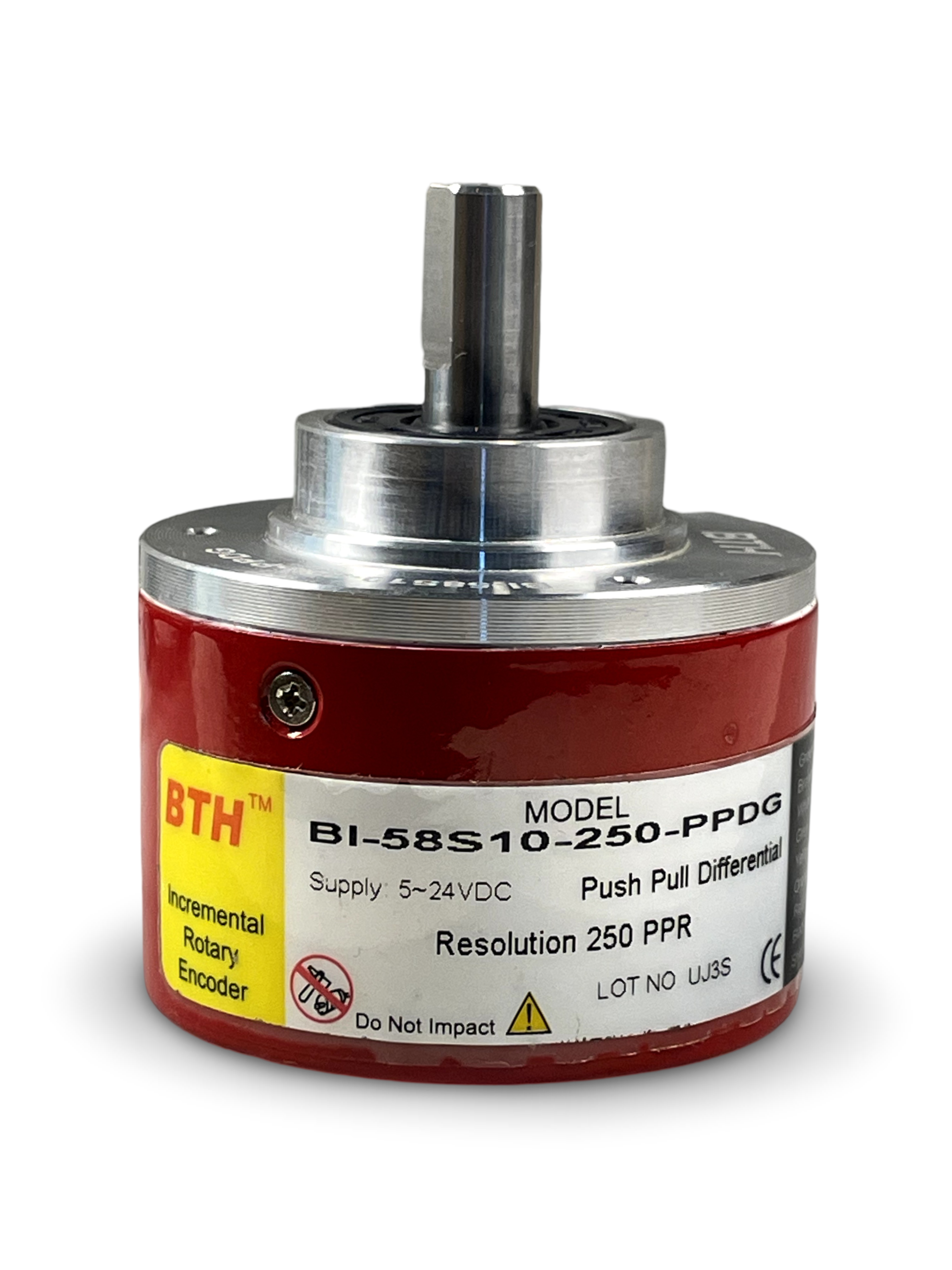

BI-58S10-250-PPDG||Incremental Rotary Encoder, Diameter 58mm, Shaft Type, Shaft Diameter 10mm, PPR 250, Push Pull Differential, 5~24V DC
BI-58S10-250-PPDG||Incremental Rotary Encoder, Diameter 58mm, Shaft Type, Shaft Diameter 10mm, PPR 250, Push Pull Differential, 5~24V DC BI-58S10-250-PPDG||Incremental Rotary Encoder, Diameter 58mm, Shaft Type, Shaft Diameter 10mm, PPR 250, Push Pull Differential, 5~24V DC

BI-58S10-250-PPDG||Incremental Rotary Encoder, Diameter 58mm, Shaft Type, Shaft Diameter 10mm, PPR 250, Push Pull Differential, 5~24V DC

Be the first to review this product
In stock
SKU
BI-58S10-250-PPDG
Special Price ₹6,308.50 Regular Price ₹10,175.00
(18% GST Extra)
Add to Wish List
  • Ø58 mm European Industrial standard encoder
  • Robustness and excellent resistance to shocks / vibrations
  • High resolutions available
  • Low price contributes to cost reduction of system
  • High protection level IP64
  • Wide range of power sources
  • Various output types
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Output Circuit: Push Pull Differential
  • Supply Voltage: 5~24VDC
  • Outer Diameter: 58mm
  • Shaft Diameter: 10mm
  • Pulse Per Revolution (PPR): 250 PPR
  • Max. Speed: 6000RPM
  • Max. Speed Continuous: Max. Response Frequency/ Resolution
  • Rotor Moment of Inertia: approx. 1.8 x 10-6 kgm²
  • Shock Resistance: 50G/11ms
  • Vibration Resistance: 100 m/s2 , 10...2000Hz
  • Starting Torque: <0.05 Nm
  • Shaft Material: SS
  • Body Material: Aluminum alloy 2A12
  • Outer Case Material: Al-alloy
  • Disk Material: Glass
  • Cable: 2 Mtr. Black shield cable, side entry
  • Degree of Protection: IP 64
  • Weight: 350g
  • Position Deflection of Allowable Shaft: Radial
  • Allowable Shaft Load: Radial
  • Operating Temperature Range: -30ºC ~ +85ºC (No freezing) at 30% ~ 85% RH
Product Variants

No specifications available for this product.

Reviews
Write Your Own Review
You're reviewing:BI-58S10-250-PPDG||Incremental Rotary Encoder, Diameter 58mm, Shaft Type, Shaft Diameter 10mm, PPR 250, Push Pull Differential, 5~24V DC
Your Rating
Downloads
document BI-58S10-250-PPDG-Datasheet (142.32 kB)
