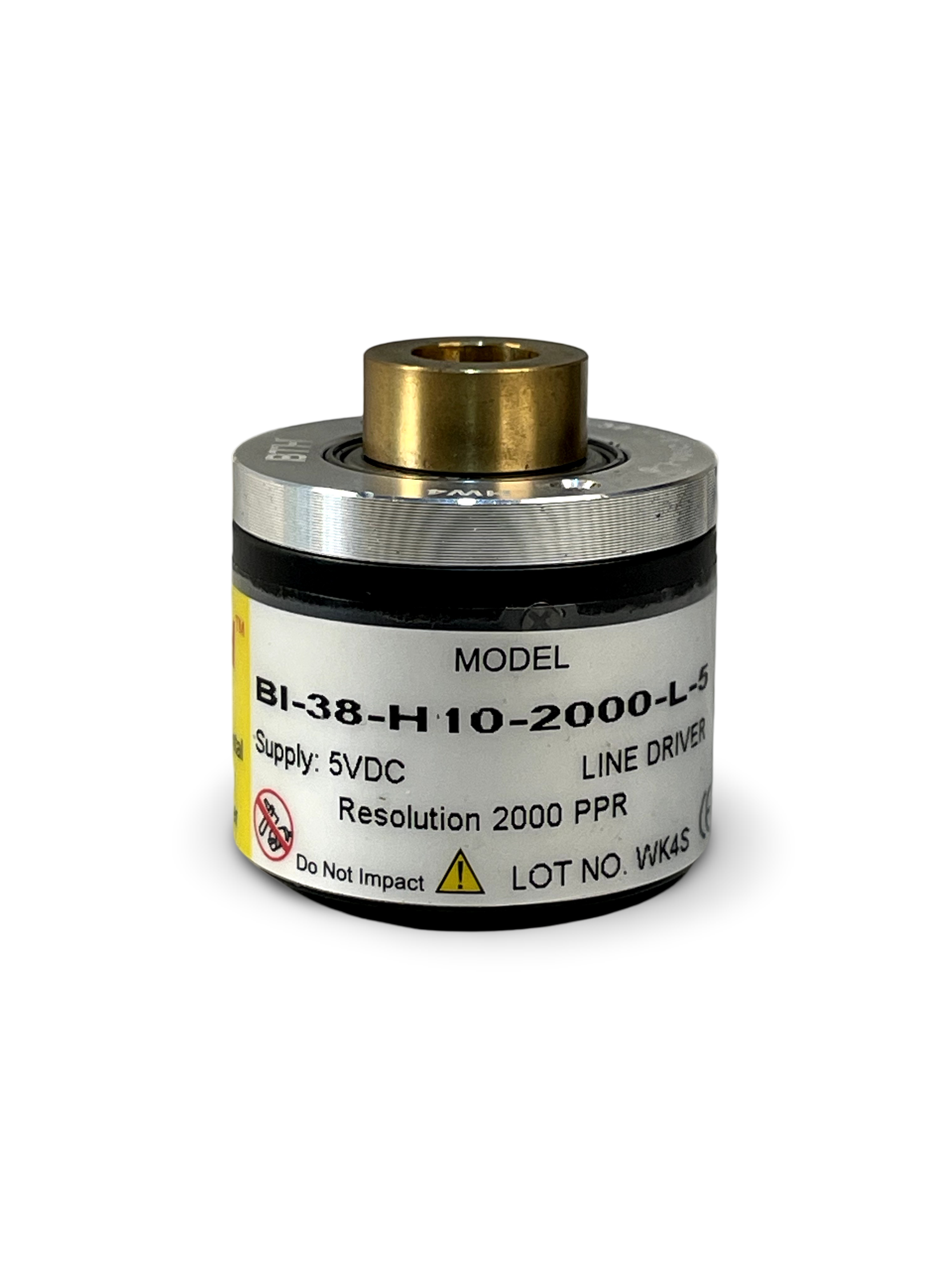

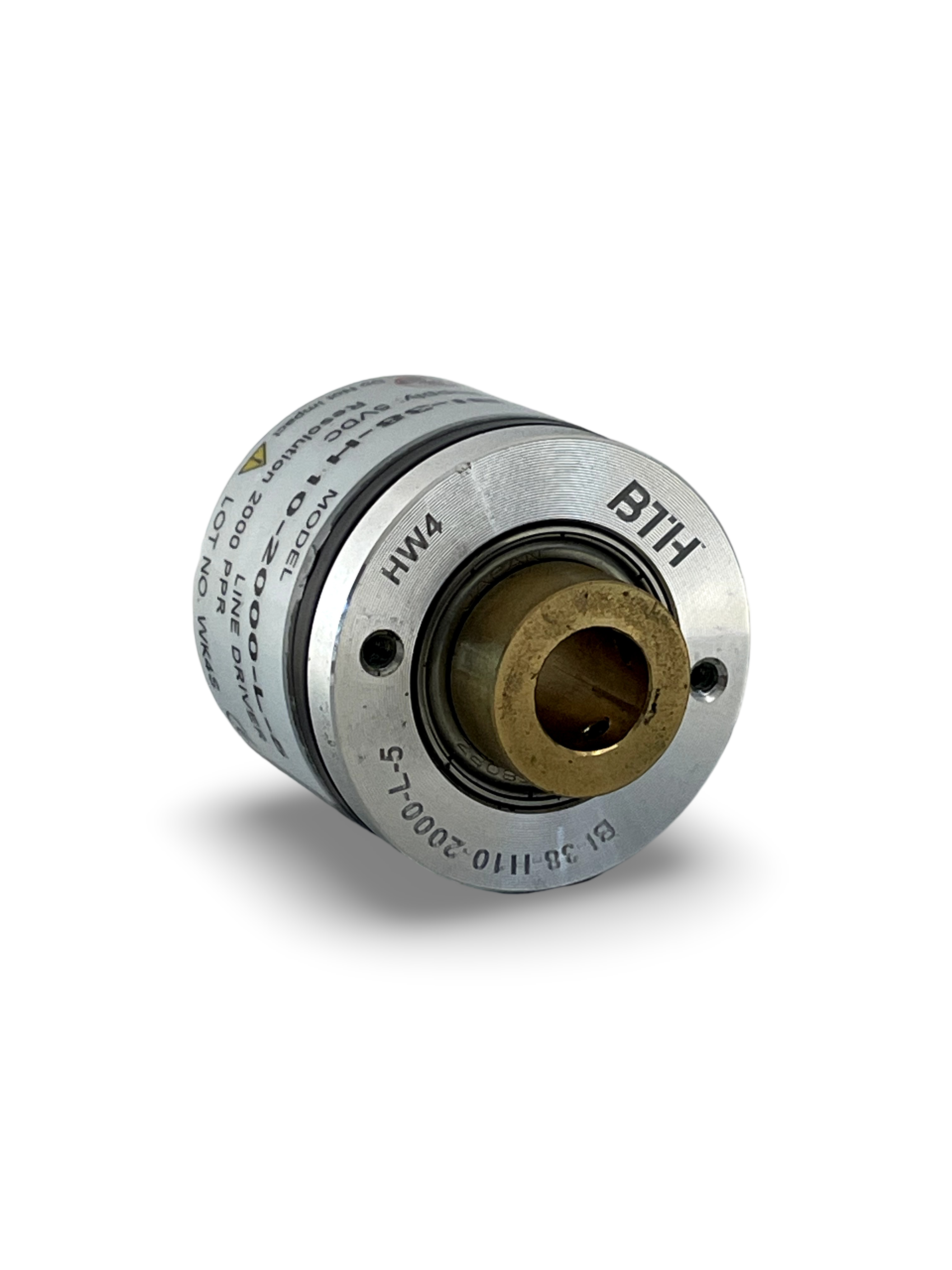

BI-38-H10-2000-L-5||Incremental Rotary Encoder, Hollow Type, Diameter 38mm, Hollow Diameter 10mm, PPR 2000, Line Driver, 5V DC
BI-38-H10-2000-L-5||Incremental Rotary Encoder, Hollow Type, Diameter 38mm, Hollow Diameter 10mm, PPR 2000, Line Driver, 5V DC BI-38-H10-2000-L-5||Incremental Rotary Encoder, Hollow Type, Diameter 38mm, Hollow Diameter 10mm, PPR 2000, Line Driver, 5V DC

BI-38-H10-2000-L-5||Incremental Rotary Encoder, Hollow Type, Diameter 38mm, Hollow Diameter 10mm, PPR 2000, Line Driver, 5V DC

Be the first to review this product
In stock
SKU
BI-38-H10-2000-L-5
Special Price ₹5,319.60 Regular Price ₹8,580.00
(18% GST Extra)
Add to Wish List
  • Thin design with an external diameter of Ø38 mm / depth of 32 mm
  • Easy installation in narrow spaces
  • Small diameter lineup with resolution up to 3600 P/R
  • Low price contributes to cost reduction of system
  • IP50 protective structure
  • Wide range of power sources
  • Various output types
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Output Circuit: Line Driver
  • Supply Voltage: 5VDC
  • Outer Diameter: 38mm
  • Hollow Inside Diameter: 10mm
  • Pulse Per Revolution (PPR): 2000 PPR
  • Max. Speed: 6000RPM
  • Max. Speed Continuous: Max. Response Frequency/ Resolution
  • Rotor Moment of Inertia: approx. 4 x 10-6 kgm²
  • Shock Resistance: 50 m/s² , 6ms
  • Vibration Resistance: 20 m/s² , 10-200Hz
  • Starting Torque: <0.3 Nm
  • Shaft Material: Copper
  • Body Material: Aluminum alloy 2A12
  • Outer Case Material: Iron
  • Disk Material: Glass
  • Cable: 2 Mtr. Black shield cable, side entry
  • Degree of Protection: IP 50
  • Weight: 150g
  • Position Deflection of Allowable Shaft: Radial
  • Allowable Shaft Load: Radial
  • Operating Temperature Range: -30ºC ~ +85ºC (No freezing) at 30% ~ 85% RH
Product Variants

No specifications available for this product.

Reviews
Write Your Own Review
You're reviewing:BI-38-H10-2000-L-5||Incremental Rotary Encoder, Hollow Type, Diameter 38mm, Hollow Diameter 10mm, PPR 2000, Line Driver, 5V DC
Your Rating
Downloads
document BI-38H10-2000-L-5-Datasheet (255.57 kB)
