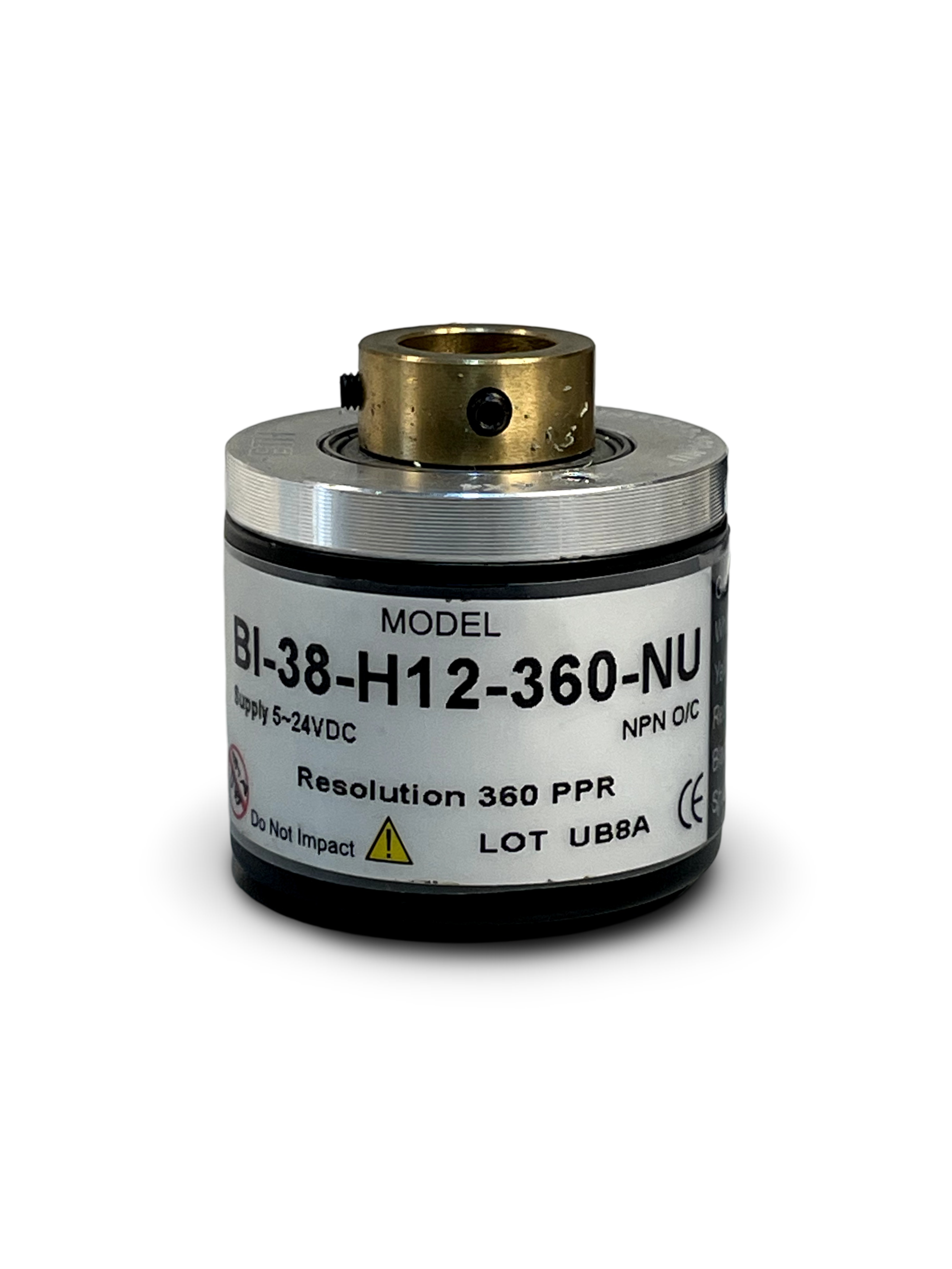

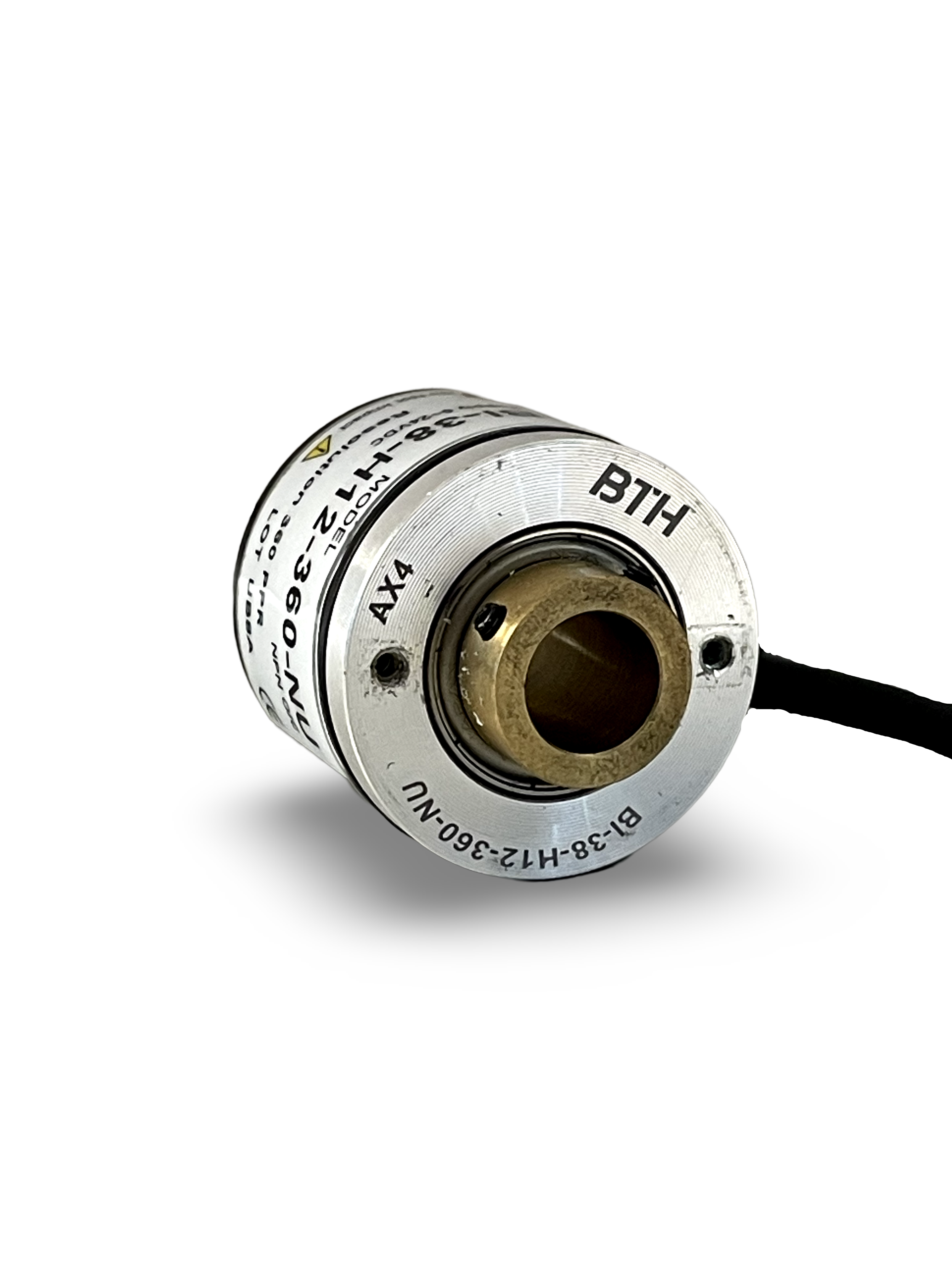

BI-38-H12-360-NU||Incremental Rotary Encoder, Hollow Type, Diameter 38mm, Hollow Diameter 12mm, PPR 360, NPN, 5~24V DC

BI-38-H12-360-NU||Incremental Rotary Encoder, Hollow Type, Diameter 38mm, Hollow Diameter 12mm, PPR 360, NPN, 5~24V DC

BI-38-H12-360-NU||Incremental Rotary Encoder, Hollow Type, Diameter 38mm, Hollow Diameter 12mm, PPR 360, NPN, 5~24V DC

BI-38-H12-360-NU||Incremental Rotary Encoder, Hollow Type, Diameter 38mm, Hollow Diameter 12mm, PPR 360, NPN, 5~24V DC

Be the first to review this product

In stock

SKU

BI-38-H12-360-NU

Special Price ₹4,705.80 Regular Price ₹7,590.00

(18% GST Extra)

Qty

Add to Wish List

Thin design with an external diameter of Ø38 mm / depth of 32 mm
Easy installation in narrow spaces
Small diameter lineup with resolution up to 3600 P/R
Low price contributes to cost reduction of system
IP50 protective structure
Wide range of power sources
Various output types

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Output Circuit: NPN Open Collector
Supply Voltage: 5~24VDC
Outer Diameter: 38mm
Hollow Inside Diameter: 12mm
Pulse Per Revolution (PPR): 360 PPR
Max. Speed: 6000RPM
Max. Speed Continuous: Max. Response Frequency/ Resolution
Rotor Moment of Inertia: approx. 4 x 10-6 kgm²
Shock Resistance: 50 m/s² , 6ms
Vibration Resistance: 20 m/s² , 10-200Hz
Starting Torque: <0.3 Nm
Shaft Material: Copper
Body Material: Aluminum alloy 2A12
Outer Case Material: Iron
Disk Material: Glass
Cable: 2 Mtr. Black shield cable, side entry
Degree of Protection: IP 50
Weight: 150g
Position Deflection of Allowable Shaft: Radial
Allowable Shaft Load: Radial
Operating Temperature Range: -30ºC ~ +85ºC (No freezing) at 30% ~ 85% RH
