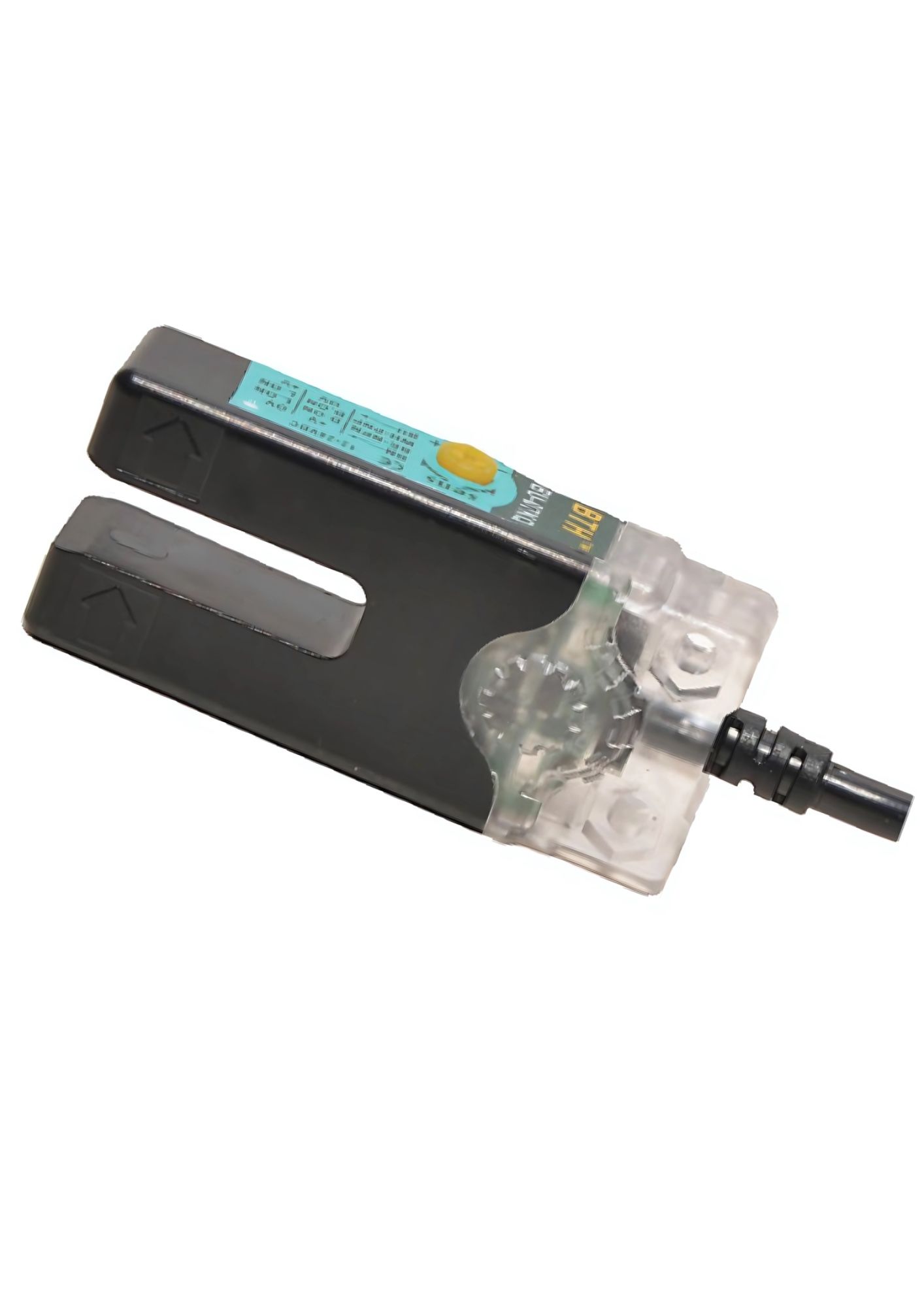

BU-07KQ||Label Detection U-Shape Photo Sensor, PNP/NPN NO/NC Selectable
BU-07KQ||Label Detection U-Shape Photo Sensor, PNP/NPN NO/NC Selectable

BU-07KQ||Label Detection U-Shape Photo Sensor, PNP/NPN NO/NC Selectable

In stock
SKU
BU-07KQ
Special Price ₹4,225.00 Regular Price ₹6,500.00
(18% GST Extra)
Add to Wish List
  • 12 Turn sensitivity adjuster to detect different colours.
  • Suitable for address reading and cut mark sensing.
  • High repeat accuracy
  • Narrow light beam
  • Output PNP / NPN / NO / NC
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Output Type: PNP(NO) Dark on / PNP(NC) Light on / NPN(NO) Dark on / NPN(NC) Light on
  • Slot Width: 07 mm
  • Emitting Light: Infrared LED 660 nm
  • Min. detection object : Opaque (Ø0.5 x 10.0 mm)
  • Operating Voltage: 12~24VDC
  • Current Consumption: 18 mA Max.
  • Load Current: 100ma Max. at 24VDC
  • Response Time: 1 ms Max.
  • Ambient illumination: Incandescent light / 1,000 lux max.
  • Insulation Resistance: 20MΩ min. (DC500V)
  • Voltage With Standability: AC500V 60Hz for 60 Sec.
  • Operating Temperature: -10°C ~ + 55°C
  • Ambient Humidity: 35% ~ 85% RH
  • Vibration resistance: 1.5-mm peak-to-peak amplitude, 10 to 55 Hz, 2 hours each in X, Y, and Z directions
  • Shock Resistance: 50G, repeated 10 times each in X, Y, and Z directions
  • Material: PC
  • Protection Degree: IP64
  • Wiring Method: Pre-wired Ø4.2 x 2 M / 3-wires
  • Weight: Approx. 65g
