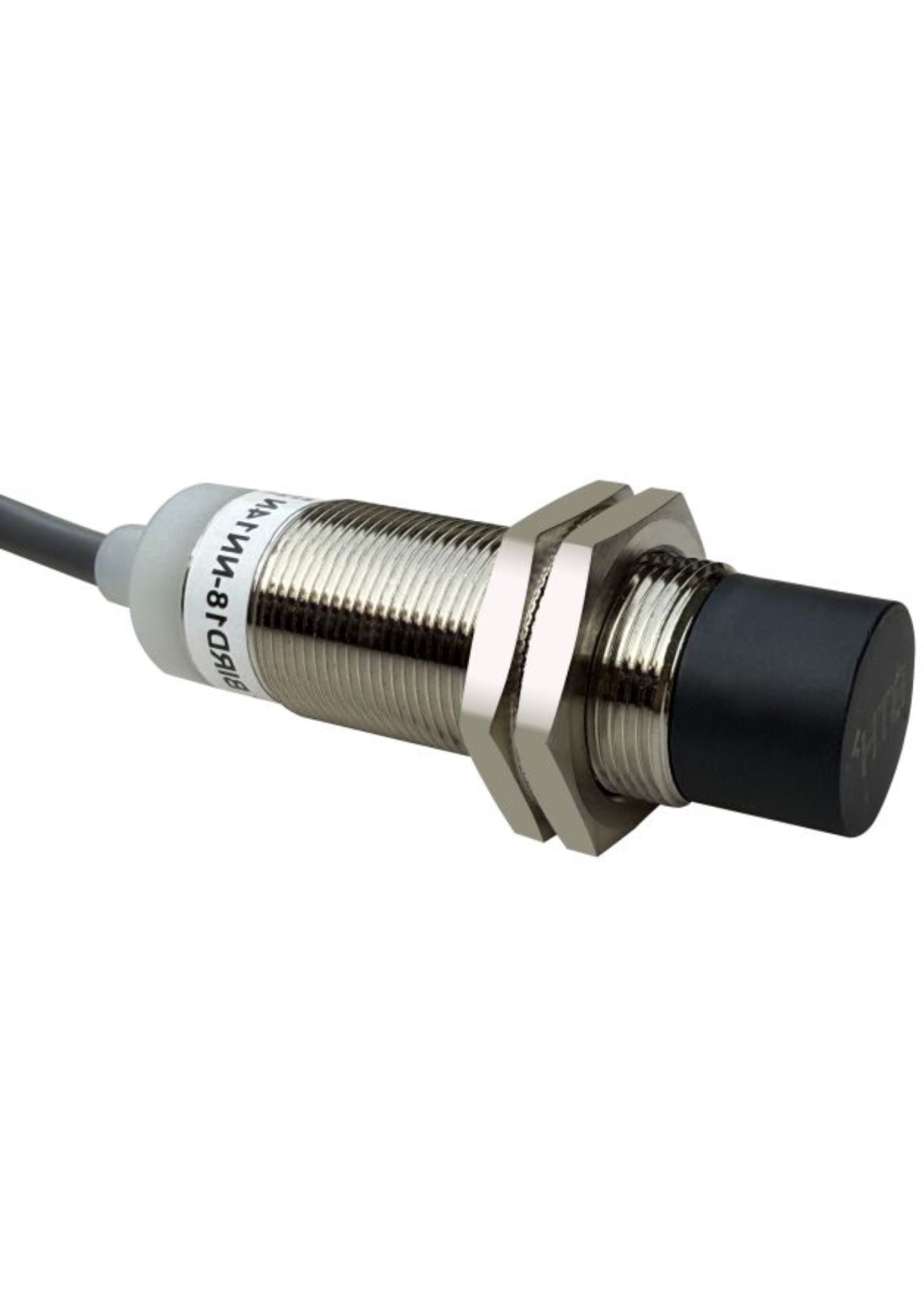

BIRD18-PN14N||Long Range BIRD Series Inductive Proximity Sensor, Diameter 18mm, Sensing Range 14mm, Non Flush, PNP NO
In stock
SKU
BIRD18-PN14N
Special Price
₹780.00
Regular Price
₹1,200.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Model | BIRD18-PN14N |
| Function | PNP |
| Switching | NO |
| Sensing distance Sn | 14mm |
| Response frequency | 200Hz |
| Mounting | Non flush mountable |
| Dia | φ18mm |
| Standard detecting target | 30×30×1mm (lron) |
| Hysteresis | Within 1%-10% of sensing distance |
| Supply voltage | 10~30VDC |
| No load current | max 10mA |
| Voltage drop | max 1.5VDC |
| Temperature influence | When at –25ºC ~ 70ºC sensing distance within ±15% of sensing distance at rated voltage |
| Output current | 200mA |
| Insulation resistance | 50MΩ min. (at 500VDC) |
| Dielectric strength | 1000VAC, 50/60Hz for 1min |
| Vibration resistance | Withstand: 10 to 55Hz, 1.5mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock resistance | Withstand: 500m/s (about 50g) 10 times each in X, Y, and Z directions |
| Indicator | Indicator 360° visible (yellow LED) |
| Ambient temperature | –25ºC to 70ºC (non-freezing condition), Storage –40ºC to 85ºC (non-freezing condition) |
| Ambient humidity | 35% to 95%RH |
| Protection circuit | Reverse polarity protection, Surge protection circuit, Overload & short circuit protection |
| Protection | IP67 |
| Connection | Pre wired 2mtr. PVC cable |
| Housing material | Brass with nickle coated, Sensing face & Indication window ABS heat resistance ABS |
| Approval | CE |
