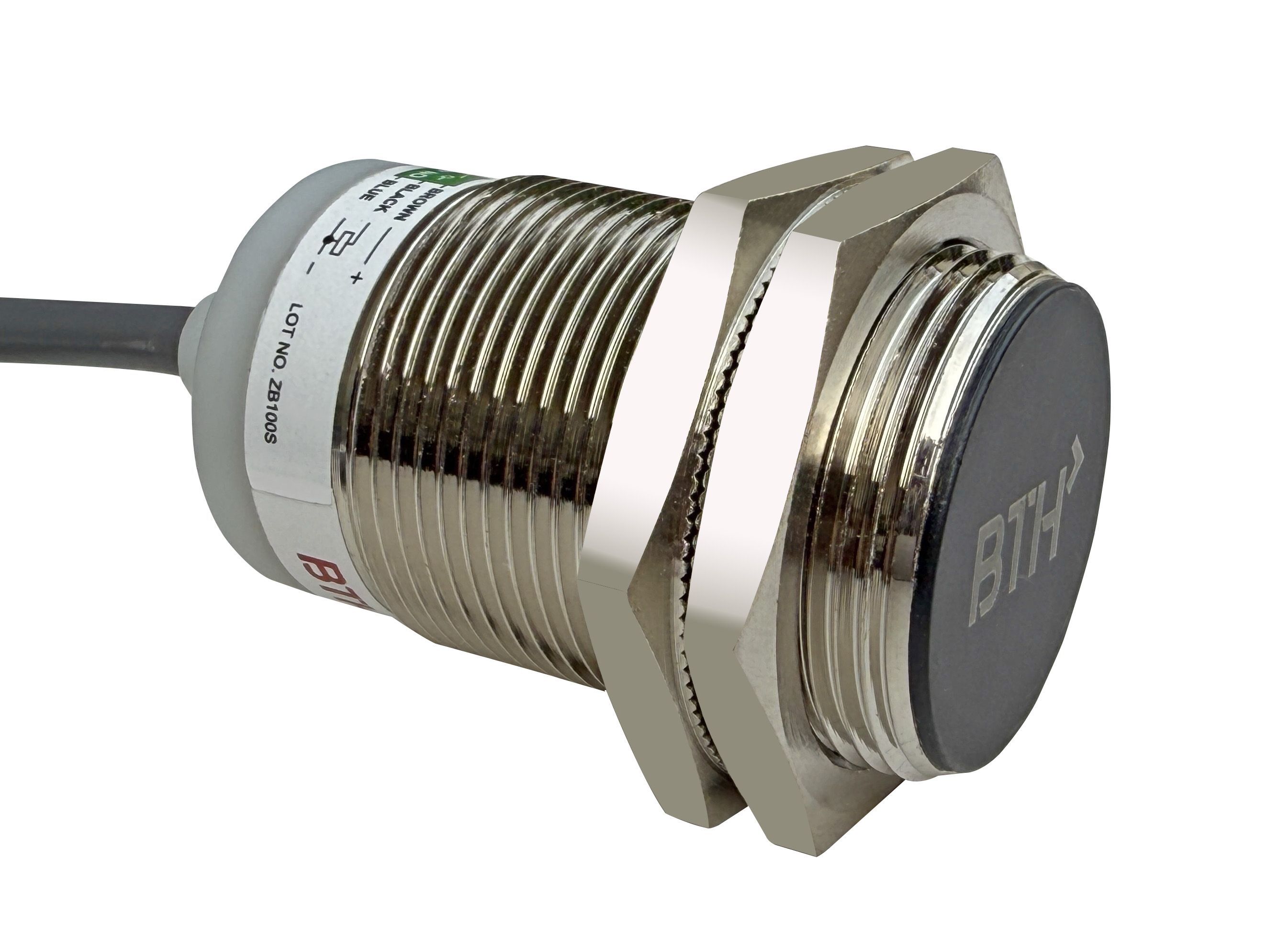

BIRD30-NN15F||Long Range BIRD Series Inductive Proximity Sensor, Diameter 30mm, Sensing Range 15mm, Flush, NPN NO
BIRD30-NN15F||Long Range BIRD Series Inductive Proximity Sensor, Diameter 30mm, Sensing Range 15mm, Flush, NPN NO

BIRD30-NN15F||Long Range BIRD Series Inductive Proximity Sensor, Diameter 30mm, Sensing Range 15mm, Flush, NPN NO

In stock
SKU
BIRD30-NN15F
Special Price ₹1,202.50 Regular Price ₹1,850.00
(18% GST Extra)
Add to Wish List
  • Long-distance detection at up to 25mm enables secure mounting
  • Install at any angle, Indicator light is visible at 360°
  • Chip integrated, stable and reliable performance
  • Strain relief cable
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Model BIRD30-NN15F
Function NPN
Switching NO
Sensing distance Sn  15mm
Response frequency 300Hz
Mounting Flush mountable
Dia φ30mm
Standard detecting target 30×30×1mm (lron)
Hysteresis Within 1%-10% of sensing distance
Supply voltage 10~30VDC
No load current max 10mA
Voltage drop max 1.5VDC
Temperature influence When at –25ºC ~ 70ºC sensing distance within ±15% of sensing distance at rated voltage
Output current 200mA
Insulation resistance 50MΩ min. (at 500VDC)
Dielectric strength 1000VAC, 50/60Hz for 1min
Vibration resistance Withstand: 10 to 55Hz, 1.5mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance Withstand: 500m/s (about 50g) 10 times each in X, Y, and Z directions
Indicator Indicator 360° visible (yellow LED)
Ambient temperature –25ºC to 70ºC (non-freezing condition), Storage –40ºC to 85ºC (non-freezing condition)
Ambient humidity 35% to 95%RH
Protection circuit Reverse polarity protection, Surge protection circuit, Overload & short circuit protection
Protection IP67
Connection Pre wired 2mtr. PVC cable
Housing material Brass with nickle coated, Sensing face & Indication window ABS heat resistance ABS
Approval CE

No specifications available for this product.
