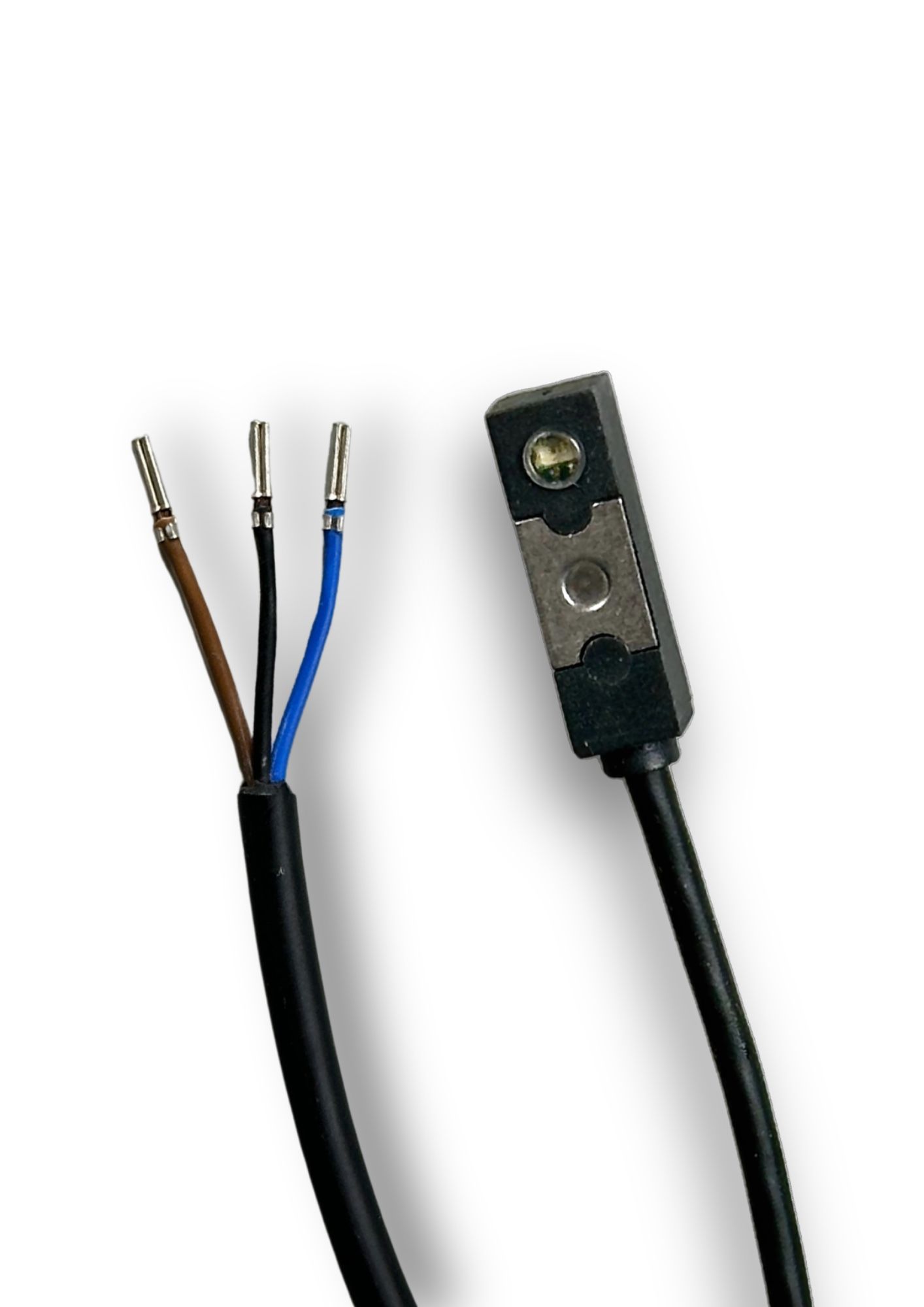

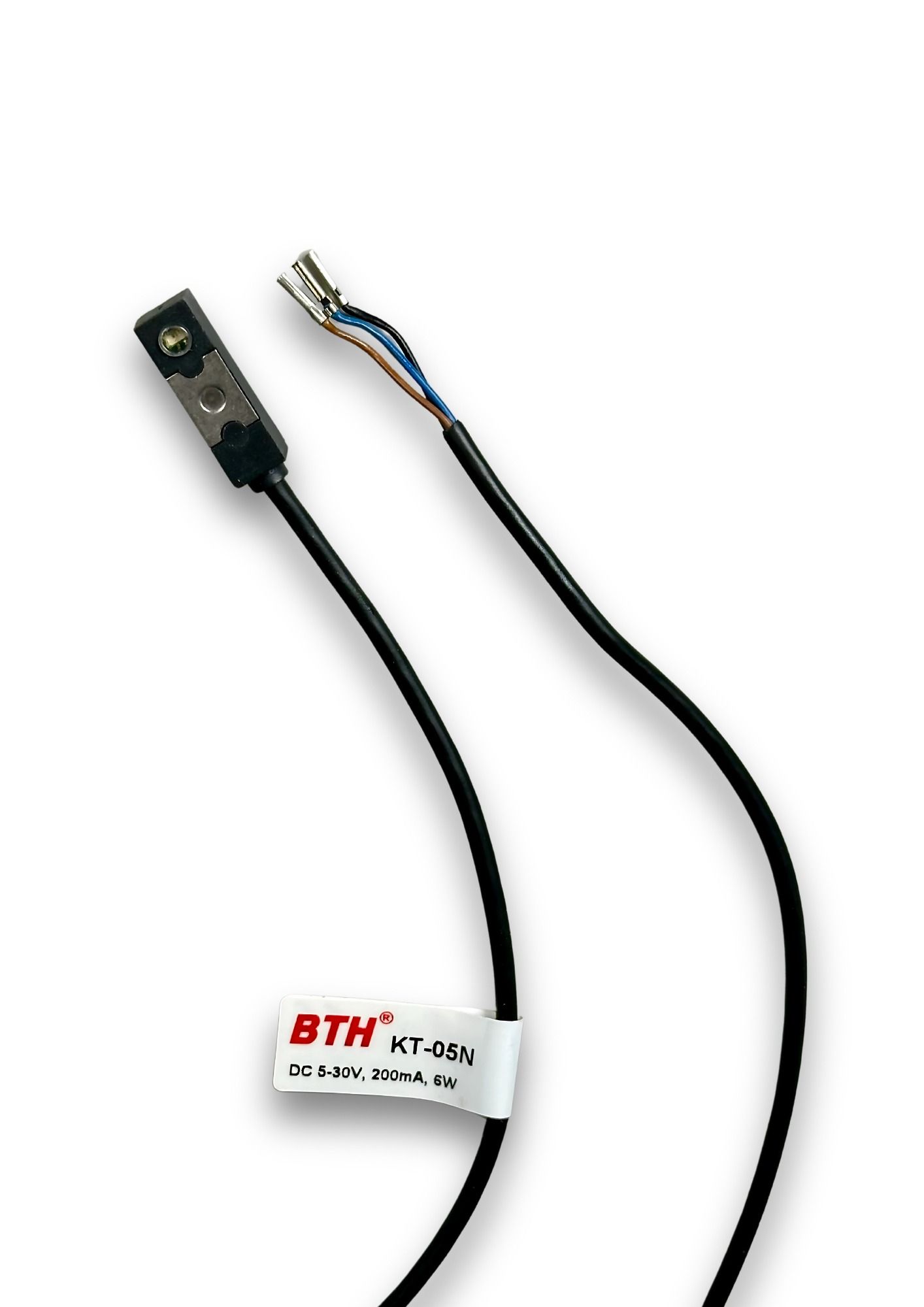

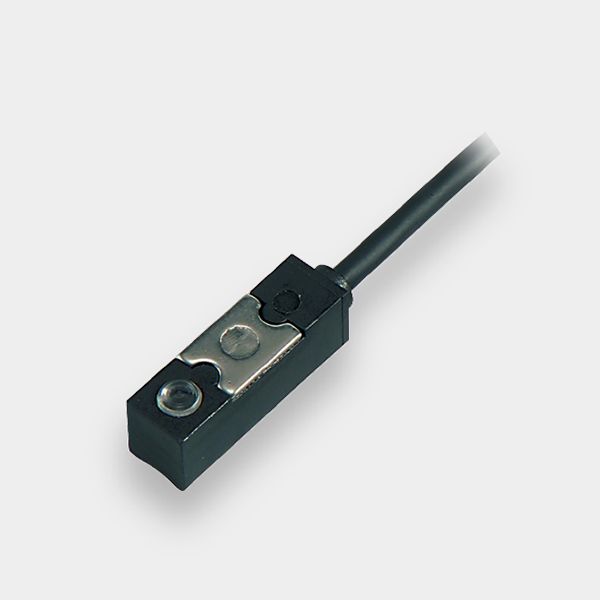

KT-05NE-1M||3 Wire, NPN Current Sinking Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~30V DC
KT-05NE-1M||3 Wire, NPN Current Sinking Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~30V DC KT-05NE-1M||3 Wire, NPN Current Sinking Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~30V DC KT-05NE-1M||3 Wire, NPN Current Sinking Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~30V DC

KT-05NE-1M||3 Wire, NPN Current Sinking Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~30V DC

In stock
SKU
KT-05NE-1M
Special Price ₹900.25 Regular Price ₹1,385.00
(18% GST Extra)
Add to Wish List
  • 3 Wire type
  • NPN Current Sinking
  • Solid State Output, Normally Open
  • 5~30V DC Operating Voltage
  • IP67
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Wiring Method: 3-Wire type
  • Switching Logic: Solid State Output, Normally Open
  • Sensor Type: NPN Current Sinking
  • Operating Voltage: 5~30V DC
  • Switching Current: 200 mA max.
  • Contact Rating: 6 W max.
  • Current Consumption: 8mA @ 24V DC max.
  • Voltage Drop: 1 V @ 200 mA max.
  • Leakage Current: 0.01mA max.
  • Indicator: Red LED
  • Cable: Ø2.8, 3C, PVC
  • Operating Frequency: 1000 Hz max.
  • Magnet Requirement: 80 Gauss
  • Temperature Range: -10~70˚C
  • Shock: 50 G
  • VIbration: 9 G
  • Enclosure Classification: IEC 60529 IP67
  • Protection Circuit: 2,3,4
