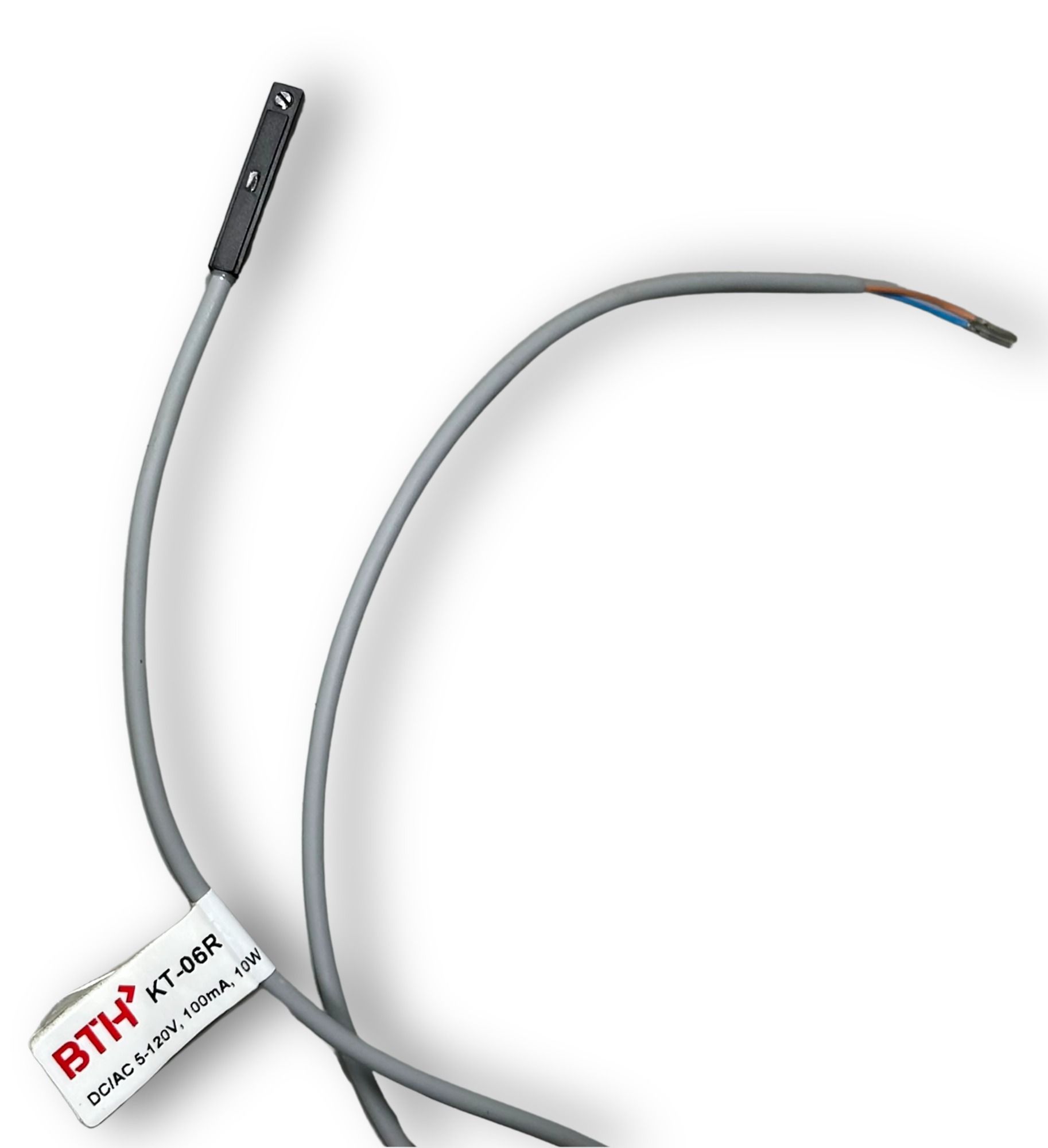

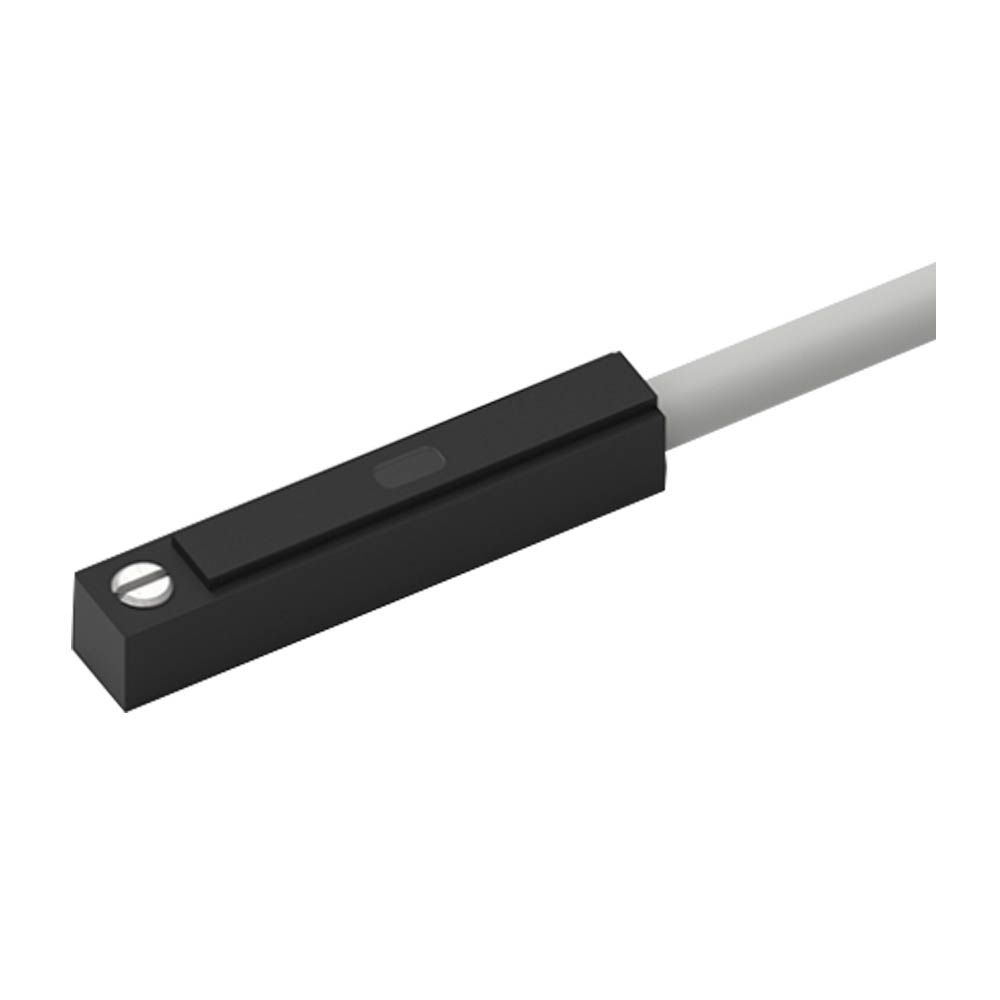

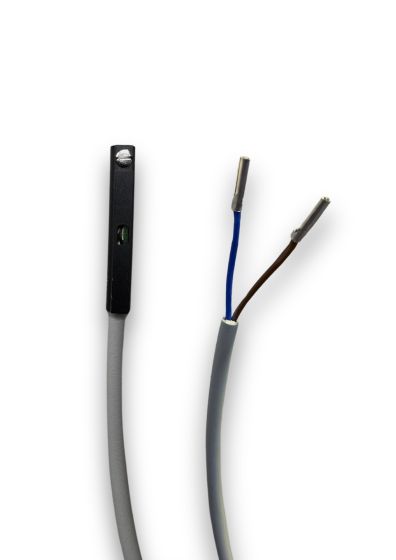

KT-06R-2M||2 Wire, Reed Switch Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~120V DC/AC
In stock
SKU
KT-06R-2M
Special Price
₹663.00
Regular Price
₹1,020.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Wiring Method: 2-Wire Type
- Switching Logic: SPST, Normally Open
- Sensor Type: Reed Switch
- Operating Voltage: 5~120V DC/AC
- Switching Current: 100 mA max.
- Contact Rating: 10 W max.
- Voltage Drop: 3.5V max.
- Indicator: Red LED
- Cable: Ø2.8 PUR-26 AWG (0.15 mm²)-2 cores
- Operating Frequency: 200 Hz
- Magnet Requirement: 70 Gauss
- Temperature Range:-10~70°C
- Shock: 30 G
- Vibration: 9 G
- Enclosure Classification: IEC 60529 IP 67
- Protection Circuit: 1
