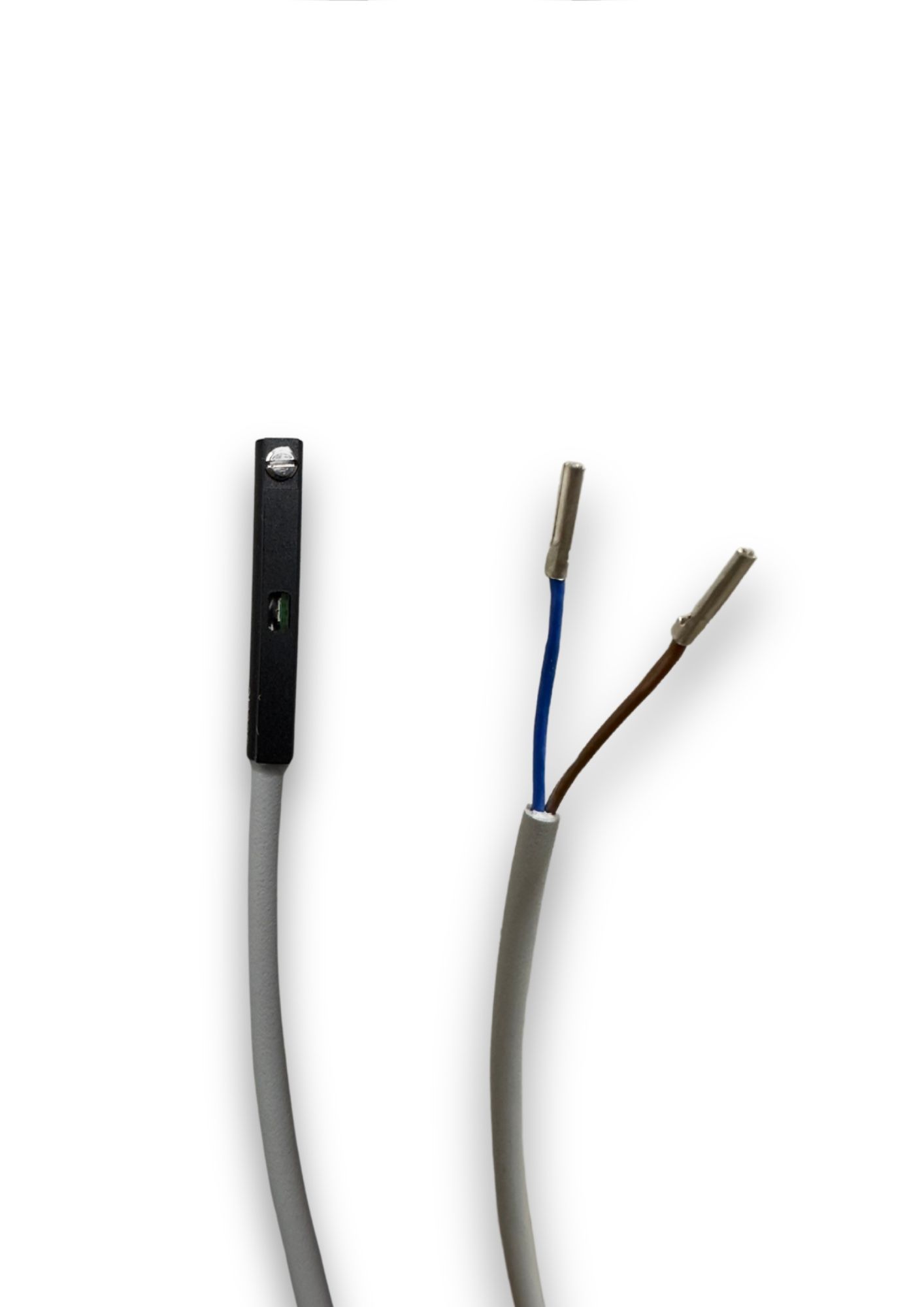

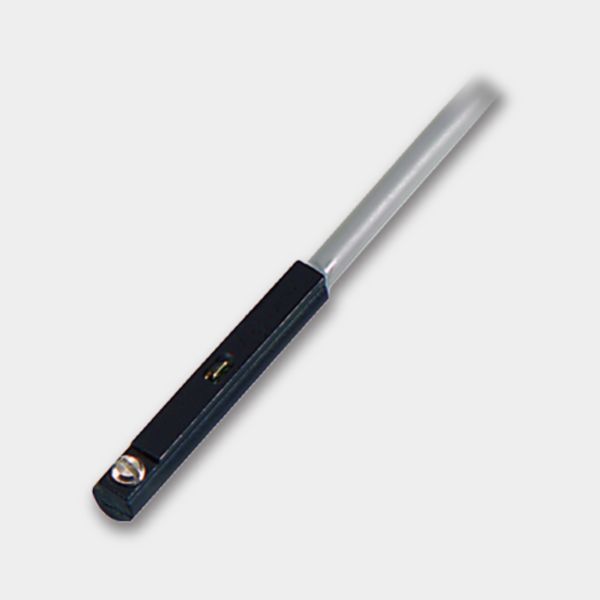

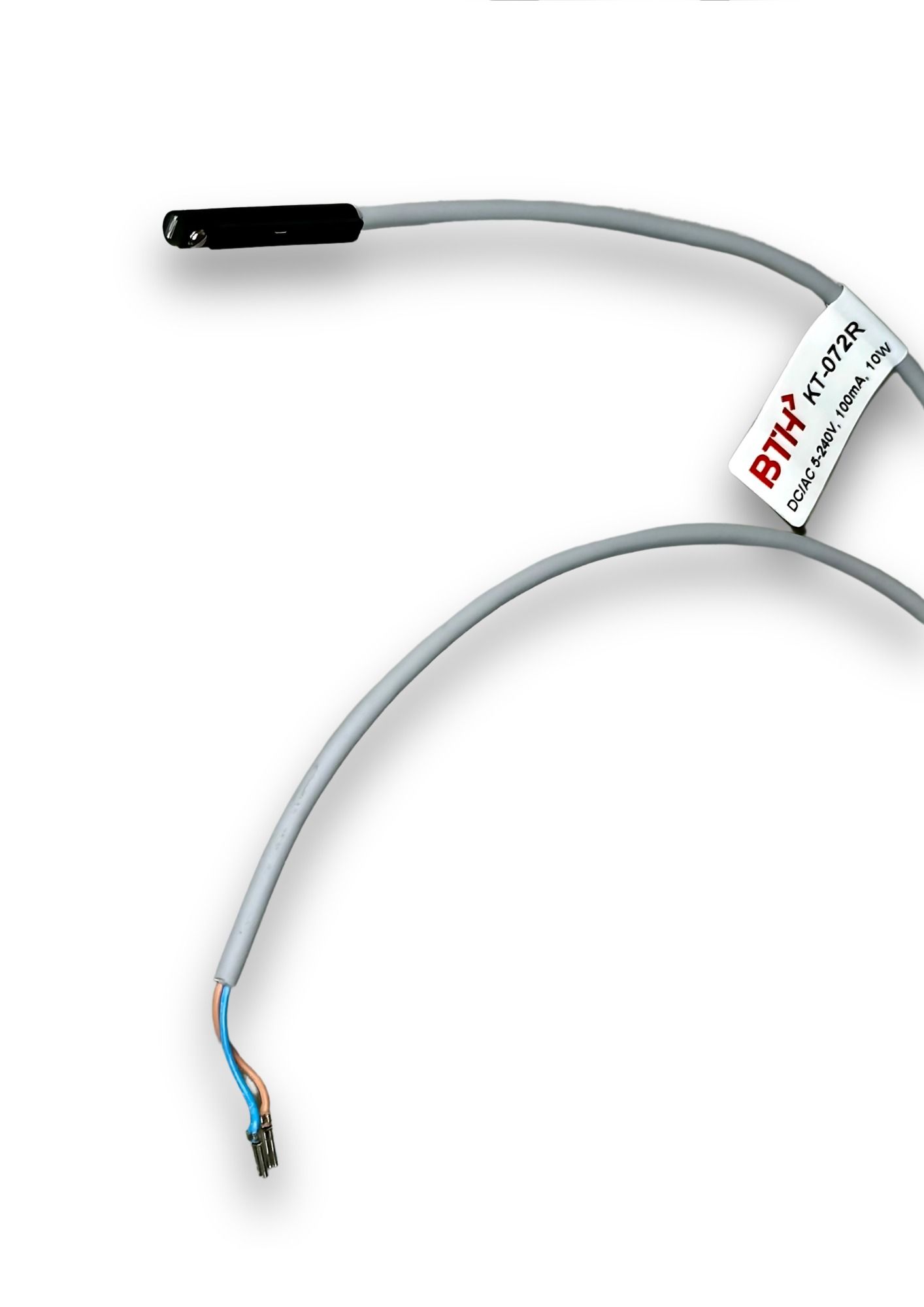

KT-072R-2M||2 Wire, Reed Switch Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~240V DC/AC
In stock
SKU
KT-072R-2M
Special Price
₹689.00
Regular Price
₹1,060.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Wiring Method: 2 Wire Type
- Switching Logic: SPST, Normally Open
- Sensor Type: Reed Switch
- Operating Voltage: 5 ~ 240 V DC / AC
- Switching Current: 100 mA max.
- Contact Rating: 10 W max.
- Voltage Drop: 3.5 V max.
- Indicator: Green LED
- Cable: Ø2.8, 2C, PUR
- Operating Frequency: 200 Hz
- Magnet Requirement: 70 Gauss
- Temperature Range: -10 ~ 70 ˚C
- Shock: 30 G
- Vibration: 9 G
- Enclosure Classification: IEC 60529 IP67
- Protection Circuit: 1
No specifications available for this product.
