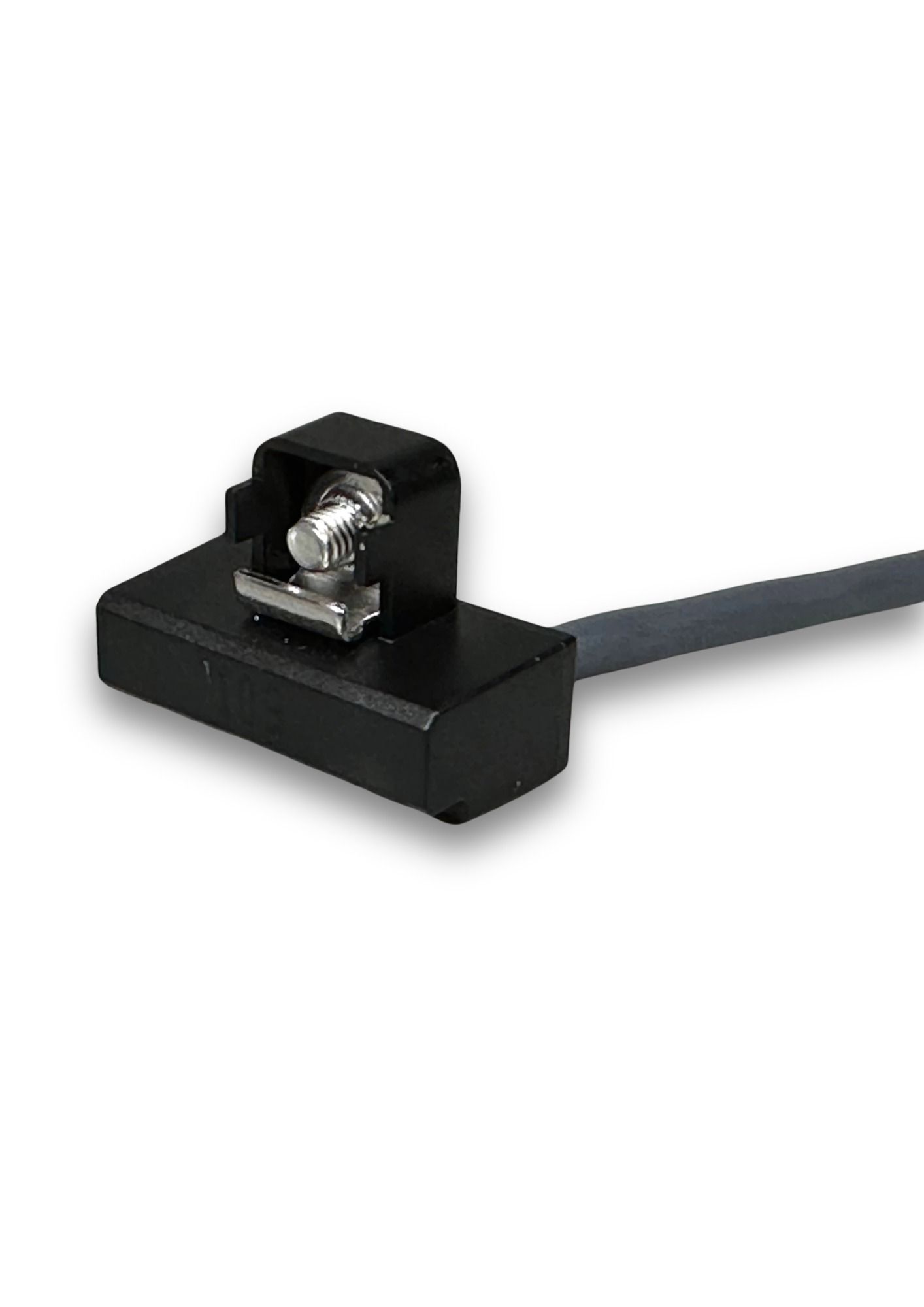

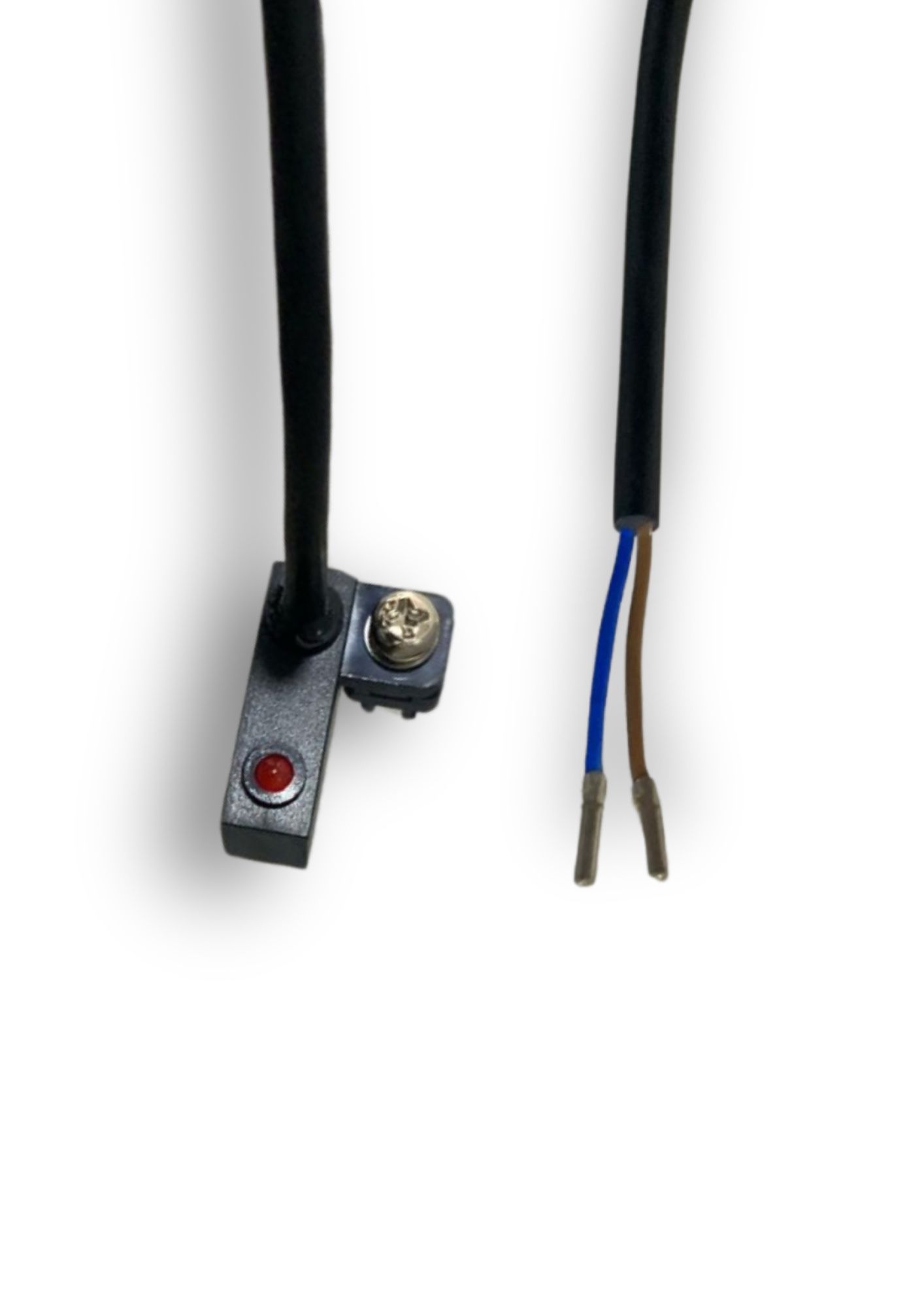

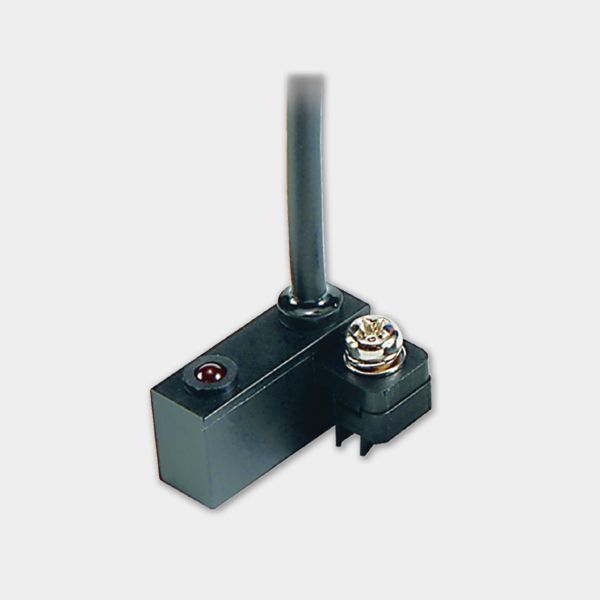

KT-11R-2M||2 Wire, Reed Switch Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~240V DC/AC
In stock
SKU
KT-11R-2M
Special Price
₹663.00
Regular Price
₹1,020.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Wiring method: 2 Wire
- Switching logic: SPST, Normally Open
- Sensor type: Reed Switch
- Operating Voltage: 5~240V DC /AC
- Switching current: 100 mA max.
- Contact rating: 10W max.
- Voltage drop: 3.5V max.
- Indicator: Red LED
- Cable: ⌀3.3, 2C, PVC
- Operating frequency: 200 Hz
- Magnet requirement: 70 Gauss
- Temperature range: –10~70ºC
- Shock: 30 G
- Vibration: 9 G
- Enclosure classification: IEC 60529 IP67
- Protection circuit: 1
No specifications available for this product.
