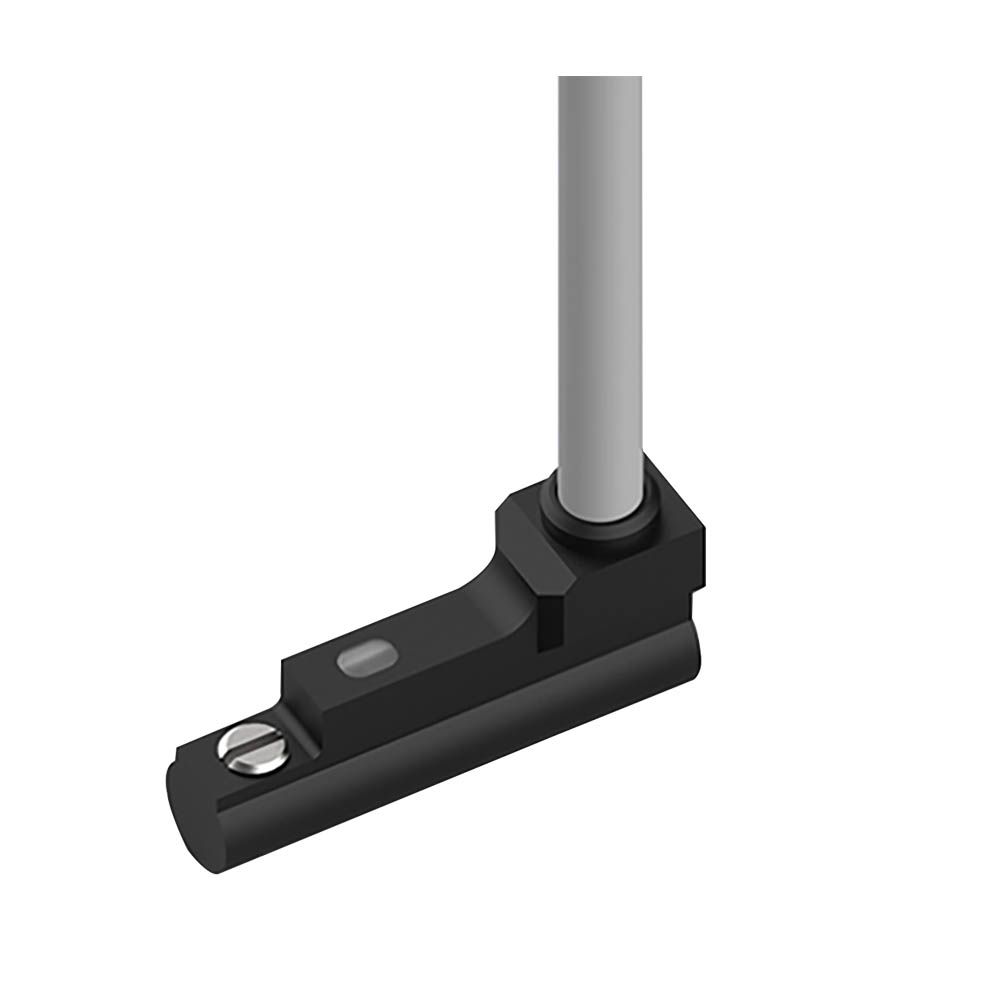

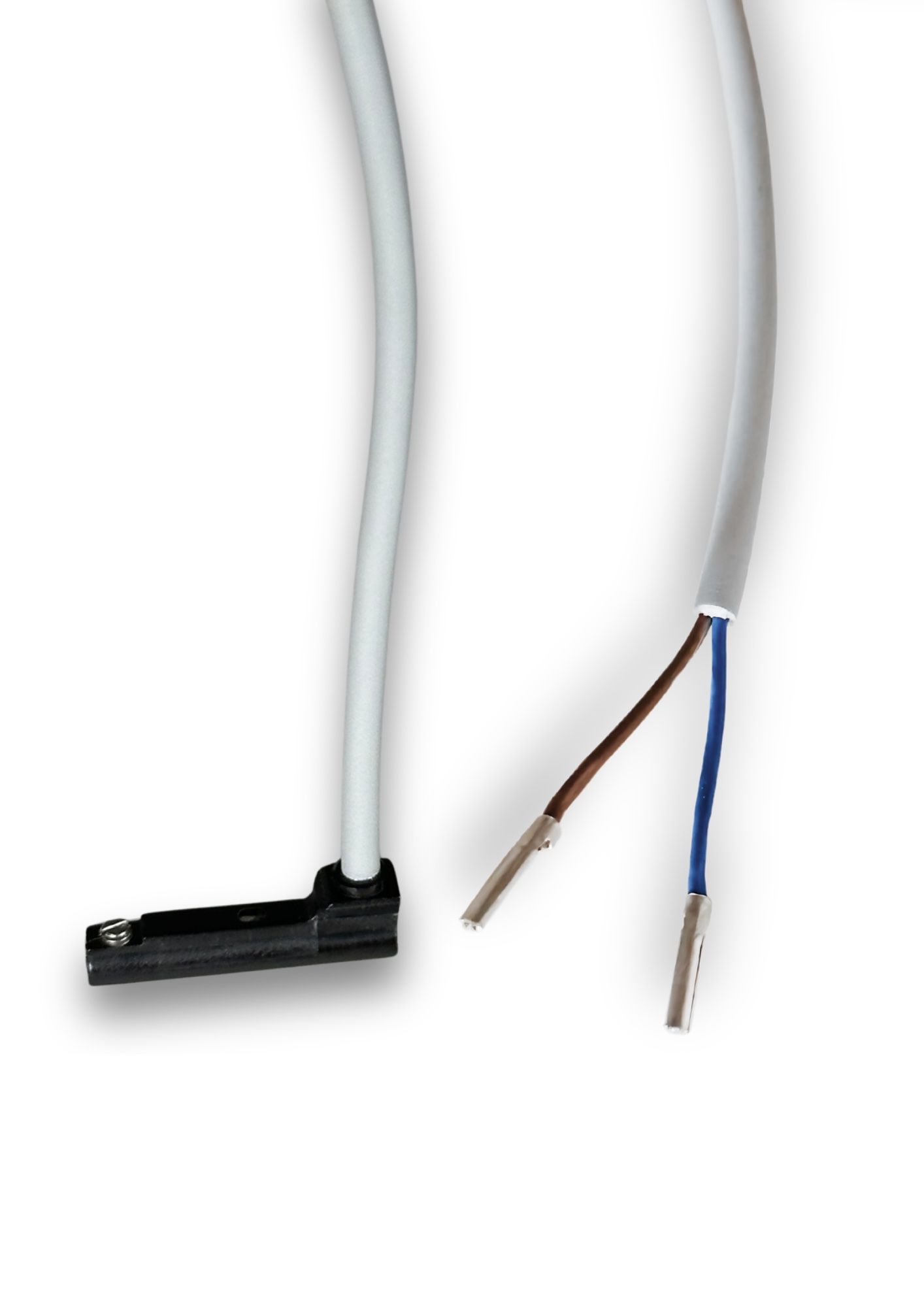

KT-16R-1M||2 Wire, Reed Switch Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~120V DC/AC
KT-16R-1M||2 Wire, Reed Switch Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~120V DC/AC KT-16R-1M||2 Wire, Reed Switch Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~120V DC/AC KT-16R-1M||2 Wire, Reed Switch Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~120V DC/AC

KT-16R-1M||2 Wire, Reed Switch Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~120V DC/AC

In stock
SKU
KT-16R-1M
Special Price ₹663.00 Regular Price ₹1,020.00
(18% GST Extra)
Add to Wish List
  • 2 Wire
  • Reed Switch
  • Solid State Output, Normally Open
  • 5~120V DC/AC Operating Voltage
  • IP67
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Wiring method: 2 Wire
  • Switching logic: SPST, Normally Open
  • Sensor type: Reed Switch
  • Operating Voltage: 5~120V DC /AC
  • Switching current: 100 ma max.
  • Contact rating: 6W max.
  • Voltage drop: 3.5V max.
  • Indicator: Red LED
  • Cable: ⌀2.8 PUR-26 AWG (0.15mm²)-2 cores
  • Operating frequency: 200 Hz
  • Magnet requirement: 70 Gauss
  • Temperature range: –10~70ºC
  • Shock: 30 G
  • Vibration: 9 G
  • Enclosure classification: IEC 60529 IP67
  • Protection circuit: 1
