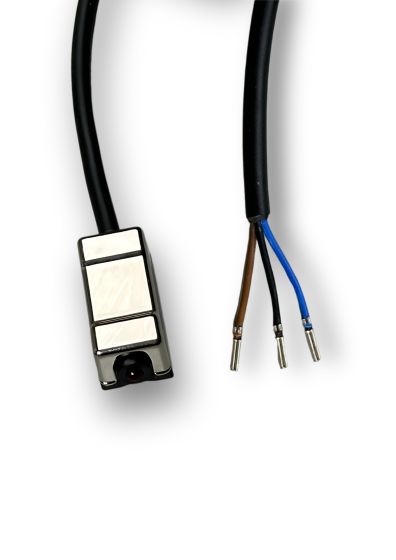

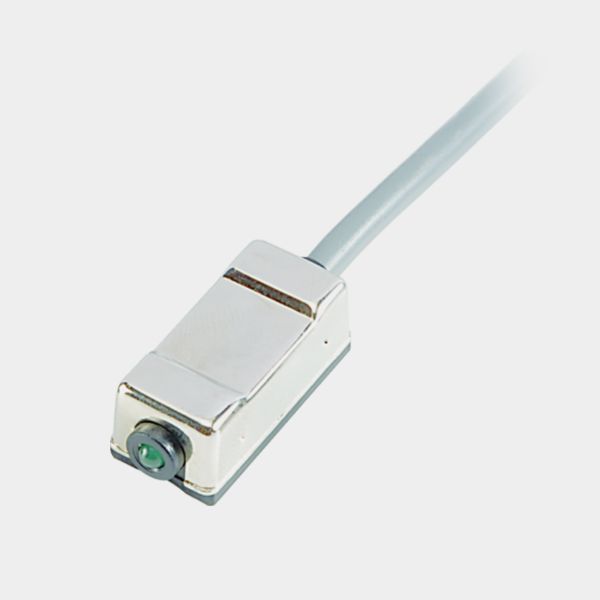

KT-20NE-1M||3 Wire, NPN Current Sinking Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~30V DC
In stock
SKU
KT-20NE-1M
Special Price
₹845.00
Regular Price
₹1,300.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Wiring Method: 3-Wire type
- Switching Logic: Solid State Output, Normally Open
- Sensor Type: NPN Current Sinking
- Operating Voltage: 5 ~ 30 V DC
- Switching Current: 200 mA max.
- Contact Rating: 6 W max.
- Current Consumption: 6 mA @ 24 V DC max.
- Voltage Drop: 0.5 V max.
- Leakage Current: 0.01 mA max.
- Indicator: Red LED
- Cable: ø4, 3C, PVC
- Operating Frequency: 1000 Hz max.
- Magnet Requirement: 50 ~ 1000 Gauss
- Temperature Range: -10 ~ 70 ˚C
- Shock: 50 G
- VIbration: 9 G
- Enclosure Classification: IEC 60529 IP67
- Protection Circuit: 2, 3
