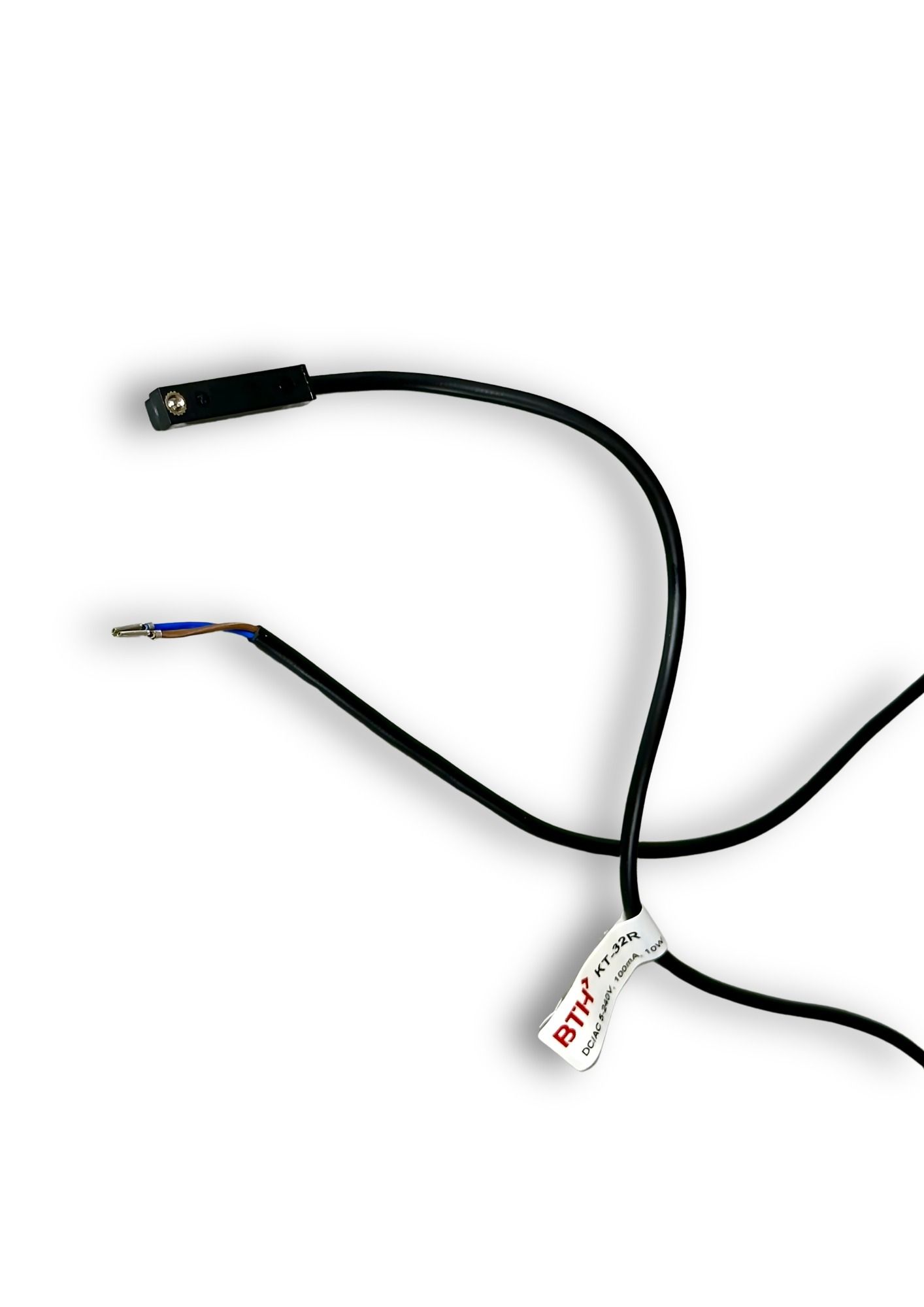

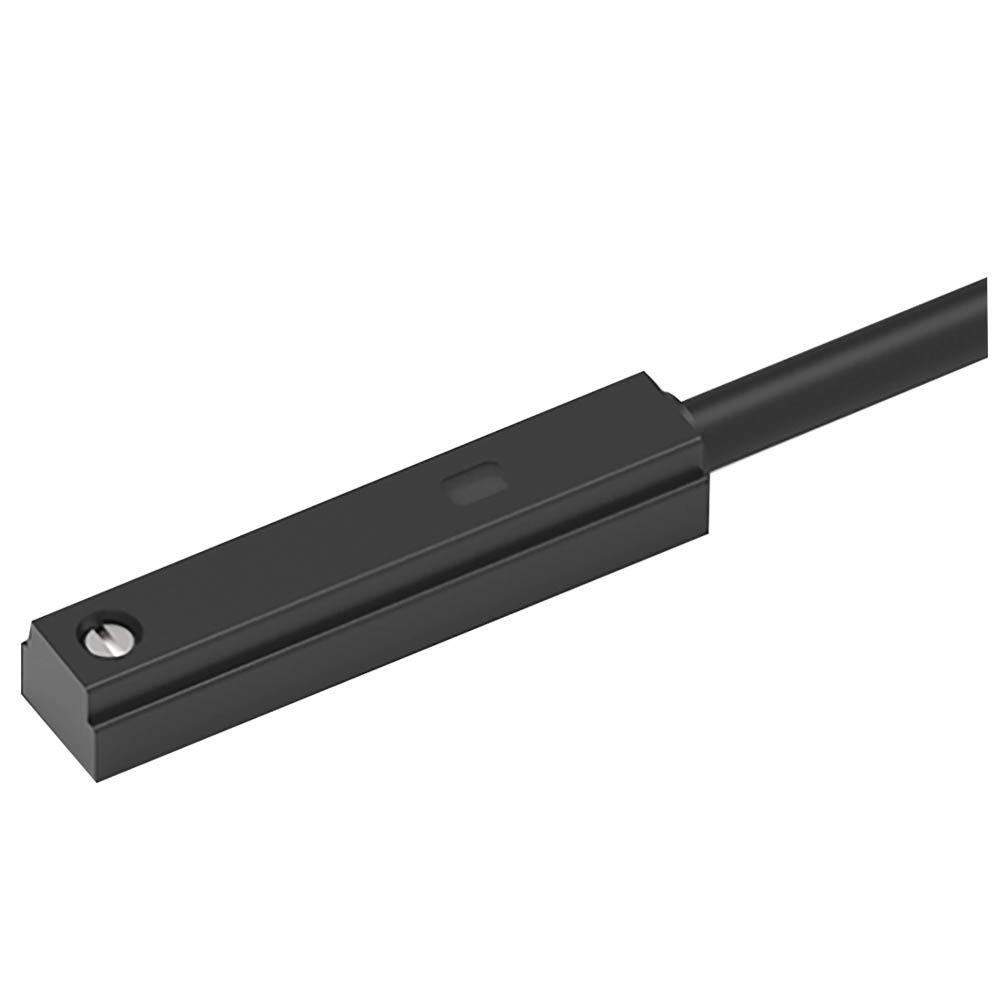

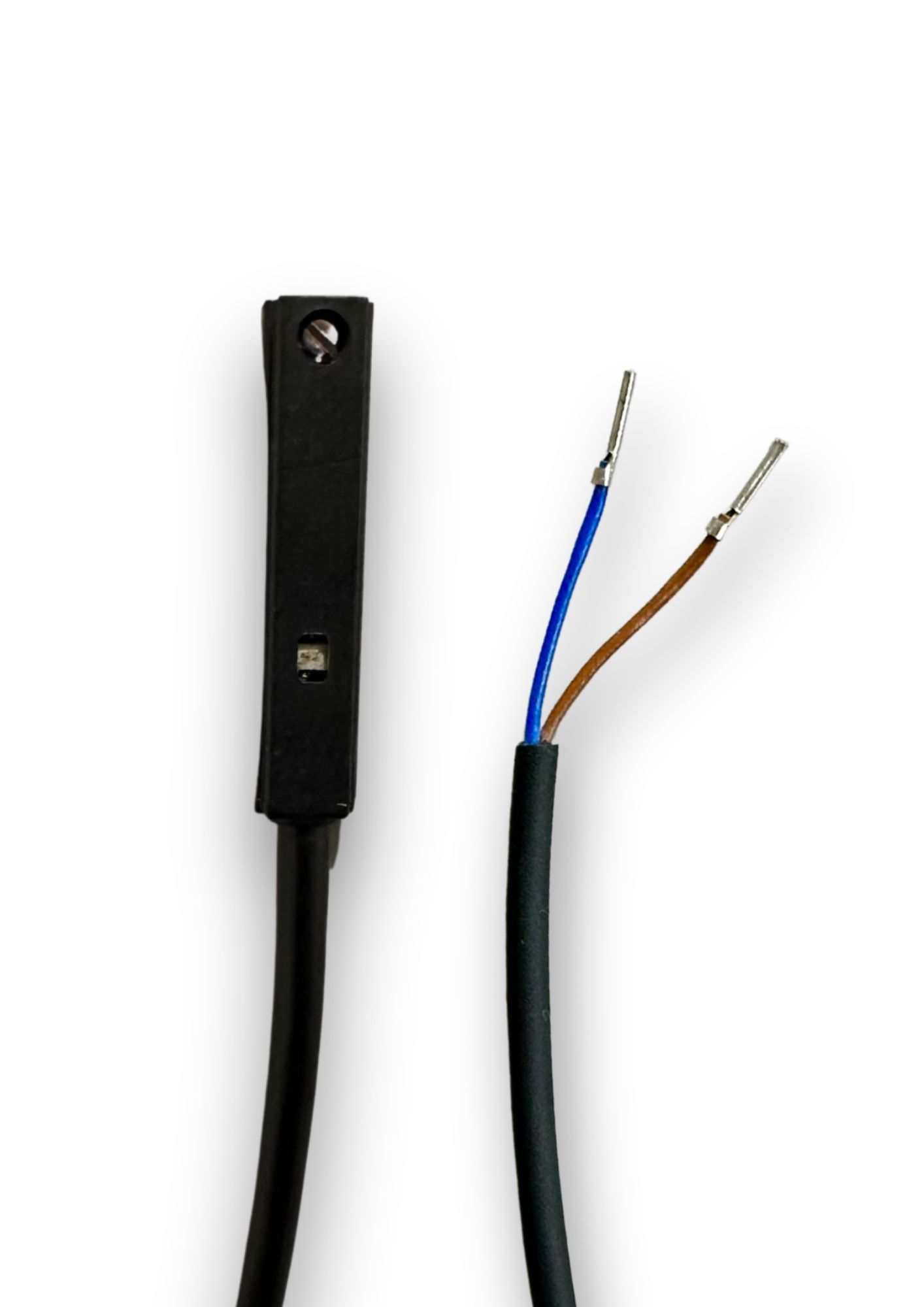

KT-32R-3M||2 Wire, Reed Switch Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~240V DC/AC
KT-32R-3M||2 Wire, Reed Switch Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~240V DC/AC KT-32R-3M||2 Wire, Reed Switch Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~240V DC/AC KT-32R-3M||2 Wire, Reed Switch Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~240V DC/AC

KT-32R-3M||2 Wire, Reed Switch Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~240V DC/AC

In stock
SKU
KT-32R-3M
Special Price ₹734.50 Regular Price ₹1,130.00
(18% GST Extra)
Add to Wish List
  • 2 Wire
  • Reed switch
  • SPST, Normally Open
  • 5~240V AC/DC
  • IP 67
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Switching Logic: SPST, Normally Open
  • Sensor type: Reed switch
  • Operating Voltage: 5 ~ 240V DC/AC
  • Switching Current: 100mA max.
  • Contact Rating: 10W max.
  • Voltage Drop: 3.5V max.
  • Indicator: Red LED
  • Cable: Ø3.3 PVC - 24 AWG ( 0.22 mm² )
  • Operating Frequency: 200Hz
  • Magnet Requirement: 70 Gauss

No specifications available for this product.
