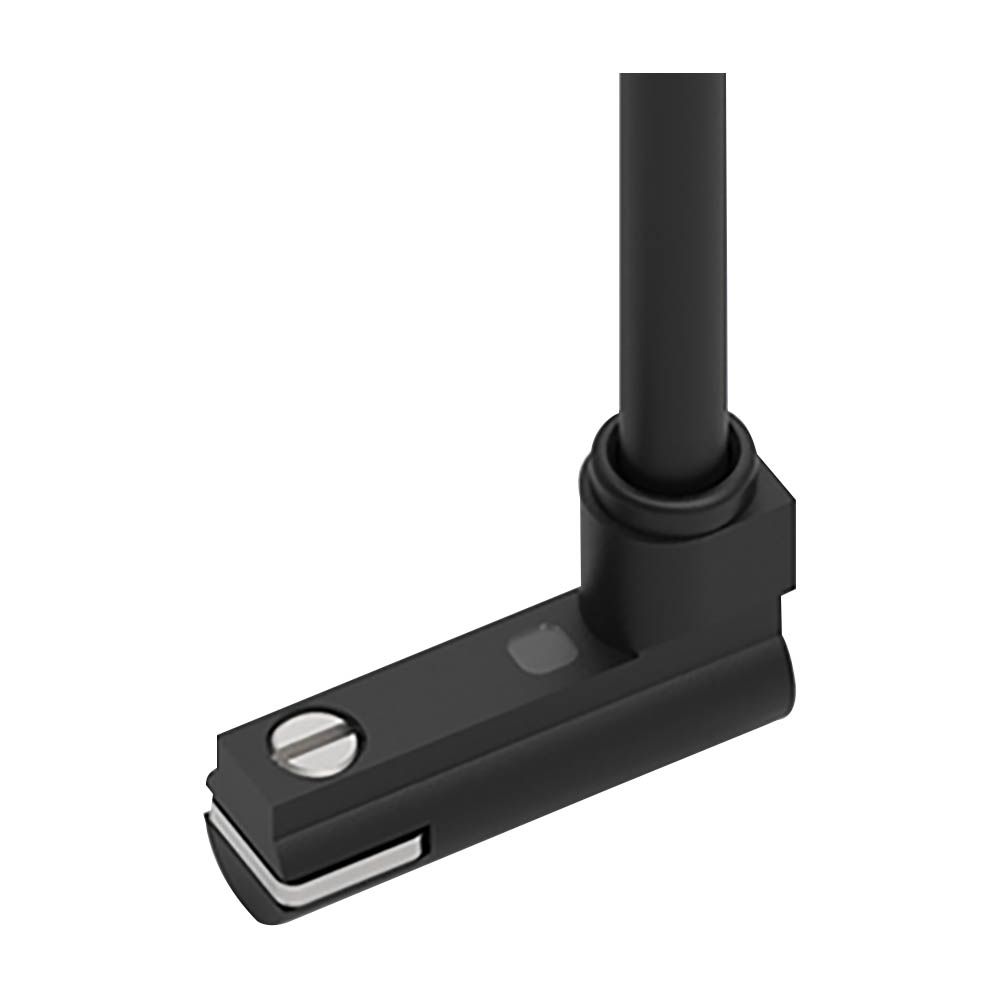

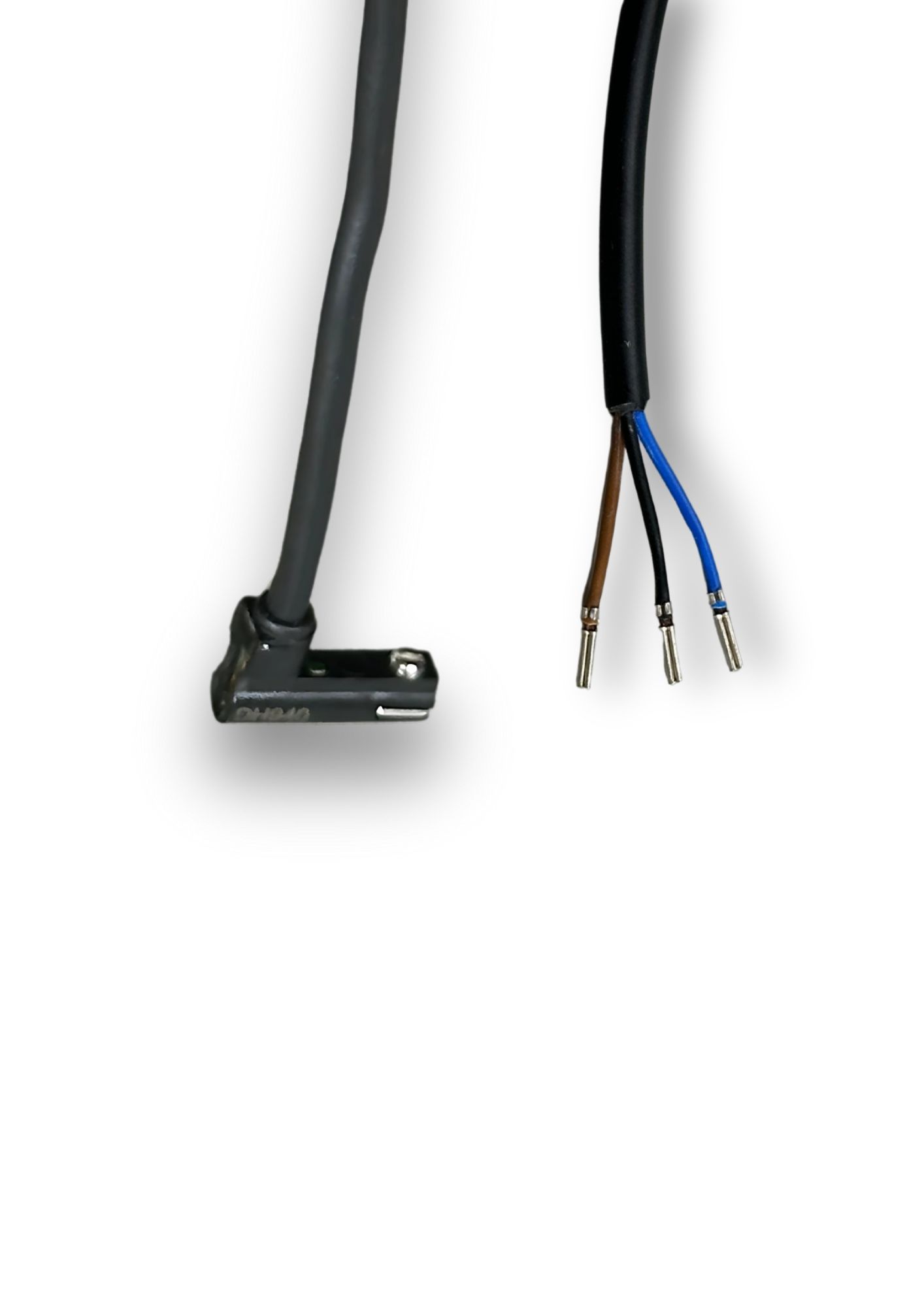

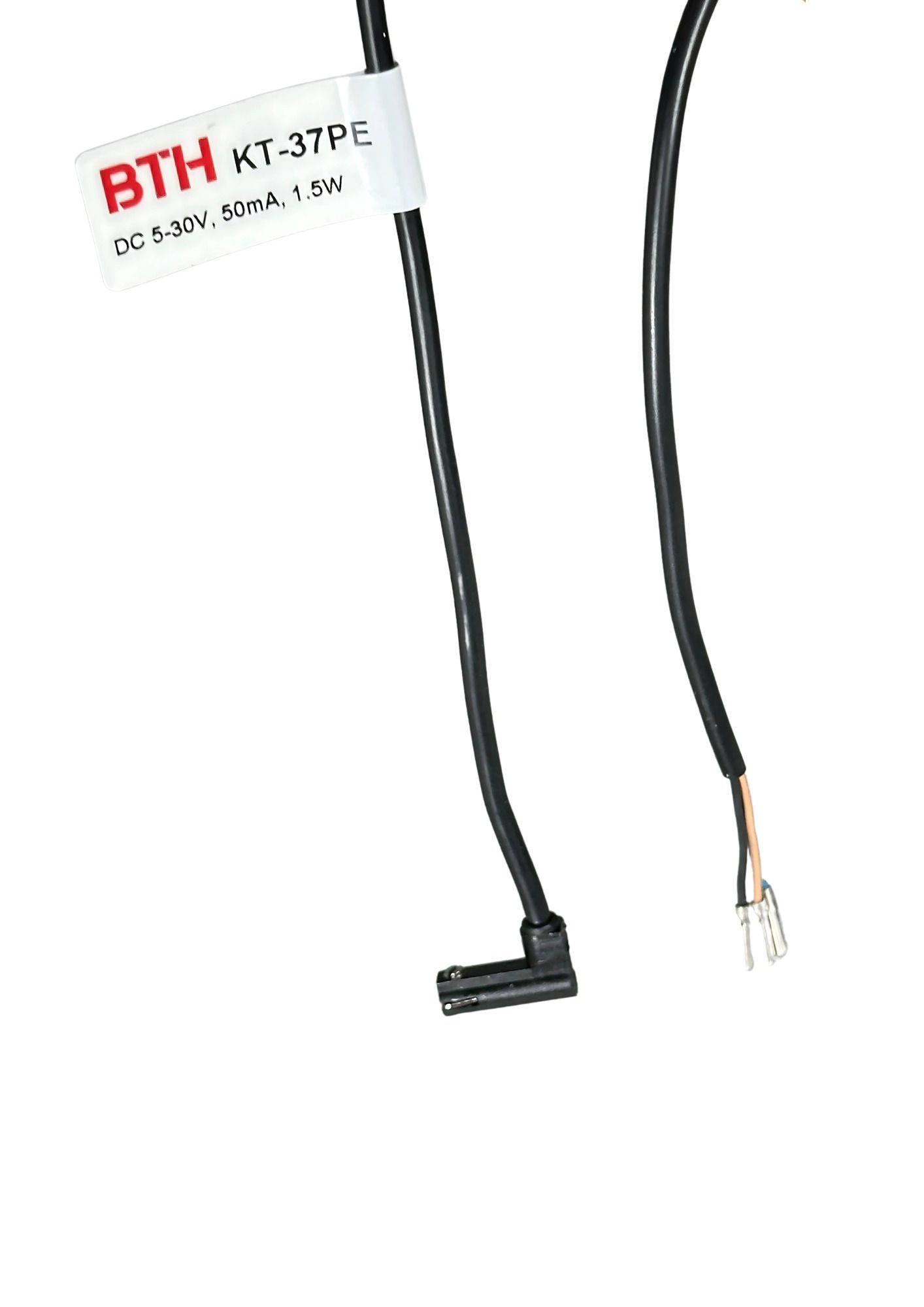

KT-37PE-1M||3 Wire, PNP Current Sourcing Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 4.5~28V DC
In stock
SKU
KT-37PE-1M
Special Price
₹884.00
Regular Price
₹1,360.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Wiring method: 3 Wire
- Switching Logic: Solid State Output, Normally Open
- Sensor type: PNP Current Sourcing
- Operating Voltage: 4.5~28V DC
- Switching Current: 50mA max.
- Switching Current: 1.5W max.
- Current Consumption: 10mA@24V DC max.
- Voltage Drop: 0.5V@50mA max
- Leakage Current: 0.01 mA max.
- Indicator: Red LED
- Cable: Ø2.6, 3C,PVC
- Operating Frequency: 1000Hz max.
- Magnet Requirement: 40 ~ 1000 Gauss
- Temperature range: -10~70°C
- Shock: 50 G
- Vibration: 9 G
- Enclosure classification: IEC 60529 IP67
- Protection circuit: 3,4
No specifications available for this product.
