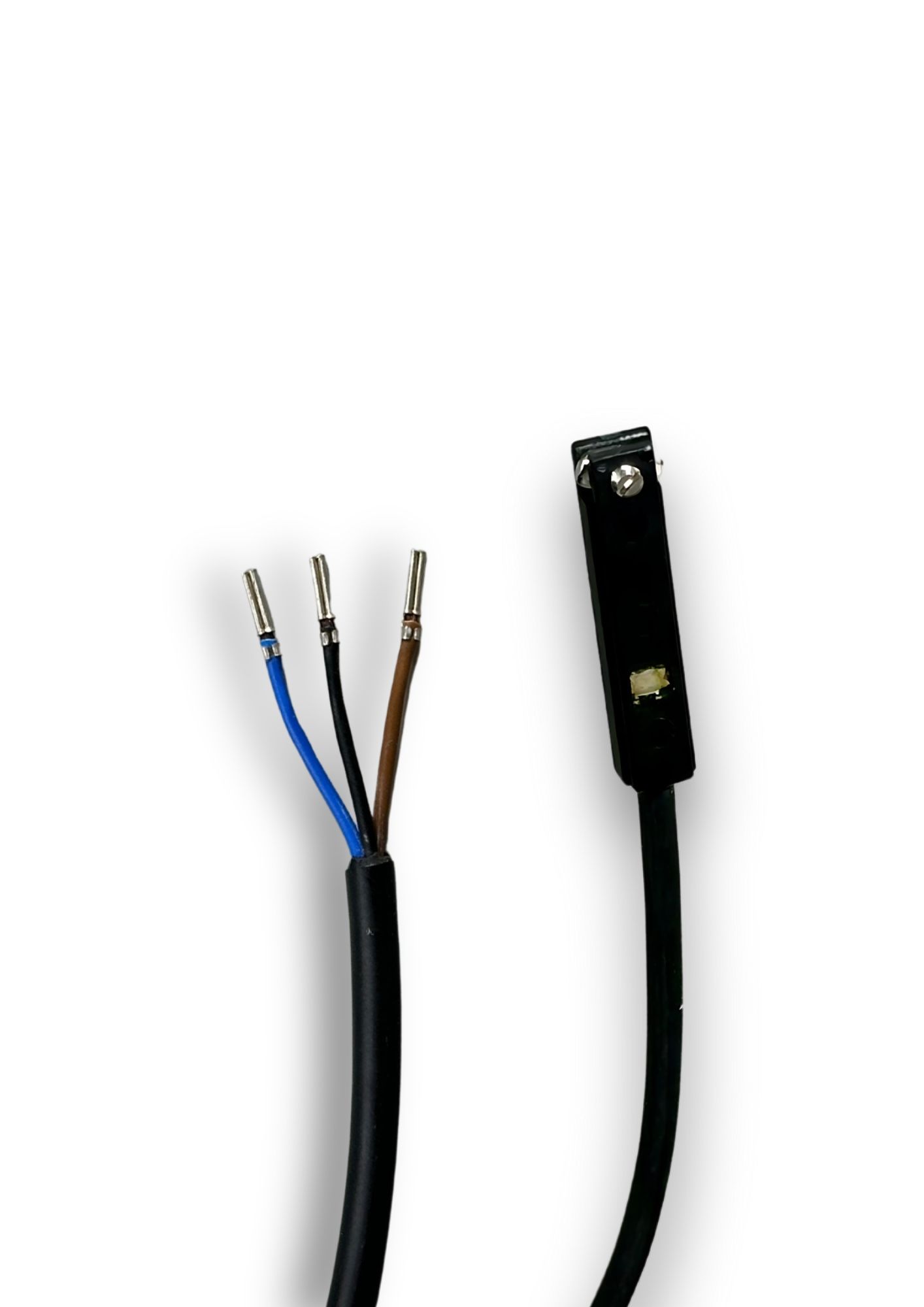

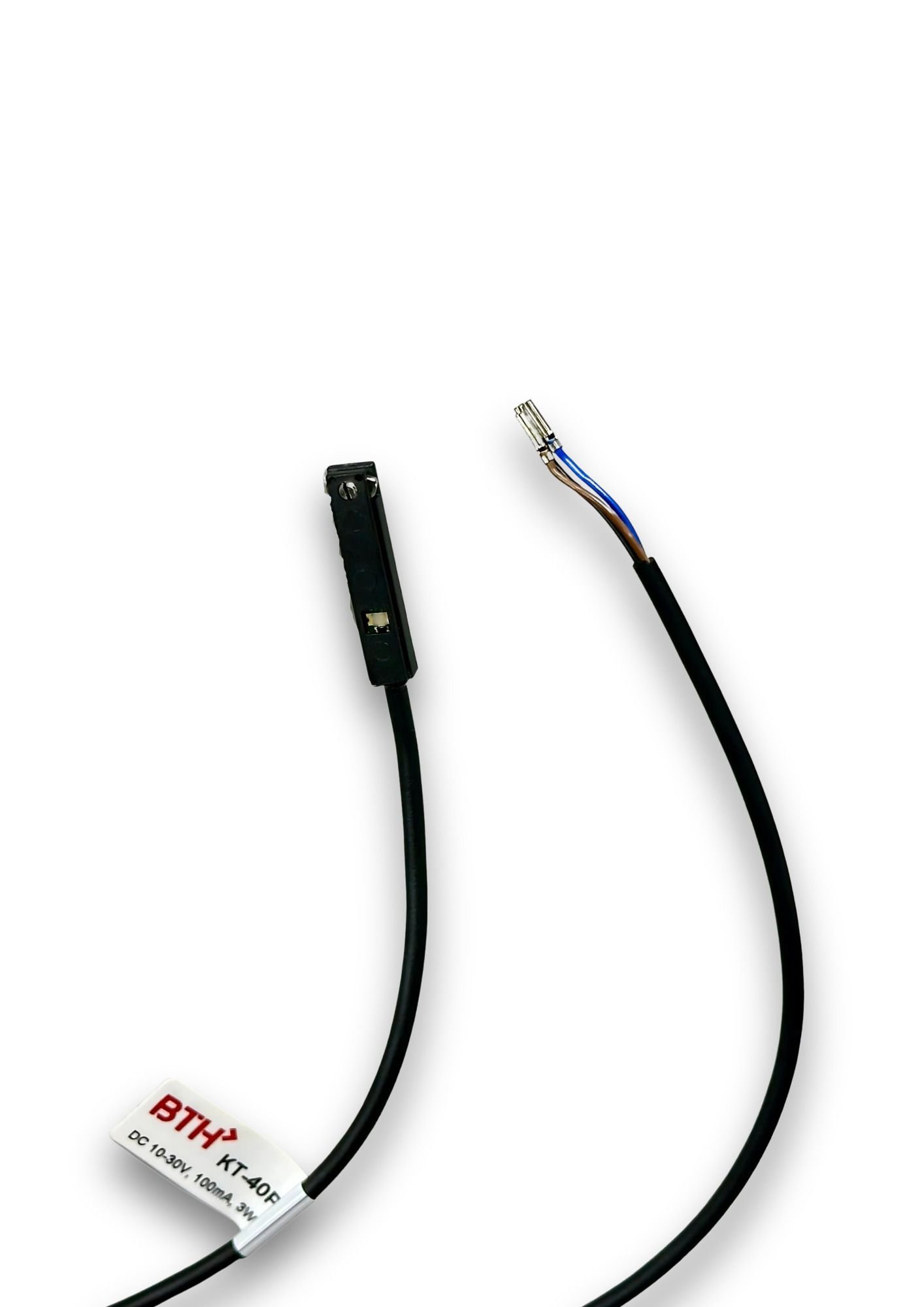

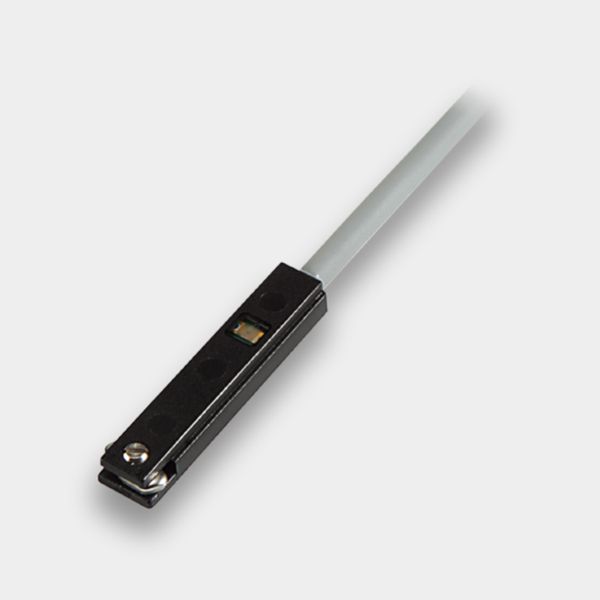

KT-40P-1M||3 Wire, PNP Current Sourcing Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 10~30V DC
In stock
SKU
KT-40P-1M
Special Price
₹1,079.00
Regular Price
₹1,660.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Wiring Method: 3 Wire
- Switching Logic: Solid State Output, Normally Open
- Sensor Type: PNP Current Sourcing
- Operating Voltage: 10 ~ 30 V DC
- Switching Current: 100 mA max.
- Contact Rating: 3 W max.
- Current Consumption: 8 mA @ 24 V DC max.
- Voltage Drop: 1.5 V max.
- Leakage Current: 0.01 mA max.
- Indicator: Yellow LED
- Cable: ø3, 3C, PUR
- Operating Frequency: 1000 Hz
- Magnet Requirement: 45 Gauss
- Temperature Range: -10 ~ 70 ˚C
- Shock: 50 G
- VIbration: 9 G
- Enclosure Classification: IEC 60529 IP67
- Protection Circuit: 2,3,4
