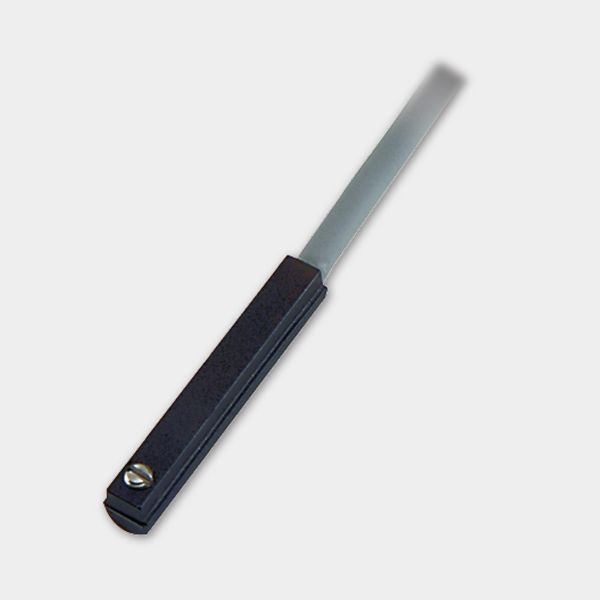

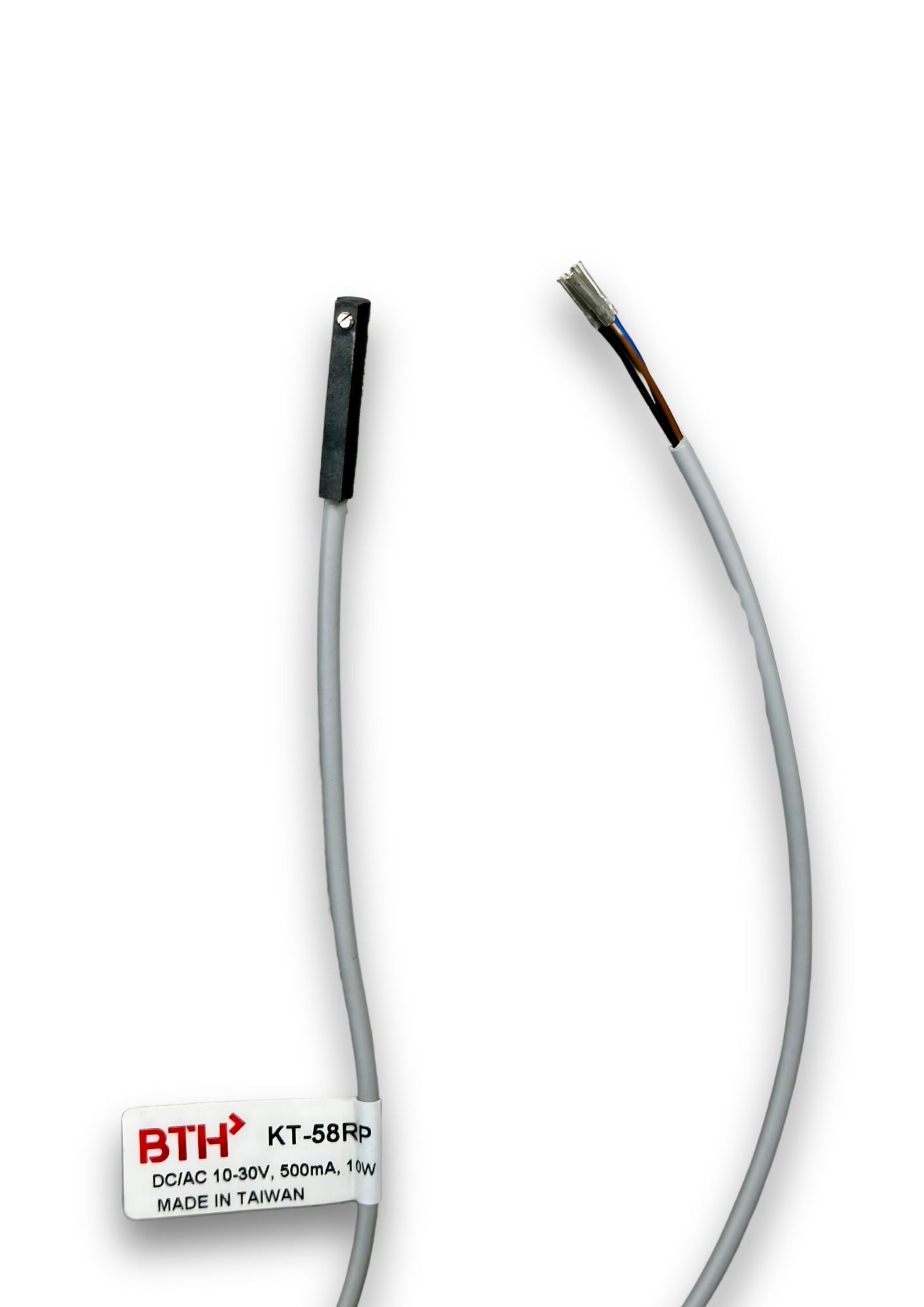

KT-58RP-1M||3 Wire, Reed Switch Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 10~30V DC/AC
In stock
SKU
KT-58RP-1M
Special Price
₹656.50
Regular Price
₹1,010.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment

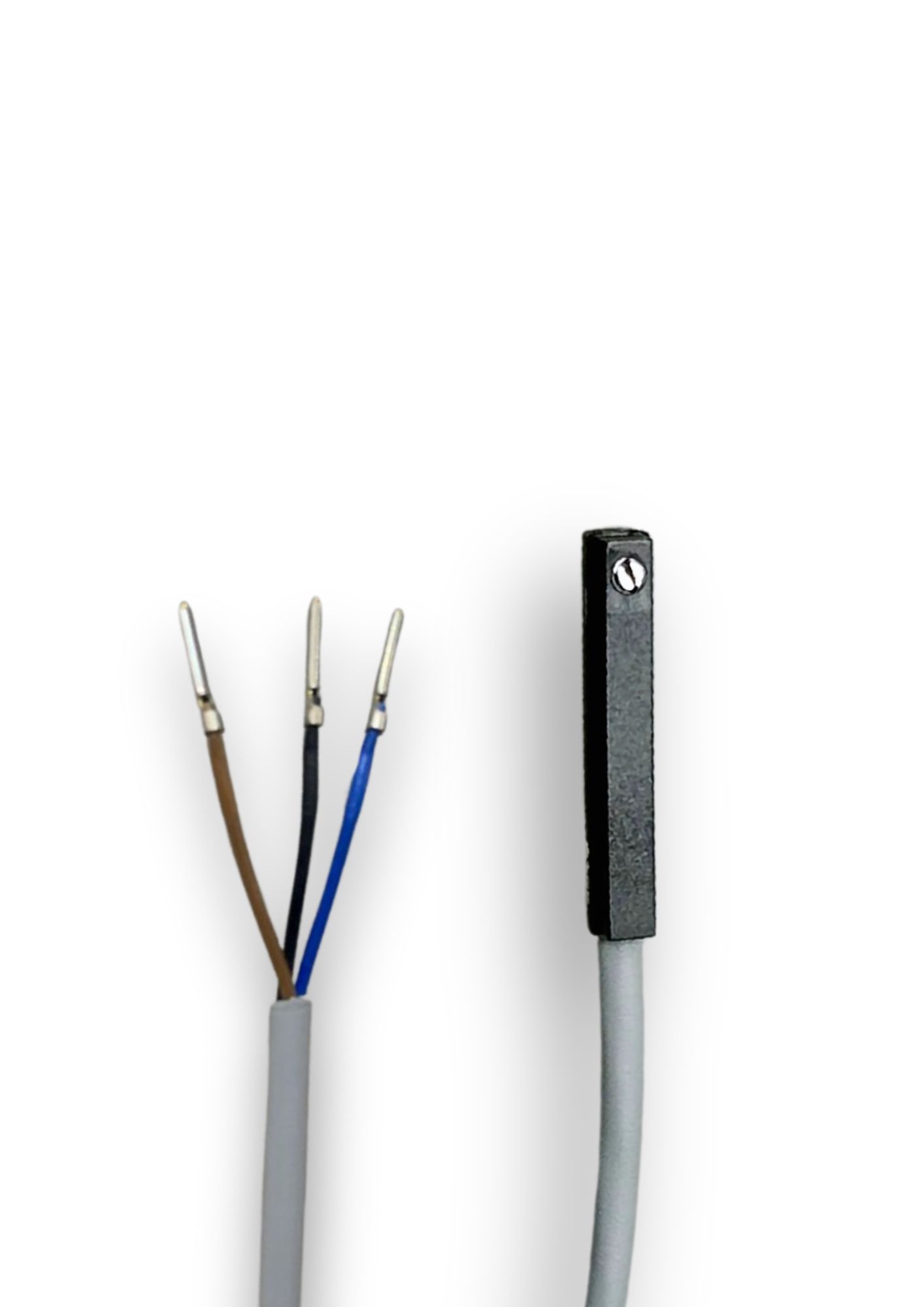

- Wiring Method: 3-Wire Type
- Switching Logic: SPST, Normally Open
- Sensor Type: Reed Switch
- Operating Voltage: 10 ~ 30 V DC / AC
- Switching Current: 500 mA max.
- Contact Rating: 10 W max.
- Current Consumption: 5 mA @ 24 V DC max.
- Voltage Drop: 0.1 V @ 100 mA max.
- Indicator: Yellow LED
- Cable: ø2.5, 3C, PUR
- Operating Frequency: 200 Hz
- Magnet Requirement: 50 Gauss
- Temperature Range: -10 ~ 70 ˚C
- Shock: 30 G
- Vibration: 9 G
- Enclosure Classification: IEC 60529 IP67
- Protection Circuit: 1
No specifications available for this product.
