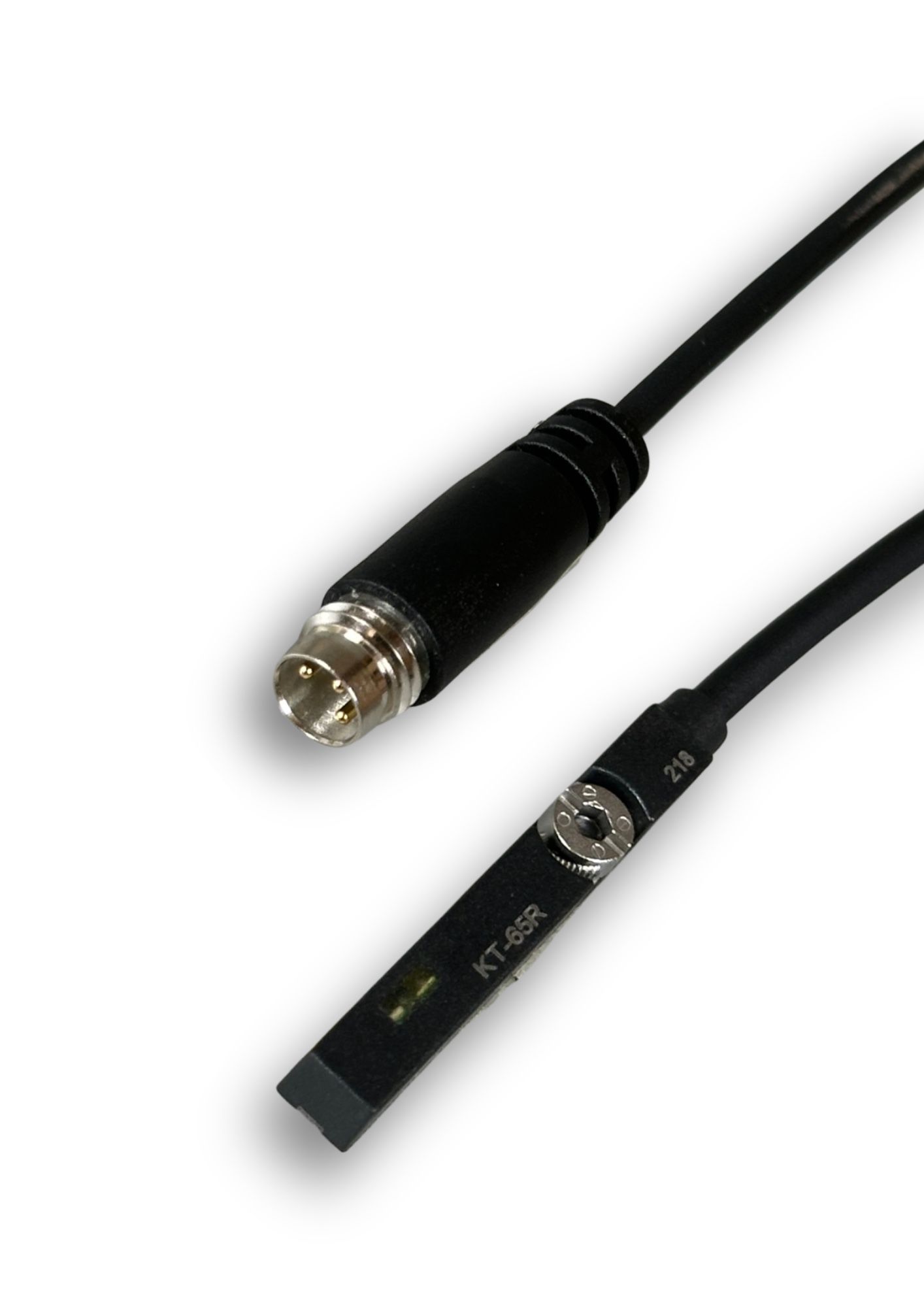

KT-65R-QD ||2 Wire, Reed Switch with male straight cable plug Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~240V DC/AC

KT-65R-QD ||2 Wire, Reed Switch with male straight cable plug Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~240V DC/AC

KT-65R-QD ||2 Wire, Reed Switch with male straight cable plug Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~240V DC/AC

KT-65R-QD ||2 Wire, Reed Switch with male straight cable plug Magnetic Sensors For Hydraulic & Pneumatic Cylinders, 5~240V DC/AC

Be the first to review this product

In stock

SKU

KT-65R-QD

Special Price ₹812.50 Regular Price ₹1,250.00

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Wiring Method: 2 Wire with male straight cable plug
Switching Logic: SPST, Normally Open
Sensor Type: Reed Switch
Operating Voltage: 5 ~ 240 V DC / AC
Switching Current: 100mA max.
Contact Rating *1: 10 W max.
Voltage Drop: 3.0 V max.
Indicator: RED LED
Cable: ø2.8, 2Core
Operating Frequency: 200Hz
Magnet Requirement *2: 75 Gauss
Temperature Range: -10 ~ 70 ˚C
Shock *3: 30 G
Vibration *4: 9 G
Enclosure Classification: IEC 60529 IP67
Protection Circuit *5: 1
