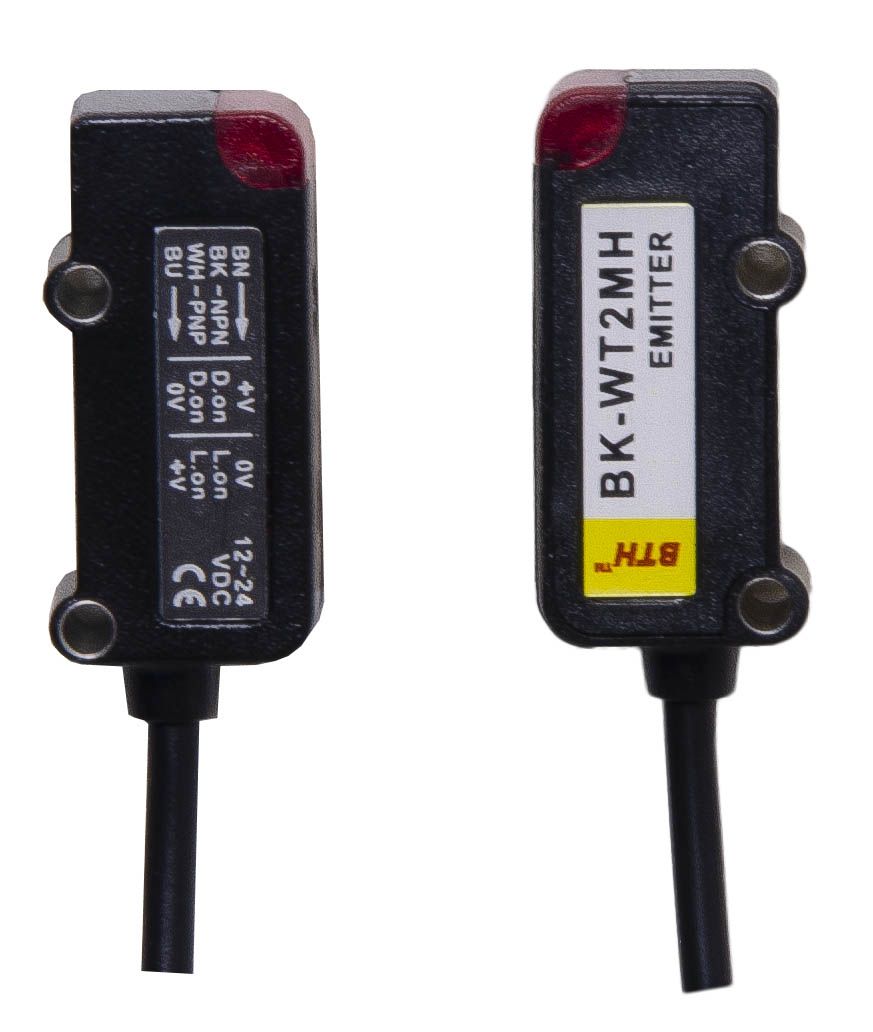

BK-WT2MH||Mini Through Beam Photo Sensor, Sensing Range 2 Meter, PNP/NPN Selectable
BK-WT2MH||Mini Through Beam Photo Sensor, Sensing Range 2 Meter, PNP/NPN Selectable

BK-WT2MH||Mini Through Beam Photo Sensor, Sensing Range 2 Meter, PNP/NPN Selectable

In stock
SKU
BK-WT2MH
Special Price ₹3,168.75 Regular Price ₹4,875.00
(18% GST Extra)
Add to Wish List
  • Compact housing.
  • Easy to detect tiny objects.
  • Can be mounted in a narrow space.
  • Selectable PNP / NPN / Dark-ON / Light-ON
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Sensing Type: Through Beam
  • Sensing Distance: 2mtr.
  • Emitting Light: Infrared LED 940 nm
  • Operating Voltage: DC12 ~24V±10% (Ripple P-P:10% Max.)
  • Indication: Built-in twin LED on top of the receiver for power & output on, one LED on top of emitter for power on
  • Current Consumption: 30 mA Max.
  • Load Current: 100ma Max. at 24VDC
  • Output Type: PNP / NPN / Dark-ON / Light-ON selectable through wire
  • Protection Circuit: Reversed supply circuit protection, short circuit protection output
  • Response Time: 1000 Hz
  • Insulation resistance: 20MΩ min. (DC500V)
  • Voltage With Standability: AC1000V 60Hz for 60 Sec.
  • Operating Temperature: -10°C ~ + 45°C (No freezing allowed)
  • Ambient Humidity: 35% ~ 95% RH
  • Protection degree: IP64
  • Material: ABS
  • Wiring Method: (Receiver) Ø2.4 x 2 M / 4-wires (Emitter) Ø2 .4 x 2 M / 2-wires
  • Weight: Approx. 40g
