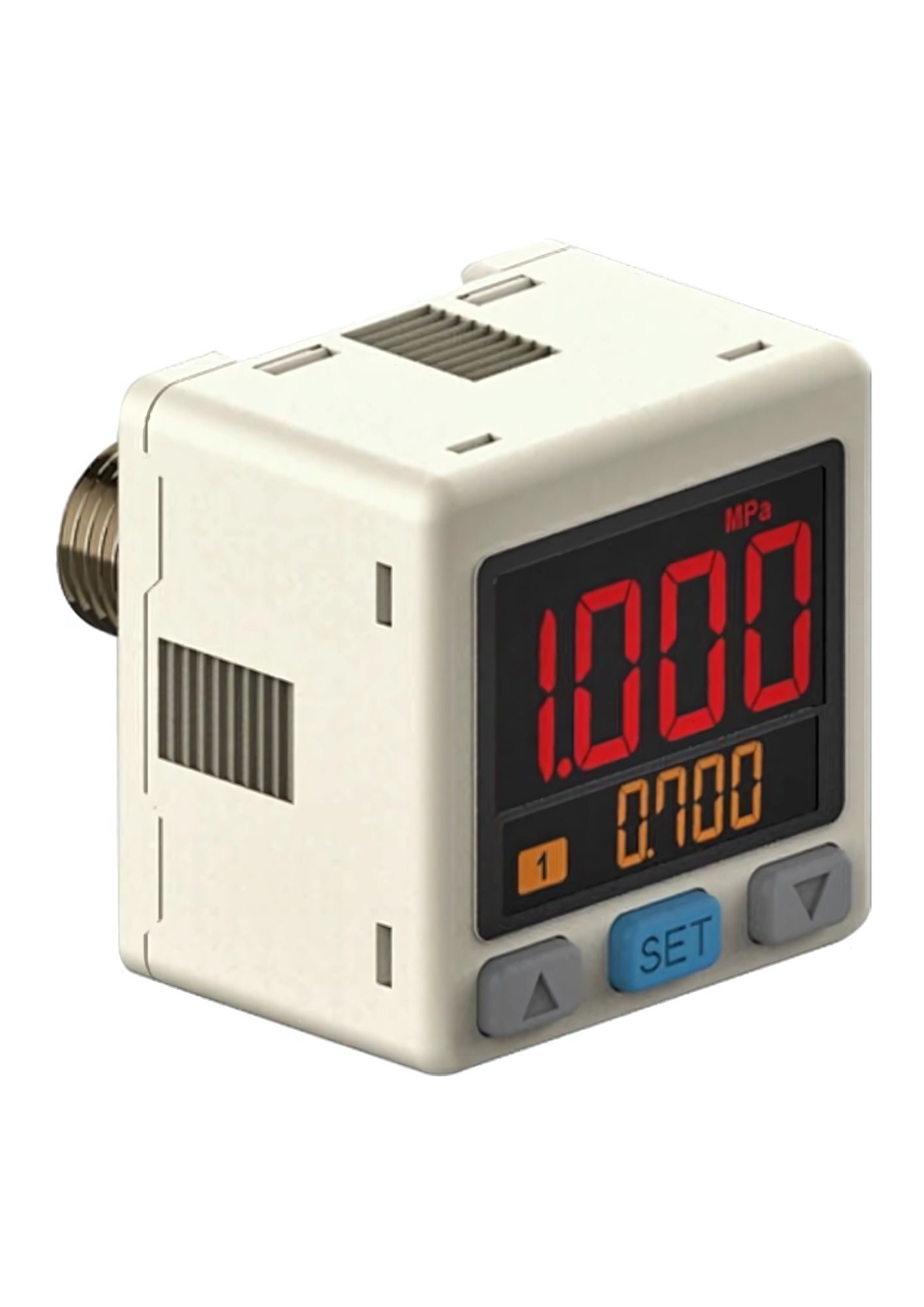

KP47V-02-F1 | 2 NPN Output, Vacuum Pressure
KP47V-02-F1 | 2 NPN Output, Vacuum Pressure

KP47V-02-F1 | 2 NPN Output, Vacuum Pressure

In stock
SKU
KP47V-02-F1
Special Price ₹3,380.00 Regular Price ₹5,200.00
(18% GST Extra)
Add to Wish List
  • 3-color digital LCD display
  • Main / Sub-Display, 4 digits 7 segment LCD display
  • Selectable pressure unit:kPa、MPa、kgf/cm²、bar、psi、inHg、mmHg
  • Dual LCD display allows setting value to be displayed
  • Key lock indicator
  • Power-save mode
  • Fine adjustment mod
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Rated Pressure Range: 0.0 ~ -101.3 kPa
  • Set Pressure Range: 10.0 ~ -103.0 kPa
  • Withstand Pressure: 500 kPa
  • Fluid: Filtered air, Non-corrosive / Non-flammable gas
  • Power Supply Voltage: 12~24V DC ± 10%, Ripple (P-P) ≤ 10%
  • Current Consumption: ≤ 30mA (with no load)
  • Response Time: ≤2.5 ms (Chattering-proof function
  • Output Short Circuit Protection: Yes
  • Display: 4 digital 7 segment LCD display (Red/Green/Orange) (Sampling rate
  • Indicator Accuracy: ± 1% F.S ± 1 digit (Ambient temperature
  • Switch on Indicator: Orange Indicator 1
  • Port size: F1
  • Lead wire: Ø4 Oil-resistance Cable (PVC) -26 AWG (0.15 mm2)- 4 cores
  • Weight (with 2 meter lead wire): Apporax.67 g
